200KN-50KN Uv Resistance High Strength Weaving High Toughness PET Woven Geotextile
Product Description:

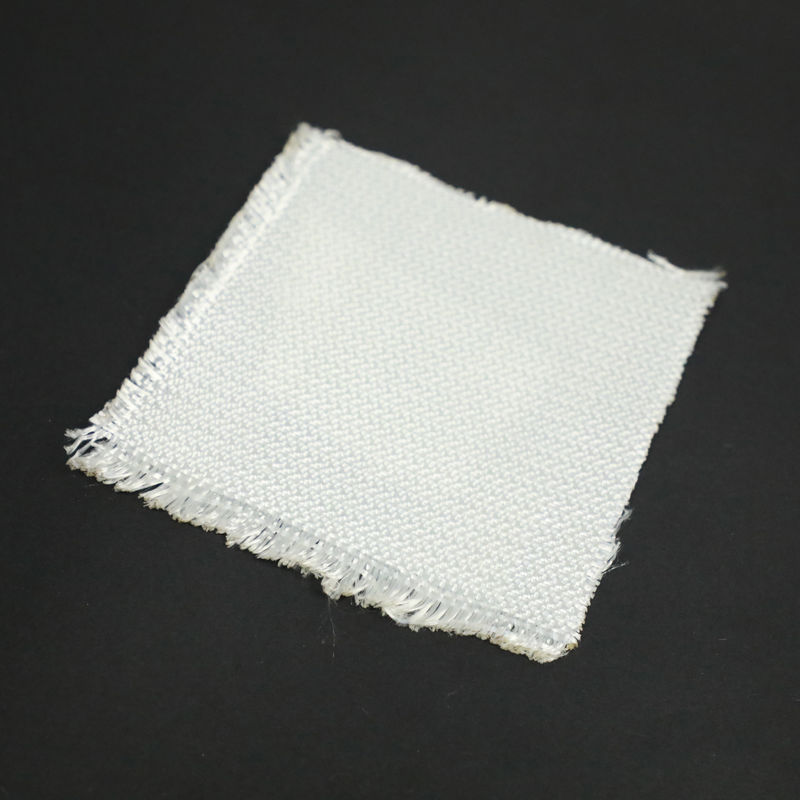

Filament woven geotextile:it is made of high strength polypropylene, polyester, nylon or mixed them together, all of which keep the original strength. They were wovened together to forn the pilotaxitic textured, which can keep certain structure and improve the original strength.
Specification:
Nominal breaking strength in MD: 35,50,65,80,100, 120, 140, 160, 180, 200,250:
Property:
1.High strength ; low deformation.
2. Durability: steady property, not easy to resolved, airslaked and keep the original property long term.
3. Anti-erosion: anti-acid, anti-alkali, resist insects and mould.
4. Permeability: the woven geotextile can control the sieve size to retain permeability.
Application:

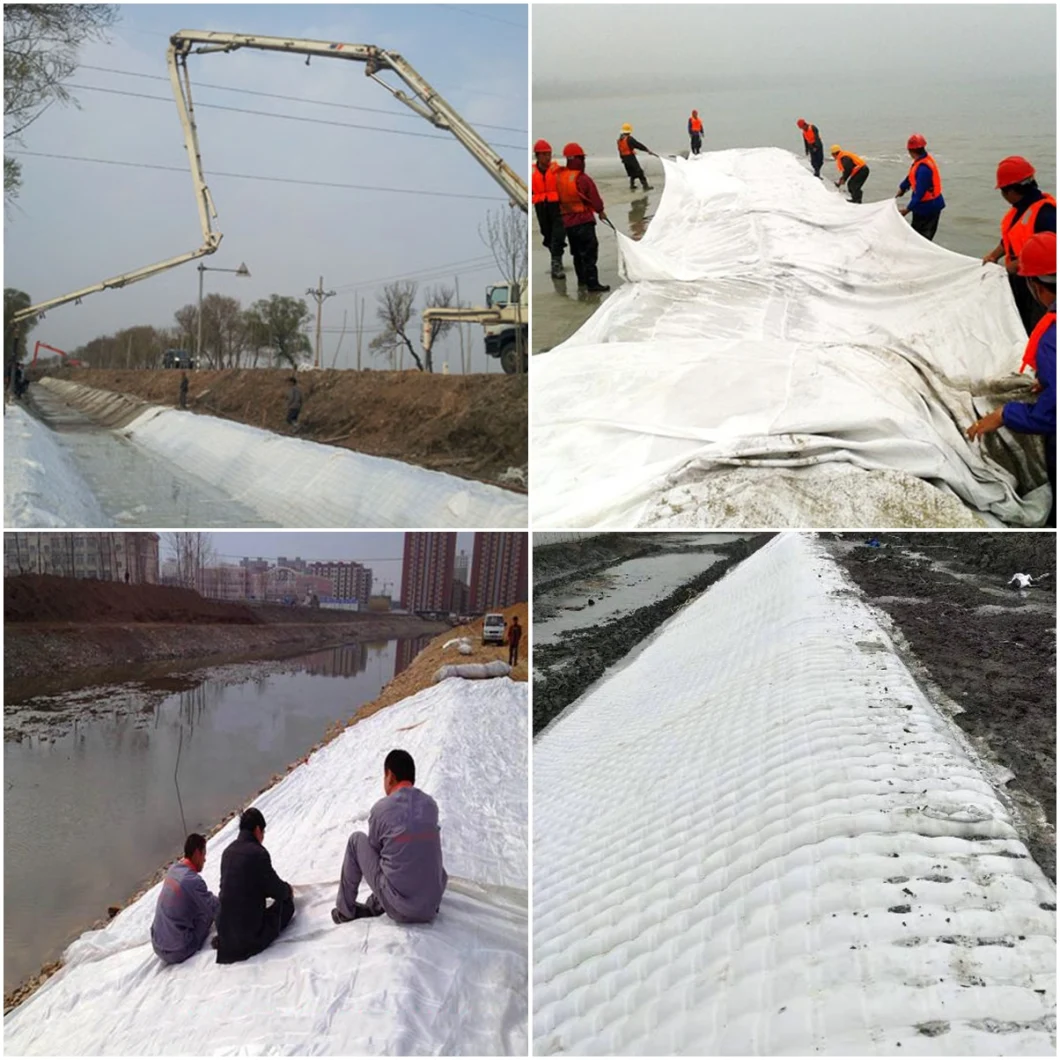

It is widely used in river , coast ,harbour, highway ,railway, wharf, tunnel, bridge and other geotechnical engineering. The woven geotextile is a invaluable product and can be separation, reinforcement , protection and other.
Product Paraments:
| Woven geotextile | |||||||||||
| item | Specification | ||||||||||
| 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | |
| Vertical Breaking strength(KN/M≥) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| horizontal Breaking strength(KN/M≥) | 24.5 | 35 | 45.5 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 175 |
| Elongation corresponding to standard breaking strength(%) | 30-35 | ||||||||||
| CBR Bursting strength(KN≥) | 2.00 | 4.00 | 6.00 | 8.00 | 10.50 | 13.00 | 15.50 | 18.00 | 20.50 | 23.00 | 28.00 |
| Equivalent aperture(mm) | 0.05-0.50 | ||||||||||
| Vertical permeability coefficient(cm/s) | k*(0.00001-0.01) Ps: k=1.0-9.9 | ||||||||||
| Width deviation rate(%) | -1 | ||||||||||
| Length and width deviation rate(%) | ±2 | ||||||||||
| Weight deviation per unit area(%) | -5 | ||||||||||
Advantage:
1). High strength: Due to use of PP, PE plastic flat silk, so it can keep sufficient strength and elongation in wet state.
2). Corrosion resistance: Can be a long time corrosion resistance in different pH soil and water.
3). Permeability is good: There are gaps in the flat wire, so it has good air permeability and porous.
4). Good microbial resistance: On microbial, moth eaten are not damaged.
5). Convenient construction: As the material is light and soft, so transporting, laying, construction is convenient.
6). High breaking strength: Up to 20KN/m or more, good creep resistance, corrosion resistance.
7). Anti UV resistance of oxygen: Has good function of anti UV and oxidation resistance.
Application:
It is mainly used for the grassgreenhouse on the ground, drainage, keep the floor clean, the ground marks or other product as a reference.
Apply to prevent grass, landscaping, water conservancy, dam, highway, airport, construction, environmental engineering, land reclamation, and can rise the function of a filter, drainage, isolation, protection, reinforcement
1. Filament woven geotextile as the reinforcement in the backfilling of the retaining wall, or used for anchoring the retaining wall panel.
