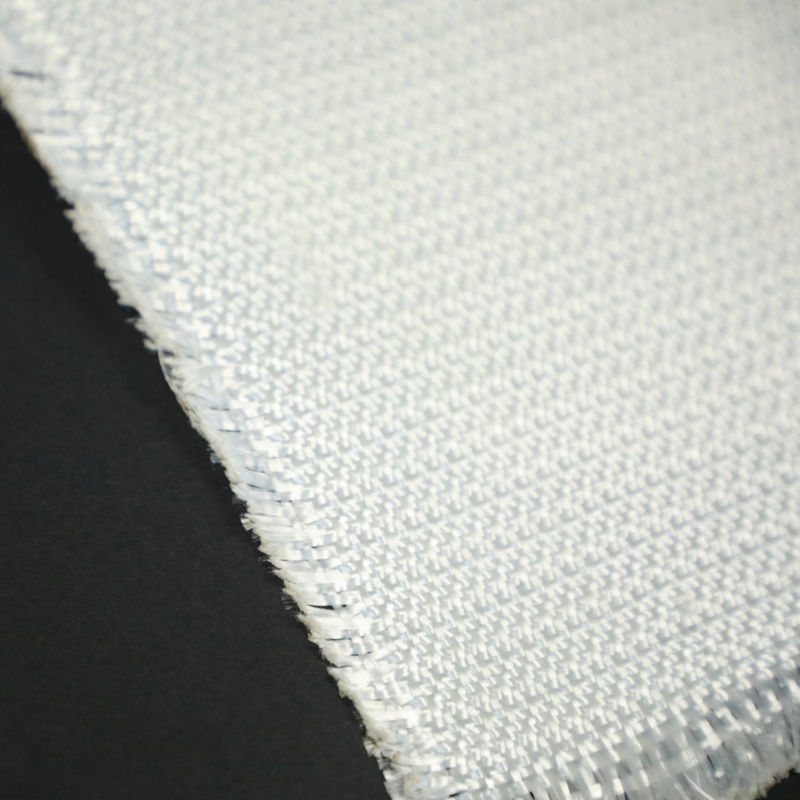

Woven Geofabric Woven Geotextile With Tensile Strength Up To 2000 KN/M
Product Description:

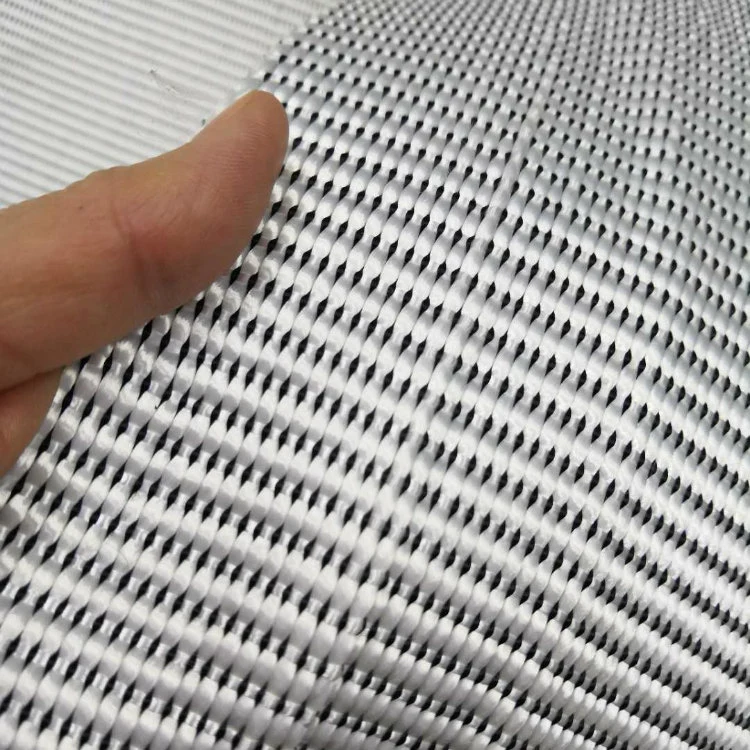

Woven Geotextile are precisely manufactured with tested and examined high tenacity, low elongation synthetic fibers, i.e.PE and PP filaments. It is state leveled product with special processing and structures. It has extraordinary speciality against abrasion, punctuation and erosion. It can be conveniently used for protecting water ways: such as river, canal, strait, gorges, channel and drainage. It can also be used for water reservoirs, ponds, gulf, harbour, soft soil treatment, etc. It is a new technology in constructing civil engineering and water conservation.
Property of High strength industrial synthetic fiber :
I. High strength, low deformation
2. Durability: Steady property, not easy to resolved, air slaked and can keep the original property
Long term
3. Anti-erosion: Anti-acid, anti-alkali, resists insects and mould
4. Permeability: Could control the sieve size to retain certain permeability
Application of High strength industrial synthetic fiber:
It is widely used in river, coast, harbor, highway, railway, wharf, tunnel, bridge and other geotechni-
Cal engineering. It could meet all kinds of geotechnical projects needs such as filtration, separa-
Tion, reinforcement, protection and so on.
Production standard of High strength industrial synthetic fiber:
GB/T17640-2008
JT/T514-2004
Product Paraments:
| Woven geotextile | |||||||||||
| item | Specification | ||||||||||
| 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | |
| Vertical Breaking strength(KN/M≥) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 |
| horizontal Breaking strength(KN/M≥) | 24.5 | 35 | 45.5 | 56 | 70 | 84 | 98 | 112 | 126 | 140 | 175 |
| Elongation corresponding to standard breaking strength(%) | 30-35 | ||||||||||
| CBR Bursting strength(KN≥) | 2.00 | 4.00 | 6.00 | 8.00 | 10.50 | 13.00 | 15.50 | 18.00 | 20.50 | 23.00 | 28.00 |
| Equivalent aperture(mm) | 0.05-0.50 | ||||||||||
| Vertical permeability coefficient(cm/s) | k*(0.00001-0.01) Ps: k=1.0-9.9 | ||||||||||
| Width deviation rate(%) | -1 | ||||||||||
| Length and width deviation rate(%) | ±2 | ||||||||||
| Weight deviation per unit area(%) | -5 | ||||||||||
Application:
PET Woven Geotextiles is manufactured from high tenacity polyester (PET) yarns and designed for landfill
liner reinforcement, embankment over soft soil, reinforced soil slope, road and railway construction, the
foundation of marine structures, port facilities, reservoir, waste and chemical management, peninsula
shoal engineering, etc.
Properties:
1. High tensile strength, the maximum can be up to 1400KN/m.
2. Low elongation
3. Corrosion resisitance
4. Permeation of water
5. Easy to store and transport
6. Durability
