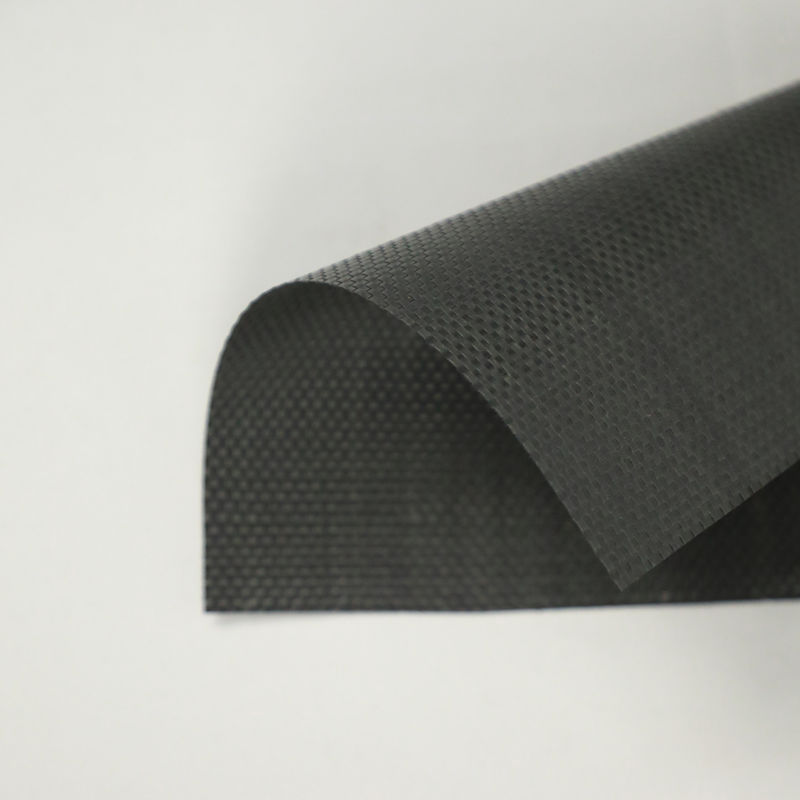

Custom Nonwoven Geotextile Filter Fabric PP Polypropylene Soil Fabric For French Drain

Custom Nonwoven Geotextile Filter Fabric PP Polypropylene Soil Fabric For French Drain

Custom nonwoven geotextile filter fabric

Polypropylene nonwoven geotextile filter fabric

polypropylene soil fabric for french drain

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
100% PP Polypropylene Woven Fabric Geotextiles Drainage Filter Fabric
Project Solution Capability:
Total Solution For Projects
After-sale Service:
Online Technical Support
High Density
Woven Geotextiles
Product Description

100% PP Polypropylene Woven Fabric Geotextiles Drainage Filter Fabric


Product Description:

Weed barrier cloth/weed control fabric
Regarding to our weed control landscape fabric, It can not only prevent the weed from growing,but also promote the roots growing by keeping the moisture and cool of the soil.Made from UV-treated polypropylence,the cost-effective weed control fabric allows the free flow of air ,water and nutrients to the soil ,meanwhile it can block sunlight and weeds. The chemical-free method can stop weed growing throughtout the year.
Anti-UV design
Used for path,patios,timber floor,block paving,softscape.
Advantages: 1. Chemical-free
2.Control weed effectively
3.Allow the air ,water and nutrients to reach the soil and the plants roots
4.good stabproof performance
5.Easy to install
6.Raise output and quality of crops


Product Paraments:

Woven geotextile
item Specification
20-15 30-22 40-28 50-35 60-42 80-56 100-70
Vertical Breaking strength(KN/M≥) 20 30 40 50 60 80 100
horizontal Breaking strength(KN/M≥) 15 22 28 35 42 50 70
vertical Elongation at break(%) 28
CBR Bursting strength(KN) 1.6 2.4 3.2 4 4.8 6 7.5
Vertical permeability coefficient(cm/s) 0.0001-0.01
Unit area weight(g/㎡) 120 160 200 240 280 340 400
Deviation rate(%) ±10


1: Ground Cover is also called anti grass cloth, weed control fabric, anti weed mat, weed barrier, ground cover fabric and pp woven fabric.Our weed barrier fabric, also a geotextile fabric, features premium material and a solid structure to withstand various weather conditions for long-lasting use, effectively inhibit weed or grass growth, and avoid direct sunlight. It is a great helper to thrive your plants and reduce soil erosion.


Installation method of weed control mat
1. Soil fixation method: easy to save money
2. Fixing method of plastic floor nails: generally use 16cm long floor nails, one between 1-1.5m
3. Fixing method of U-shaped steel nails:High cost, U-shaped steel nails are only made of carbon steel. The outside of the U-shaped steel nails is cold galvanized to ensure its service life, However, the price of this steel nail is too high, so it is often used in combination with plastic floor nails. The U-shaped nails are used on the outside of the grass proof cloth, and plastic floor nails are used in the middle. This ensures the problem of fixing the grass proof cloth, The second is to solve the problem of hanging the straw proof cloth when the plastic floor nail is pulled out.

Applications2: Silt fence, a temporary linear filter structure for efficient erosion control, is composed of premium geotextile fabric supported by wire mesh fence and metal posts, and sorts of accessories. Used as a vertical permeable interceptor, it is designed to greatly trap and allow settlement of soil particles from sediment-laden water or limit the transport of eroded soil from the construction site by water runoff which will cause serious damage to water and soil.

Being lightweight, durable erosion, easy to install and remove, silt fence has a wide application in various areas. It is typically used along streams and channels, around environmentally sensitive areas, at the bottom of highly erodible slopes, on the construction sites, etc. to control the sediment and protect the environment.

We can mainly offer fabric, wire mesh, steel stakes and prefabricated wire backed fabric which is a kit form for your convenience. You can choose silt fences according to your own requirements and applications.


Applications3: Composite Geotextile, also known as geotextile, is a water permeable geosynthetic material made of synthetic fibers through acupuncture or weaving. Composite geotextile is one of the new geosynthetics, which is widely used in geotechnical engineering such as water conservancy, electric power, coal mines, highways, and railways.
