Geosynthetics Material Non Woven Geotextile Fabric PET

Geosynthetics Material Non Woven Geotextile Fabric PET

geosynthetics non woven geotextile fabric

PET non woven geotextile fabric

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geotextile

Contact Us

Request A Quote
Product Details
Material:
PET
Weight:
200-800GSM
Usage:
Insulation, Waterproof, Water Filter
Certification:
ISO9001 ISO14001 BV
Feature:
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Standard:
ASTM GM13
Product Description



geosynthetics material non woven geotextile highway paving road construction land fill project

Product Description

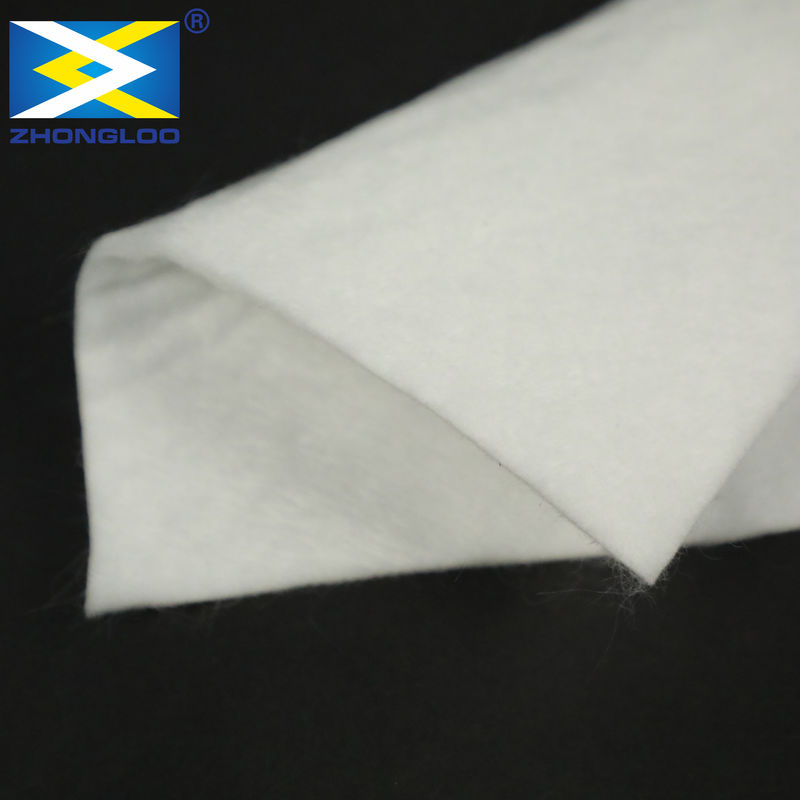

Polyester Filament Needle Punched Geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with highter strength fabric . so Nonwoven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Polyester Filament Needle Punched Geotextile sed to separate,filter,reinforce, protect or drain.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.

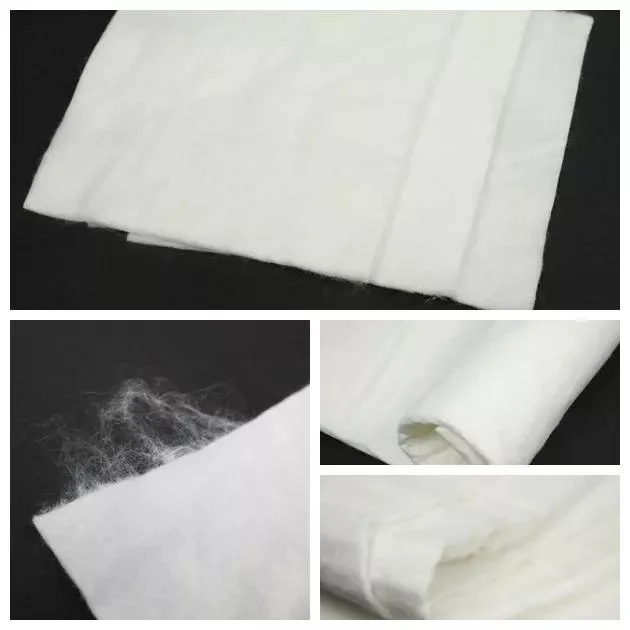

Detailed Photos



Geosynthetics Material Non Woven Geotextile Highway Paving Road Constrution Land Fill Project
1)anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
2) High temperature resistance to up to 230ºC maintaining structure stability and original physical properties.
3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.

Product Parameters



Non-woven Geotextile Technical Parameter (GB standard)
Item
unit
Standard Specification
100
150
200
250
300
350
400
450
Thickness≥
mm
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
width Deciation
%
0.5
Breaking strength
KN/M
2.50
4.50
6.50
8.00
9.50
11.00
12.50
14.00
Breaking Elongation
%
25-100
Weight Tolerance
g/m²
-8
-8
-8
-8
-7
-7
-7
-7
CBR Tear Strength≥
KN
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
Tear Strength≥
KN
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
Vertical Permeability
N/5cm
Kx(10-¹-10-³)
EOS 090
mm
0.07-0.2

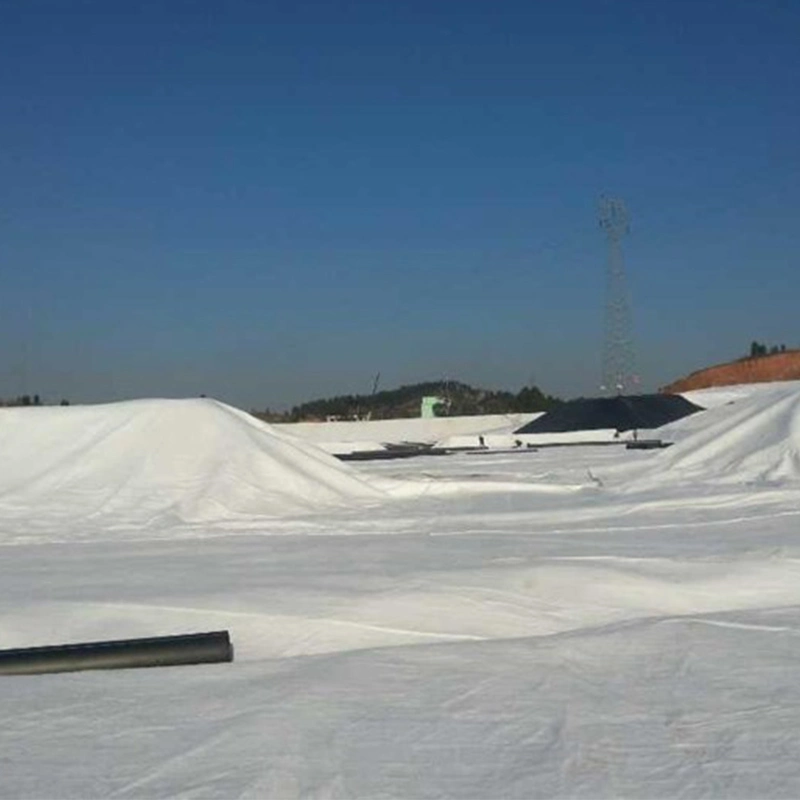

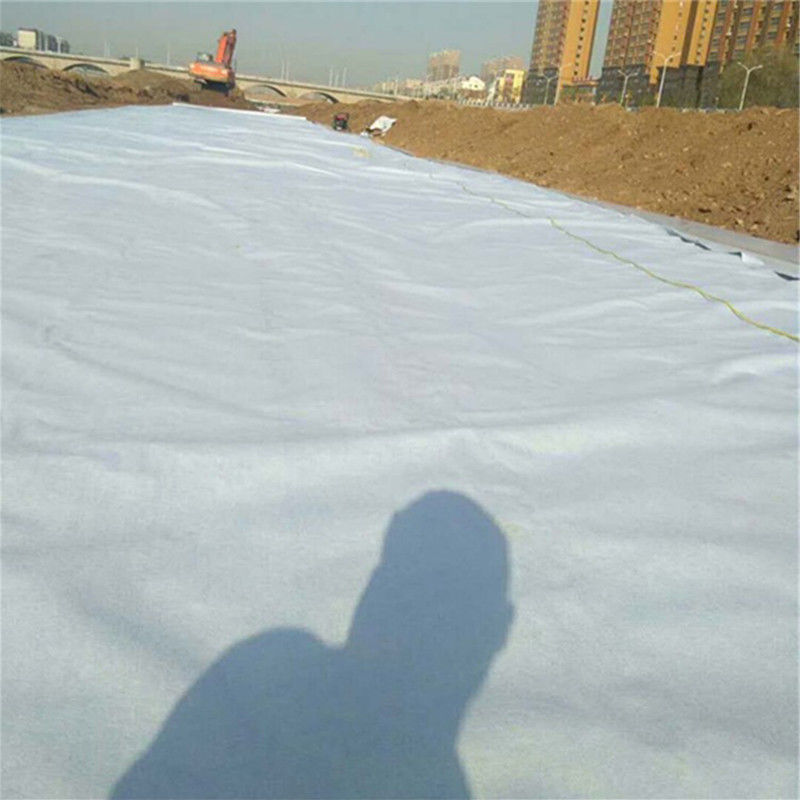

Product Application

Applications of Geotextiles
1. Drainage
Geotextiles will efficiently collect surplus water from structures, such as rainwater or surplus water, from the soil and
discharge it.
2. Filtration
Our geotextiles provide superior hydraulic flow and soil retention, which makes them well suited for filtration in subsurface
drainage applications and under hard armour systems.

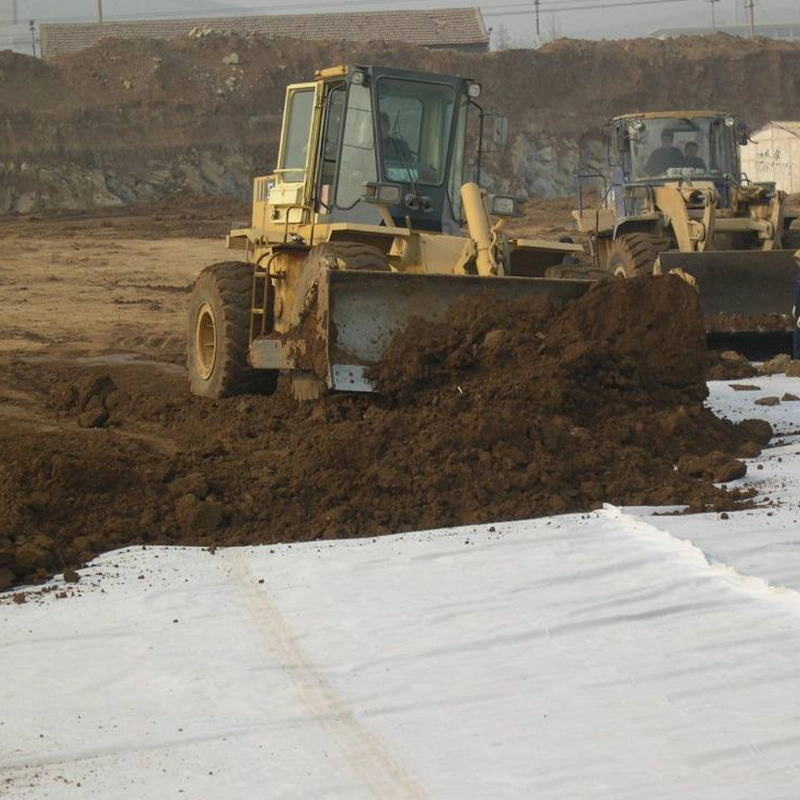

3. Separation
Geotextiles are used for paved and unpaved roads, where ground conditions have been compromised. As a separation layer,geotextiles can aid preventing the intermixing of dissimilar materials, add to the performance life of the road and reduce the overall thickness of the road section by requiring less aggregate during construction.
4. Reinforcement
High strength geotextiles can be used to reinforce earth structures as the strength of the tape or filament within the fabric
maybe increased to suit a specific application. Thanks to their high tensile strength they are an ideal reinforcement solution.
5. Protection
Due to the consistent thickness and weight of our Geotextiles, they provide adequate cushioning and protection for critical lining systems.

Geosynthetics Material Non Woven Geotextile Highway Paving Road Constrution Land Fill Project
Geosynthetics Material Non Woven Geotextile Highway Paving Road Constrution Land Fill Project
