Corrosion Resistant Geotube Dewatering Bags Environmental Dredging Remediation

Corrosion Resistant Geotube Dewatering Bags Environmental Dredging Remediation

environmental dredging remediation geotube dewatering bags

Corrosion Resistant geotube dewatering bags

geotextile dewatering tubes Polypropylene

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geotube

Contact Us

Request A Quote
Product Details
Application:
Reinforcement, Filtration, Etc
Usage:
Insulation, Waterproof, Water Filter
Project Solution Capability::
Cross Categories Consolidation
Function:
Filtration ,Separation,Drainage, Reinforcement
Type::
Geotube, Woven Knitted
Geotube, Woven Knitted:
White Black Gray Green Orange Red
Weight:
150gsm-1000gsm
Material::
PP
Product Description

Geotube is made from high strength polypropylene bag, can also use woven cloth material, choose the product material according to the project actual demand; Common black; Adjusted according to different specifications of products commonly used material 400 gsm; Unlimited length, the width can be multiple image splicing unlimited width, but directly affect the dehydration tube bag material intensity range is wider requirements material strength is higher; Basic order fill height for two-thirds of the diameter of the tube bag; According to the construction site of the grouting machine diameter custom, can according to actual situation or adding medicament (increased solidification speed accelerate spate separation).





Geotubes have different levels of strength and permeability, high UV resistance and durability such as sea water and microbial erosion.

It can be applied to many water conservancy and ocean engineering, such as: bank protection, breakwater, wave breakwater, river surge regulation, tubular containment structure, etc.

At the same time, it is used in the dehydration treatment of industrial waste, sludge treatment, coal mine and agricultural waste.
Corrosion Resistant Geotube Dewatering Bags Environmental Dredging Remediation 0
Product Technical Parameter
Geotextile tube for Coastal protection & Dewatering
Item

Test Standard
Unit
Technical Data
Material



Polypropylene With Black or Sand Color
Spec



HT50
HT70
HT90
HT105
HT120
HT200
Tensile Strength
MD
ASTM D4595
KN/M
50
70
90
105
120
200
CD
ASTM D4595
KN/M
50
95
120
105
120
200
Elongation
MD/CD
ASTM D4595
%
10,11,12,13,15
Opening Size O90
mm
0.05-0.90 or Customized
Length
m
20,30,50,100m
Circumference
m
5-20m



Application

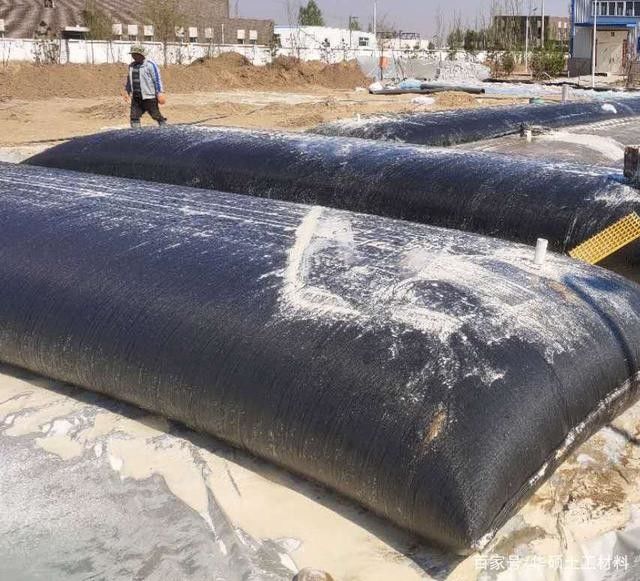

Sludge Treatment
The volume of sludge can be reduced by more than 90%, and it contains a higher proportion of solid content, making it easier to remove and process.

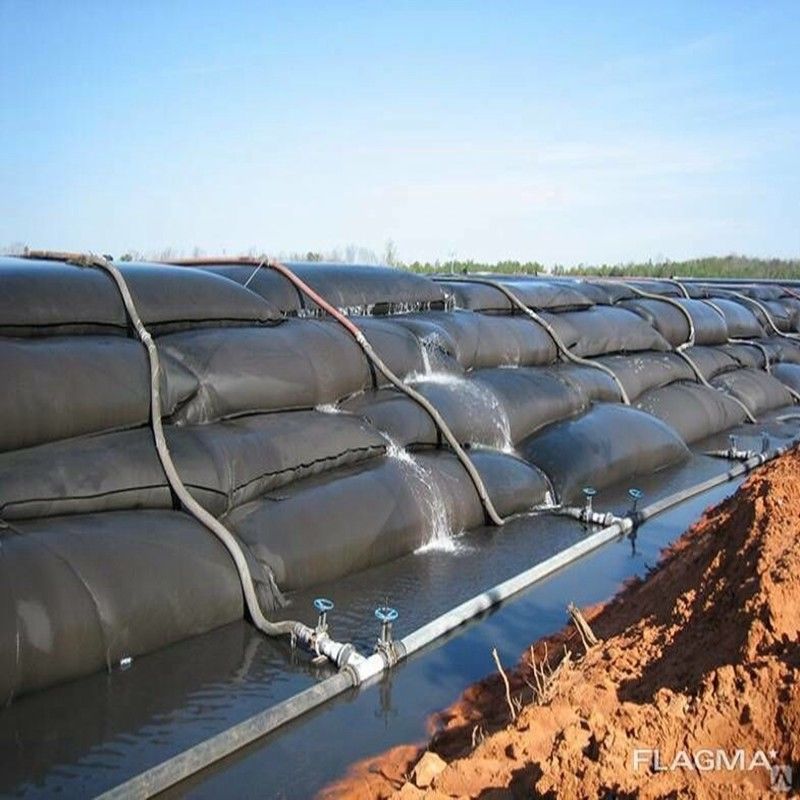

Revetment, Breakwater
The embankment core filling geotechnical pipe bag breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the geotechnical pipe bag with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requiremenrs of the breakwater.


Ecological Restoration
Geotube bag dewatering technology can dehydrate the bottom mud gathered in river, bays seaports, wharves, ports and docks to project the environment.


Light Industry, Agriculture and Aquaculture
Geotube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process, and intercepts more than 90% of the suspended soild particles. It is an ideal choice

Corrosion Resistant Geotube Dewatering Bags Environmental Dredging Remediation 1
Functions of Geotube
Filtration & Separation & Erosion protection & Drainage & Dehydration

Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
