4000g 4500g Geosynthetic Clay Liner GCL Dam Liner Landfill Waterproof

4000g 4500g Geosynthetic Clay Liner GCL Dam Liner Landfill Waterproof

Waterproof GCL Dam Liner

4500g Geosynthetic Clay Liner

Landfill Geosynthetic Clay Liners

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
GCL
Length:
30m~50m/roll
Width:
2m-7m
Material:
Geotextile+bentonite+non Woven Fabric
Keyword:
Geosynthetic Clay Liner
Application:
Landfill, Dam, Municipal
Product Description

4000g 4500g Geosynthetic clay liner GCL dam liner landfill waterproof



Product Description

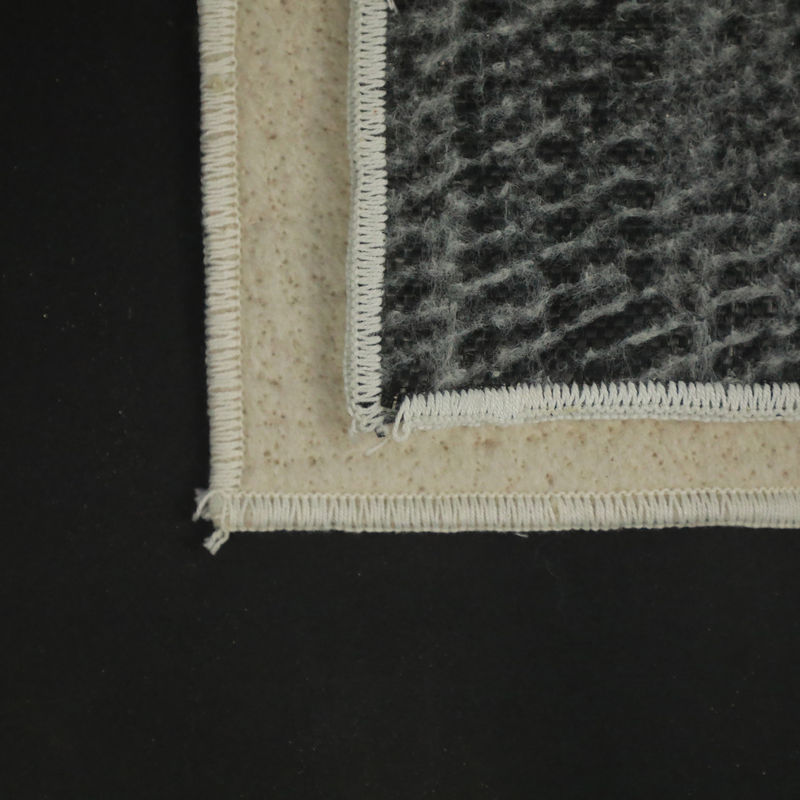

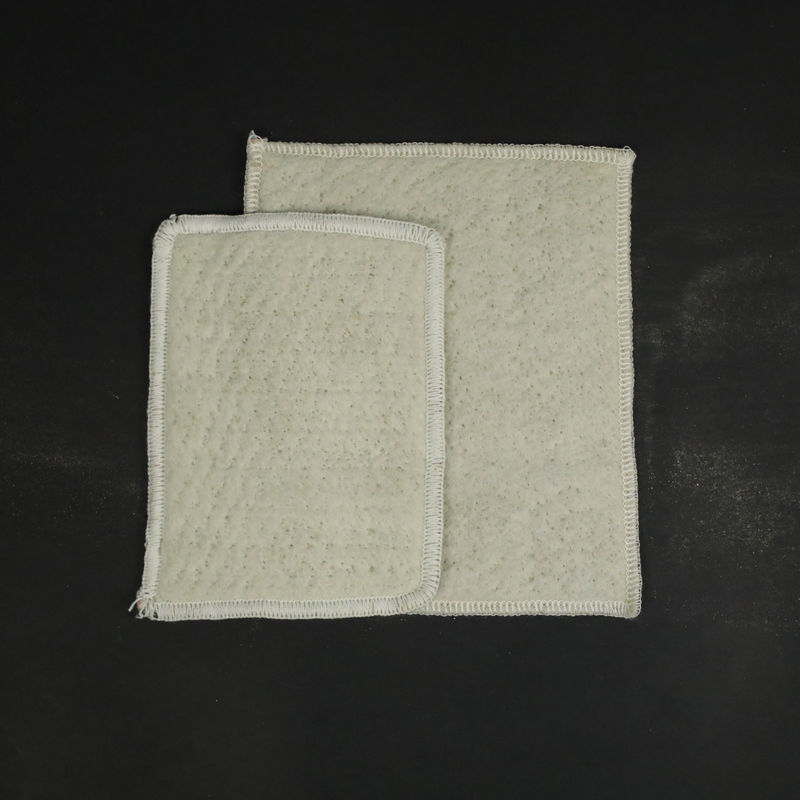

Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemicals yard.



Technical parameter



Projects/ Technical data Specifications
GCL-NP GCL-OF GCL-AH
Weight per unit area(g/m2) ≥4000g/m2
Bentonie swell index(ml/2g) ≥24 ≥24 ≥24
Ethylene blue absorption(g/100g) ≥30 ≥30 ≥30
Tensile strength (N/100mm) ≥600 ≥700 ≥600
Racking strength(N/100mm)
(for nonwovwn and woven fabric)
≥40 ≥40 -
Racking strength(N/100mm)
(for HDPE films and nonwoven fabric)
  ≥30 -
Permeability(m/s) ≤5.0x110^(-11) ≤5.0x110^(-11)
Anti-static water pressure

0.4Mpa,1h,

not seepage

0.6Mpa,1h,not seepage
Filtration loss (ml) ≤18 ≤18 ≤18
Bentonite durability (ml/2g) ≥20 ≥20 ≥20



Function

1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency
