Reinforced Geotextile Bentonite Geosynthetic Clay Liner 4000GSM 6000GSM

Reinforced Geotextile Bentonite Geosynthetic Clay Liner 4000GSM 6000GSM

Reinforced Geotextile Bentonite Clay Liner

Geotextile GCL Clay Liner

Landfill Geosynthetic Clay Liner

Place of Origin:


Brand Name:




Model Number:

Geosynthetic clay liner

Contact Us

Request A Quote
Product Details
Model NO.:
Tensile Strength:
600n/100mm Min
Natural Sodium, Geotextile, HDPE Membrane
Swelling Index:
24ml/2g Min
Landfill, Dam, Municipal
Product Description

4000GSM 6000GSM Reinforced Geotextile Bentonite Geosynthetic Clay Liner


Product Description

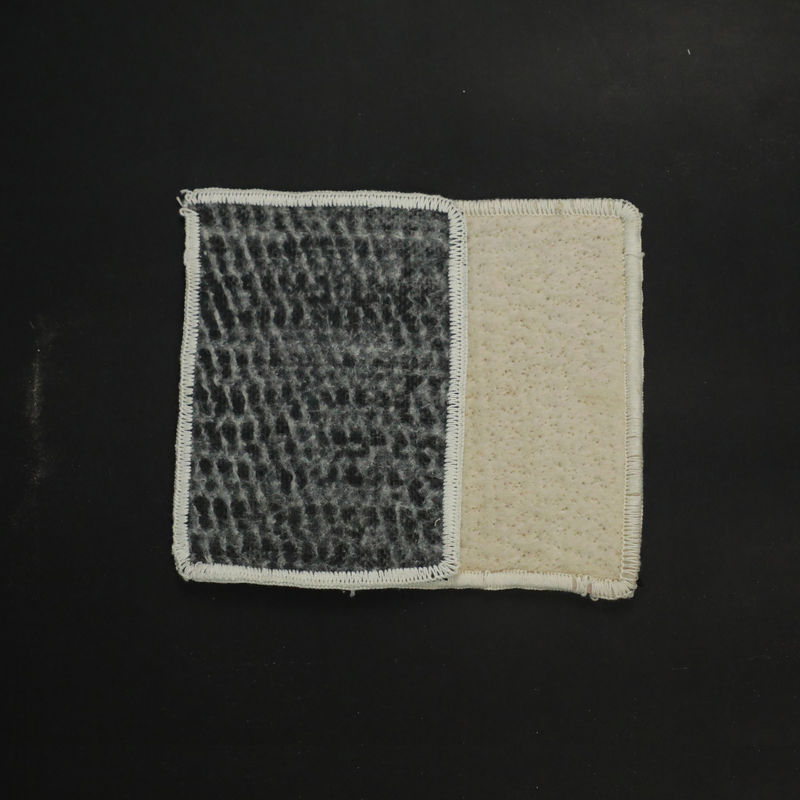

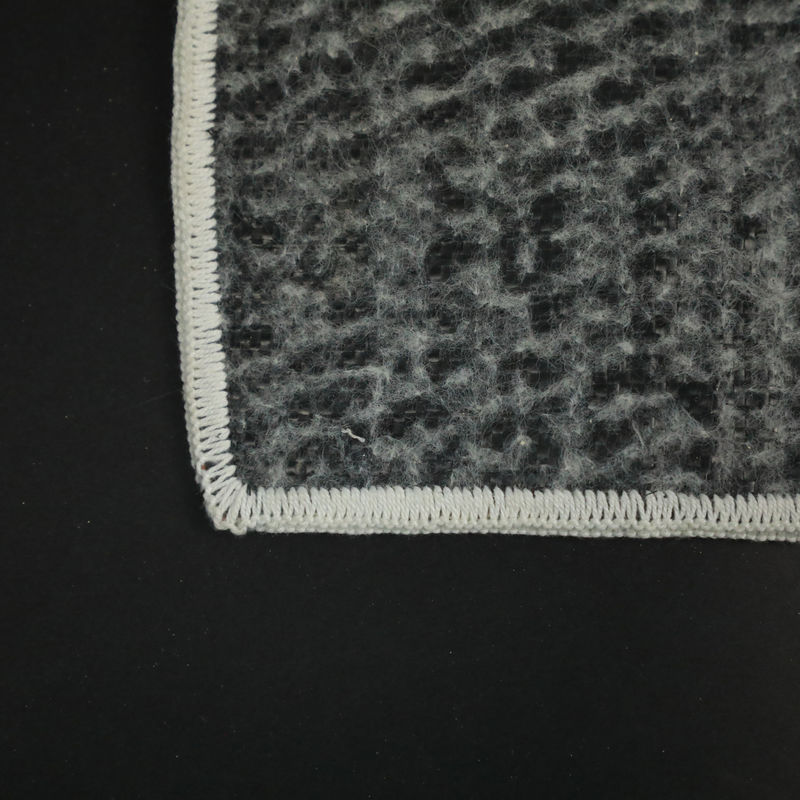

The GCL is punched together with non-woven geotextile, woven geotextile and bentonite. Width of the geosynthetic clay liners can be up to 6m and length of 60m. The middle level is bentonite grains, which are carefully selected crude and filled in between the two levels after special processing. The bentonite grain in GCL made by this method does not flow in a fixed direction. It distributes evenly and forms waterproof layer, owning excellent waterproof effect. This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects. GCL can be applied separately, or combined with high density polyethylene (HDPE).


Technical parameter


Projects/ Technical data Specifications
Weight per unit area(g/m2) ≥4000g/m2
Bentonie swell index(ml/2g) ≥24 ≥24 ≥24
Ethylene blue absorption(g/100g) ≥30 ≥30 ≥30
Tensile strength (N/100mm) ≥600 ≥700 ≥600
Racking strength(N/100mm)
(for nonwovwn and woven fabric)
≥40 ≥40 -
Racking strength(N/100mm)
(for HDPE films and nonwoven fabric)
  ≥30 -
Permeability(m/s) ≤5.0x110^(-11) ≤5.0x110^(-11)
Anti-static water pressure


not seepage

0.6Mpa,1h,not seepage
Filtration loss (ml) ≤18 ≤18 ≤18
Bentonite durability (ml/2g) ≥20 ≥20 ≥20



1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency
