Fabric Gcl Geosynthetic Bentonite Clay Liner Anti Seepage

Fabric Gcl Geosynthetic Bentonite Clay Liner Anti Seepage

Fabric Geosynthetic Bentonite Clay Liner

Gcl Geosynthetic Bentonite Clay Liner

Anti Seepage GCL Clay Liner

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Geosynthetic clay liner

Contact Us

Request A Quote
Product Details
Roll Length:
10m~100m
Specification:
5.8m*30m
Material:
Fabric+Bentonite
Design Style:
Modern
Tensile Strength, N/100mm (Portrait):
≥600
Application:
Outdoor
Product Description

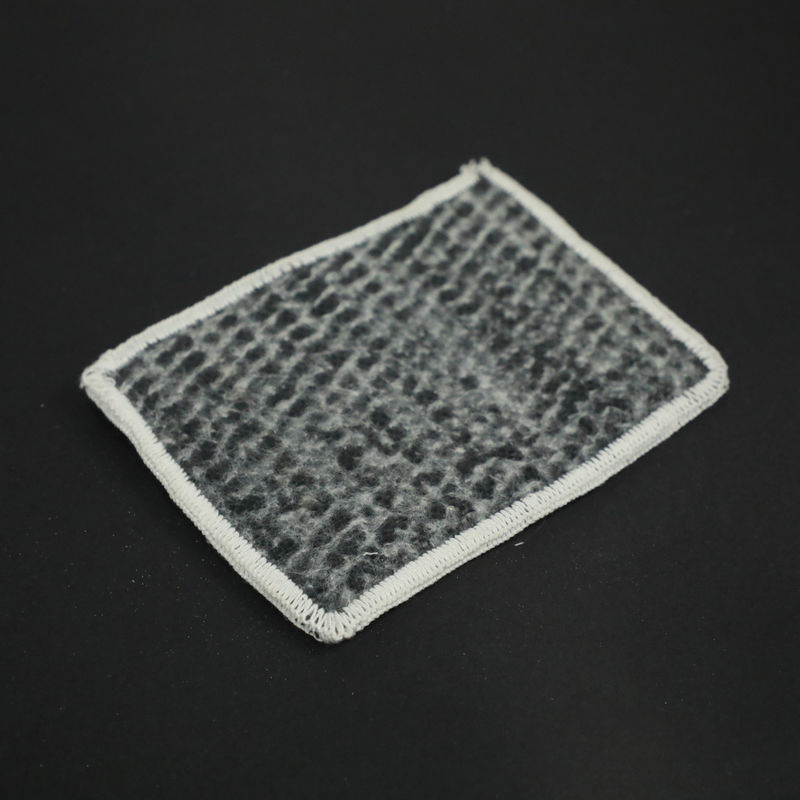

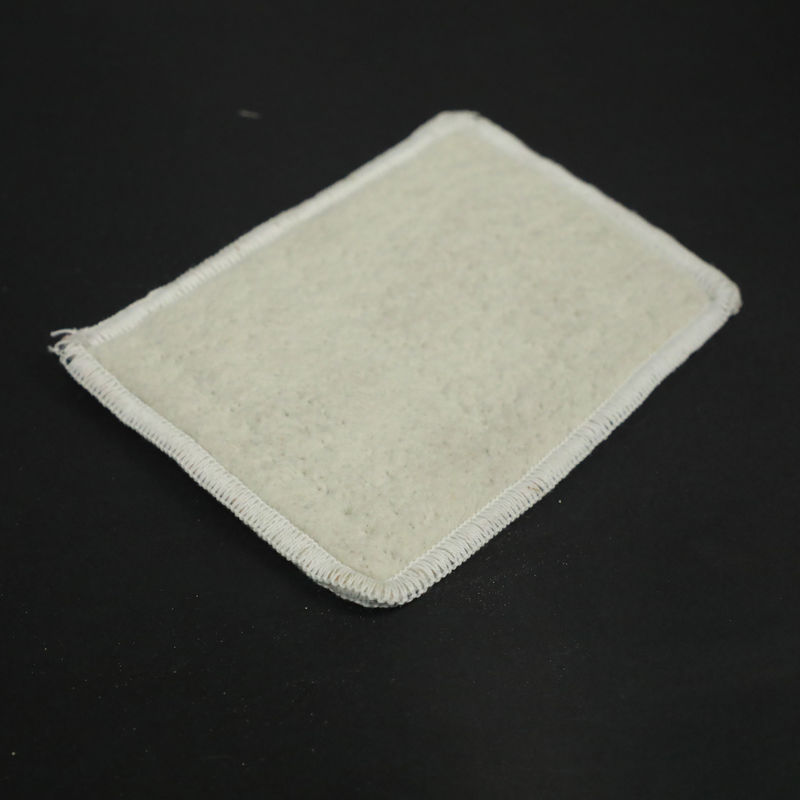

Anti-Seepage Gcl Geosynthetic Bentonite Clay Liner



Product Description

Geosynthetic Clay Liners is suitable for seepage prevention and waterproof treatment of structures with water storage characteristics such as artificial lakes, reservoirs, large swimming pools, fish farms, channels, garbage disposal yards, etc. Our bentonite clay liner is also applicable to high pressures in buildings, such as basements and tunnels, and impervious and waterproof constructions of buildings in areas with large temperature differences, like seepage prevention, sealing and isolation of subways, pools, and diversion channels.



Technical parameter



Projects/ Technical data Specifications
GCL-NP GCL-OF GCL-AH
Weight per unit area(g/m2) ≥4000g/m2
Bentonie swell index(ml/2g) ≥24 ≥24 ≥24
Ethylene blue absorption(g/100g) ≥30 ≥30 ≥30
Tensile strength (N/100mm) ≥600 ≥700 ≥600
Racking strength(N/100mm)
(for nonwovwn and woven fabric)
≥40 ≥40 -
Racking strength(N/100mm)
(for HDPE films and nonwoven fabric)
  ≥30 -
Permeability(m/s) ≤5.0x110^(-11) ≤5.0x110^(-11)
Anti-static water pressure

0.4Mpa,1h,

not seepage

0.6Mpa,1h,not seepage
Filtration loss (ml) ≤18 ≤18 ≤18
Bentonite durability (ml/2g) ≥20 ≥20 ≥20



Function

1. Compactness
2. Permanent waterproof performance
3. Easy construction
4. Not affected by temperature
5. Integration of waterproof materials and objects
6. Green and environmentally friendly
