Stabilization PP Geotextile Geogrid Woven Fabric For Soil Reinforcement Product

Stabilization PP Geotextile Geogrid Woven Fabric For Soil Reinforcement Product

100gsm Woven Geotextile Fabric

Stabilization PP Geotextile Geogrid

Soil Reinforcement Geotextile Geogrid

Place of Origin:

China

Brand Name:

OEM

Certification:

ISO certificate

Model Number:

geotextile

Contact Us

Request A Quote
Product Details
Advantage:
High Density
Kind:
Woven Geotextile
Specification:
100gsm 150gsm 200gsm 250gsm 300gsm 800gsm
Feature:
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Certificate:
ISO9001:2008
Transport Package:
Packed In Roll With PP Woven Bag
Product Description



Product Description

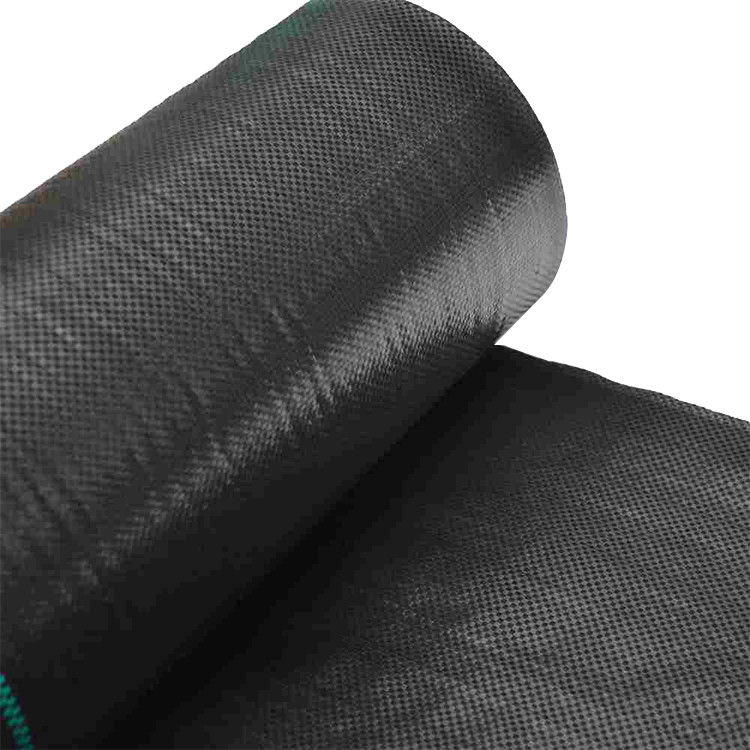

Woven geotextiles are made by weaving prestressed,slitfirm polypropylene tapes into simple weave pattern.
Woven Geotextiles are used for subgrad stabilization requiring considerable strength , This product is economical , providing the high strength required for a very low cost . The Woven Geotextile fabric that is created has a high strength to weight ratio that resists UV rays ,soil chemicals, mildew,and insects. Slit-film woven geotextiles are excellent separators and help to speed erection for road building projects and embankment construction. This product is ideal for road building because it increases the life of paved and unpaved areas. Woven Geotextiles are primarily used for separation ,reinforcement,and filtration .
Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement
Product Characteristics
1) high strength, due to the use of plastic flat, in the dry state can maintain adequate strength and elongation
(2) corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) anti-microbial resistance of microorganisms, insects are not compromised.
(5) to facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.
Advantages:

1.Reinforcement: Used in the constructions of highway, railway, airport, dam, prevent slope dike, retaining wall, etc. to improve stability.

2.Protection: To prevent the bank from eroding by wind, wave ,tidal and rain. Used for the projects such as revetment, slope protection and bottom protection, anti-soil erosion,etc.

3.Filtration: Used as filtering layer of dike, the dam, river and coast stone , slope, retaining wall to prevent sand grain through and allow freedom through of air or water.

Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement
Products Datasheet

Woven Geotextile
item
Specification
20-15
30-22
40-28
50-35
60-42
80-56
100-70
Vertical Breaking strength(KN/M≥)
20
30
40
50
60
80
100
horizontal Breaking strength(KN/M≥)
15
22
28
35
42
50
70
vertical Elongation at break(%)
28
CBR Bursting strength(KN)
1.6
2.4
3.2
4
4.8
6
7.5
Vertical permeability coefficient(cm/s)
0.0001-0.01
Unit area weight(g/m2)
120
160
200
240
280
340
400
Deviation rate(%)
±10

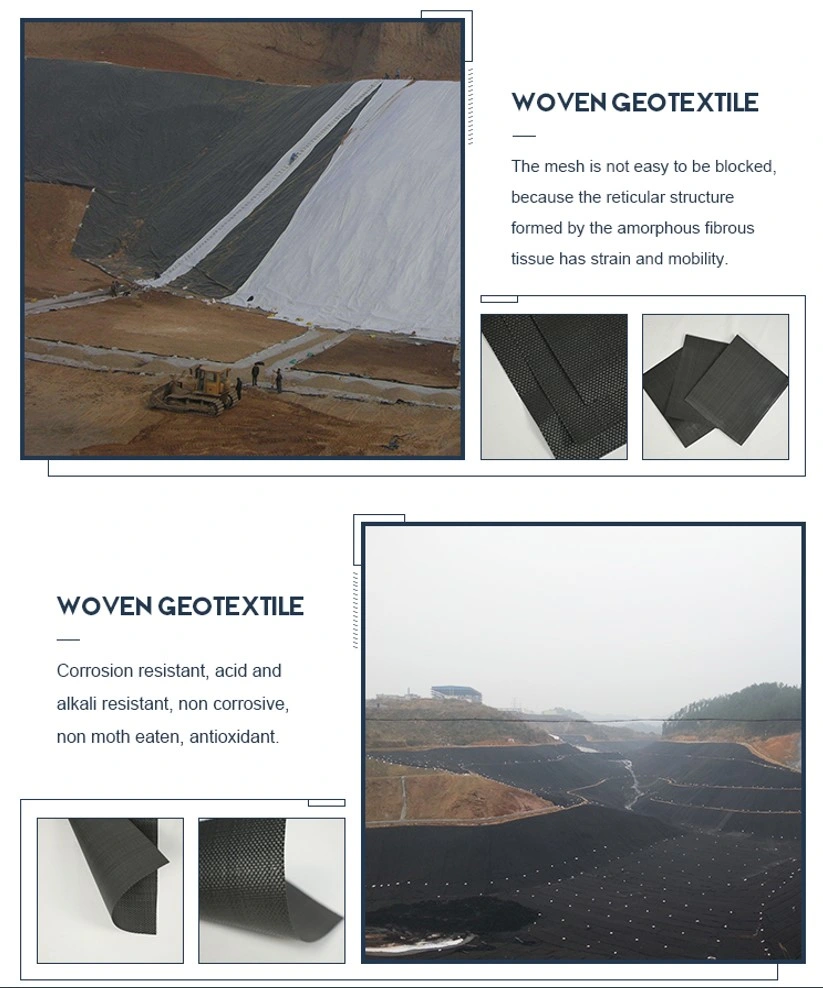

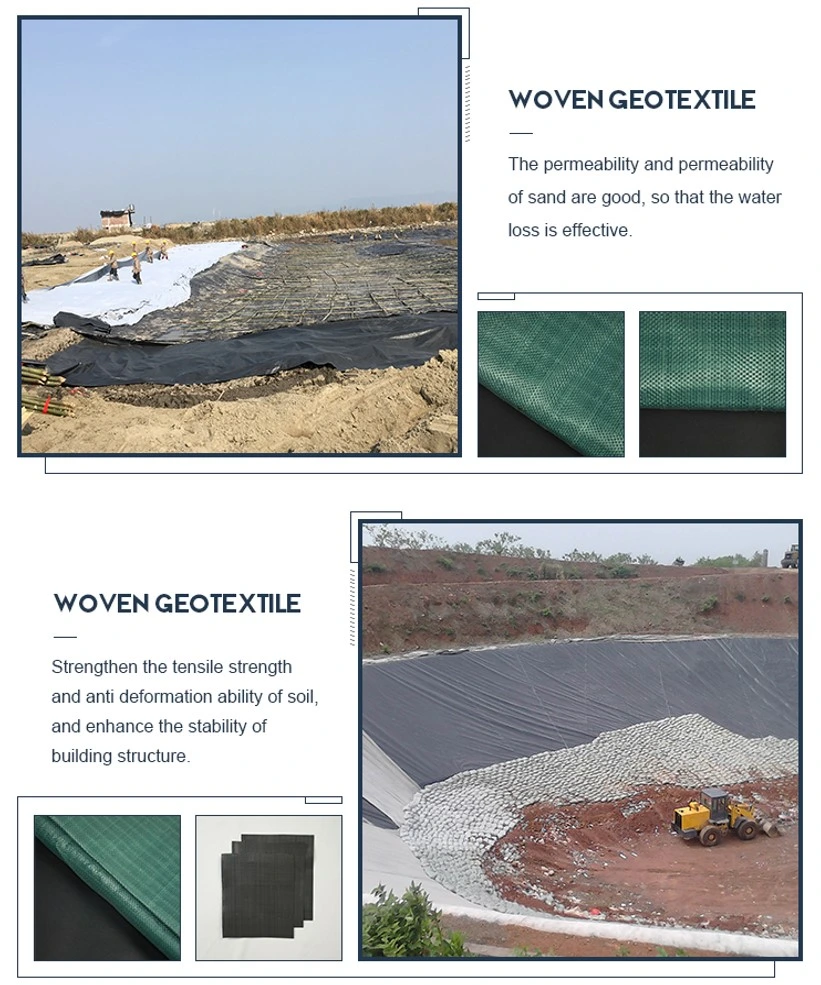

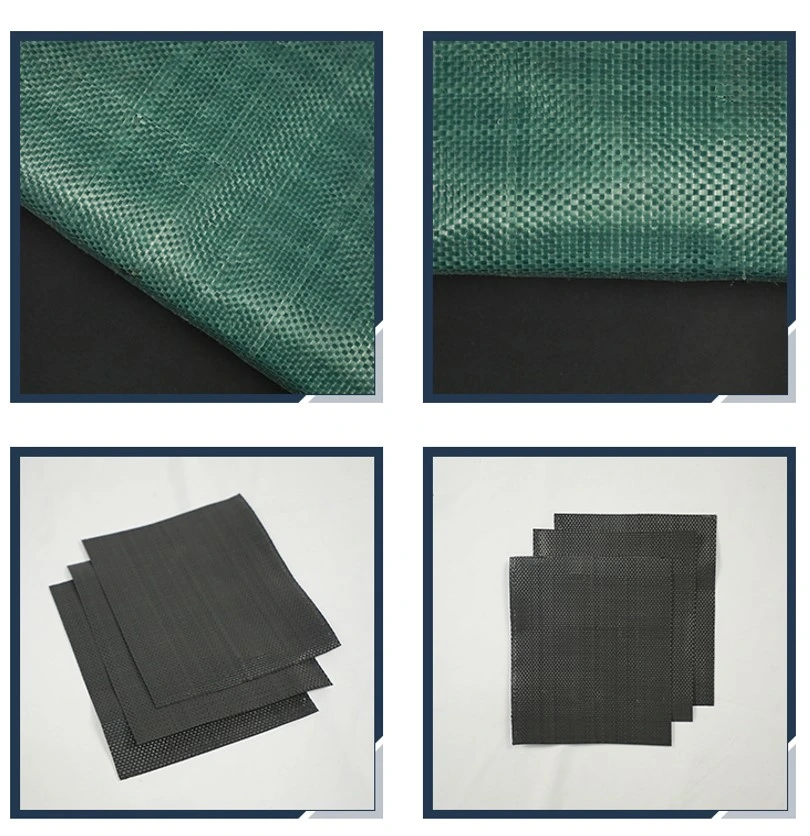

Products Display:

100% Virgin Material: 100% virgin exclusivefomulation material, make the bag No Smell Good Strength, Bright Color.

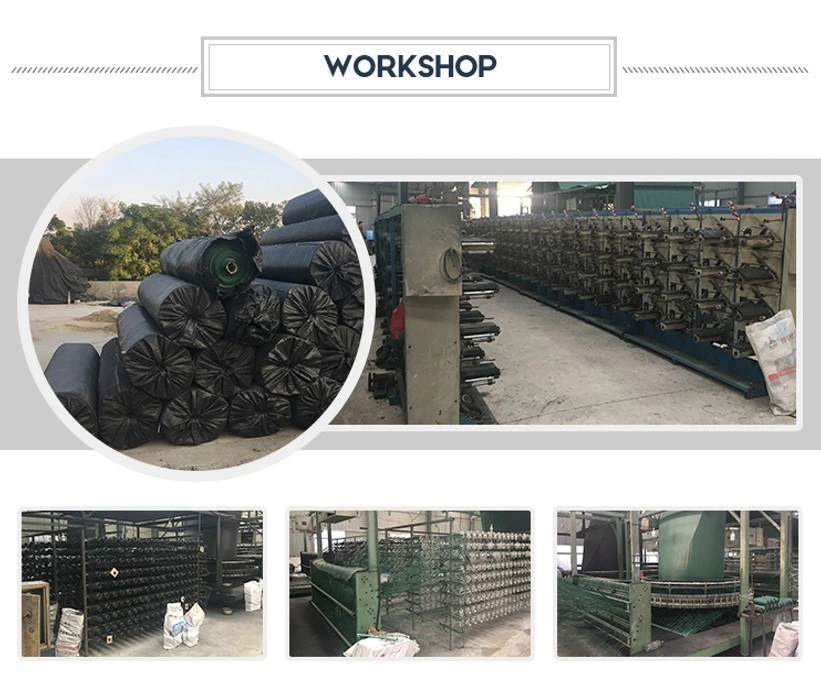

Advanced equipment and excellent weaving technology, making fabric with high-density, good toughness and strength.
Available width 1m to 8m Ultrasonic cutting. more neat and smooth. Anti-uv to the processing development, in order to increase the service life of the product. Mechanical packaging, professional and neatly.

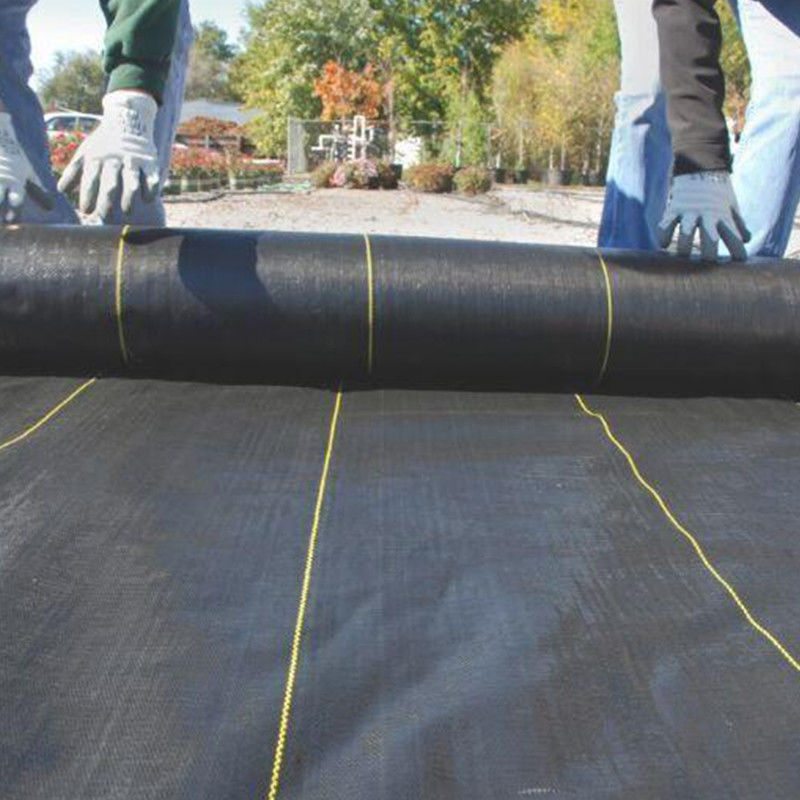

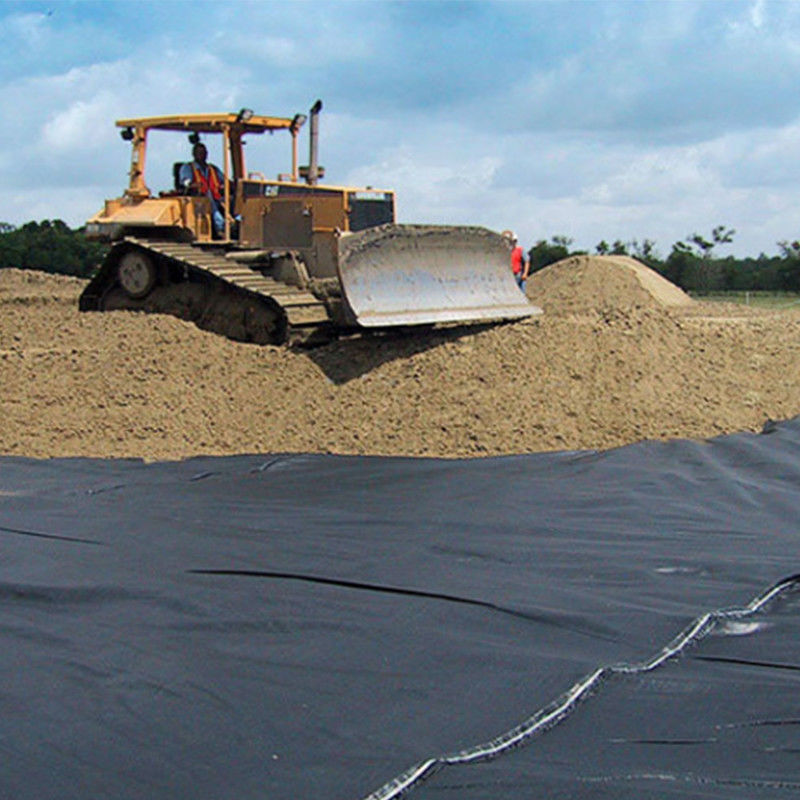

Products Application
It can be widely used in railway, highway, sports hall, dams, hydraulic construction, tunnel, coastal beach, land reclamation,environmental protection and other projects, can play a filtration, drainage, separation, protection, reinforcement effect
Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement

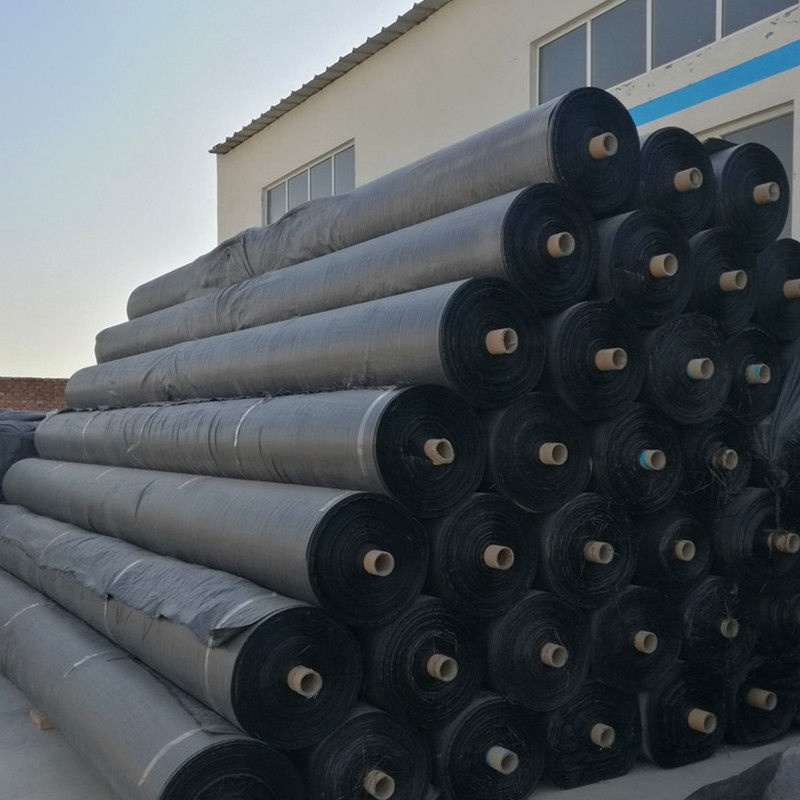

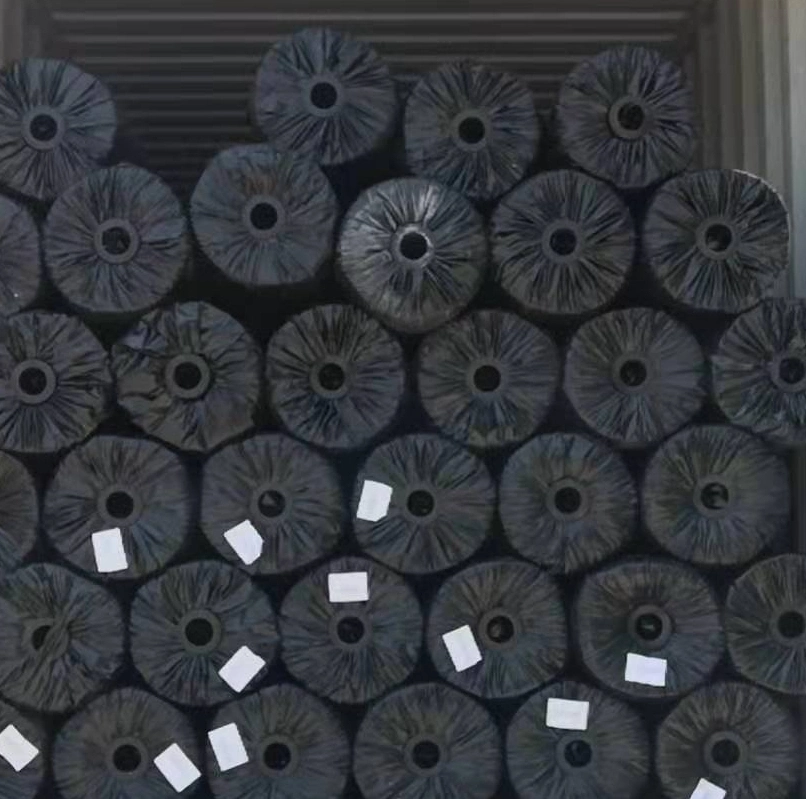

Packing &Shipping

Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement
Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement

Certified Woven Fabric Stabilization PP Woven Geotextile for Soil Reinforcement


FAQ:

Q: Can you send samples?

A: Yes, we are very happy to provide you with free samples to check the quality of our products.

Q: Are you a manufacturer or a trading company?
A: Manufacturer, with are registered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, nonwoven geotextile, woven geotextile, geogrid and other products. So we have the competitive price with best quality.

Q: Can you produce the product according to customers' requirements?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.

Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit.

Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
