High Strength PP Polypropylene Nonwoven Geotextile Fabric

High Strength PP Polypropylene Nonwoven Geotextile Fabric

High Strength Nonwoven Geotextile Fabric

PP Geotextile Drainage Fabric

PP Polypropylene Geotextile Fabric

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO,SGS

Model Number:

geotextile

Contact Us

Request A Quote
Product Details
Product Description

Product Description

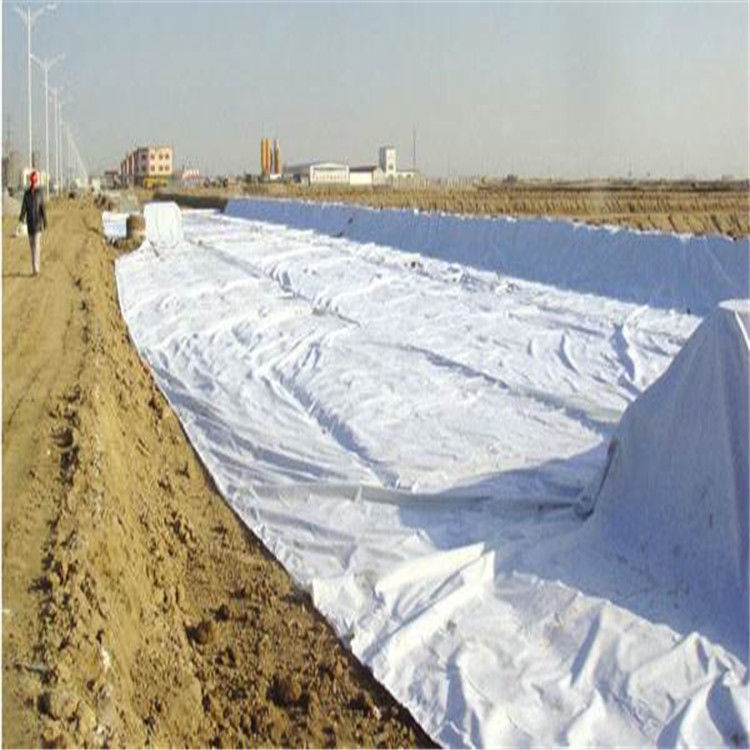

Our nonwoven geotextiles are mechanically bonded continuous filament nonwovens made from 100% UV stabilized polypropylene. They have been used for decades as separation, protection and filtration elements in a large number of applications, adding years to the life of any roadway, railroad, landfill or civil / environmental engineering project. They are robust and long lasting. The manufacturing method (a continuous process with endless filaments) guarantees the use of high-quality raw materials.



High Strength PP Polypropylene Nonwoven Geotextile Fabric 0


Function:

1.Geotextile has good air and water permeability to let water flow through it so as to effectively control sandrock running-down.

2.Geotextile has good water transmissibility, it can form drainage channels inside soil mass to drain redundant liquid and air out of the soil mass.

3.Geotextile helps to enhance the soil mass' tensile strength and non-deformability and structural stability so as to improve soil mass quality.


Features:

1.It can effectively make the concentrated stress diffuse, transfer or decompound, and prevent the soil mass against the destruction of outside force.

2.It can prevent the mixture of sandstone, soil mass and concrete of upper and lower layers.

3.Its mesh is hard to jam by virtue of the compliancy and motility of the reticulation formed by indefinite form fibrous tissue.

4.High water permeability-it can keep good water permeability even in the pressure of soil and water.

5.Corrosion resistant-it is made from polypropylene fiber or terylene or other chemical fiber, featuring resistance to acid and alkali and oxidation, non-corroding, no worm-eaten.

6.Easy construction-low weight, easy operation, simple construction



Product Parameters

Non-woven Geotextile Technical Parameter (GB standard)
Item
unit
Standard Specification
100
150
200
250
300
350
400
450
Thickness≥
mm
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
width Deciation
%
0.5
Breaking strength
KN/M
2.50
4.50
6.50
8.00
9.50
11.00
12.50
14.00
Breaking Elongation
%
25-100
Weight Tolerance
g/m²
-8
-8
-8
-8
-7
-7
-7
-7
CBR Tear Strength≥
KN
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
Tear Strength≥
KN
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
Vertical Permeability
N/5cm
Kx(10-¹-10-³)
EOS 090
mm
0.07-0.2





High Strength PP Polypropylene Nonwoven Geotextile Fabric 1
