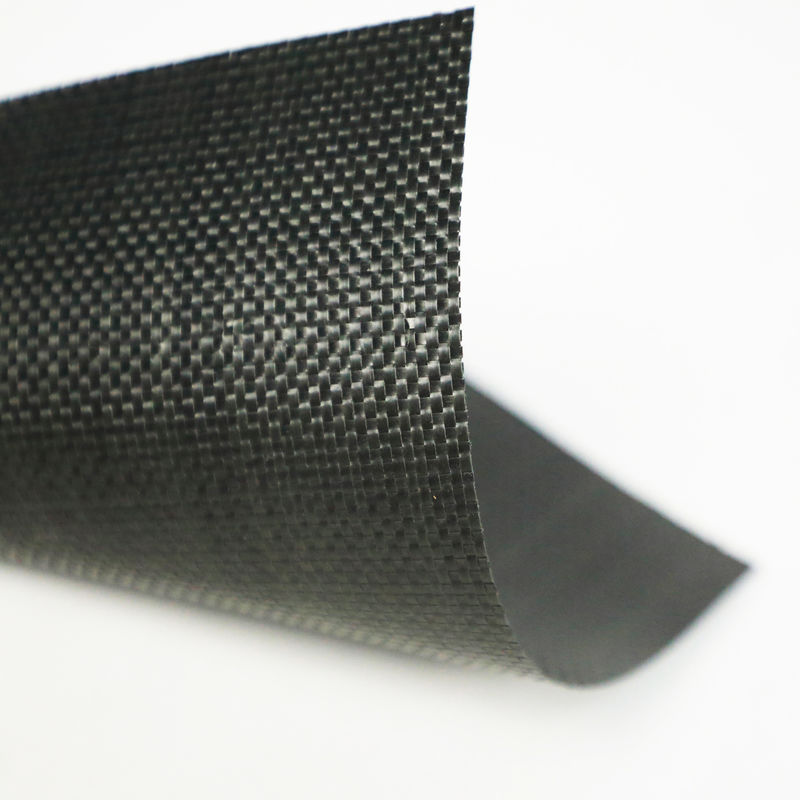

PP woven geotextile for road construction
Product Description

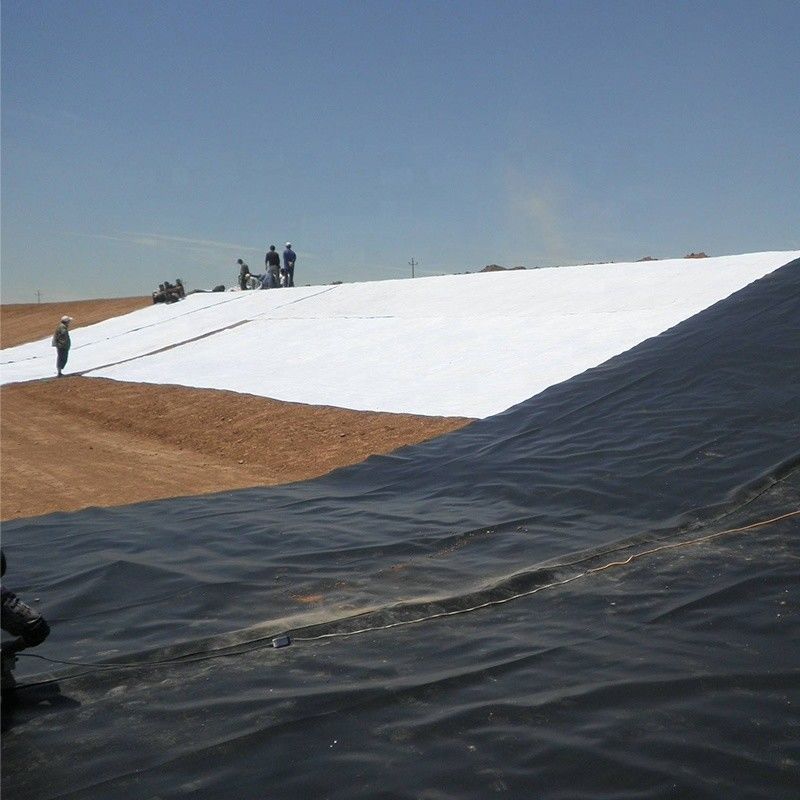

PP Woven Geotextile is made of virgin polypropylene fibers. polypropylene woven geotextile is woven and blended by parallel yarns (or tape yarn) with different weaving machines and technologies to weave the warps and wefts into textile-shape with various thickness and compactness according to different applications. pp woven geotextile is highly in strength. woven geotextile is relatively light in weight, strong tensile strength, smaller elongation as well as brilliant stability. It is widely used in roads,pavements, railroads, structures and water conservancy project.
Technical parameter
non-woven geotextile | |||||||
item | Specification | ||||||
20-15 | 30-22 | 40-28 | 50-35 | 60-42 | 80-56 | 100-70 | |
Vertical Breaking strength(KN/M≥) | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
horizontal Breaking strength(KN/M≥) | 15 | 22 | 28 | 35 | 42 | 50 | 70 |
vertical Elongation at break(%) | 28 | ||||||
CBR Bursting strength(KN) | 1.6 | 2.4 | 3.2 | 4 | 4.8 | 6 | 7.5 |
Vertical permeability coefficient(cm/s) | 0.0001-0.01 | ||||||
Unit area weight(g/㎡) | 120 | 160 | 200 | 240 | 280 | 340 | 400 |
Deviation rate(%) | ±10 | ||||||
