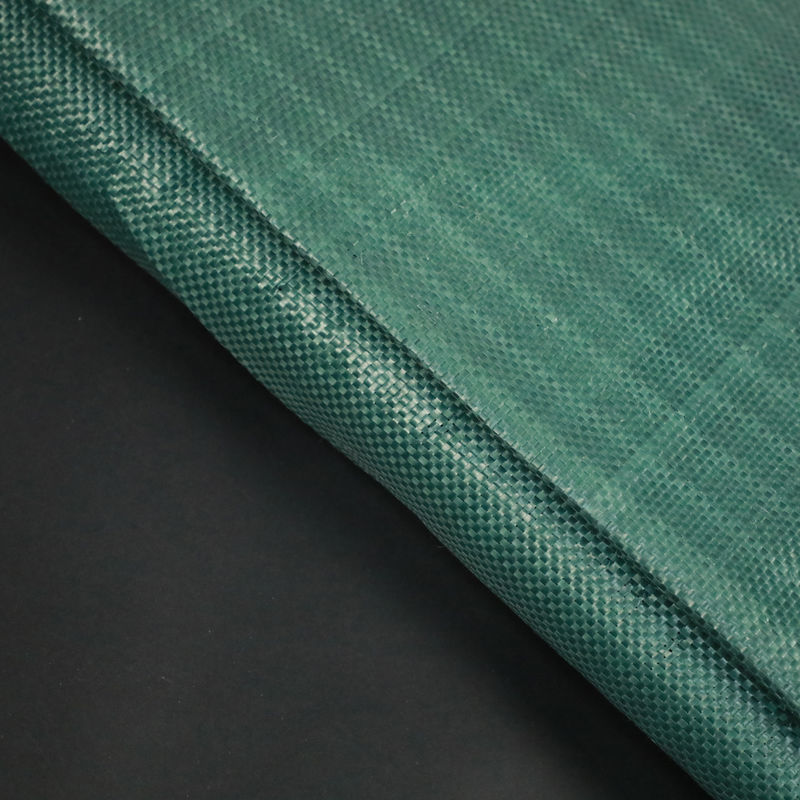

Polypropylene Geotextile Drainage Fabric Woven Waterproof Geotextile Bag Fabric

Polypropylene Geotextile Drainage Fabric Woven Waterproof Geotextile Bag Fabric

Roads Geotextile Drainage Fabric

Waterproof Geotextile Bag Fabric

Woven Geotextile Bag Fabric

Place of Origin:

China

Brand Name:

zhongloo

Contact Us

Request A Quote
Product Details
Model Number:
Woven Geotextile
Color:
White Black
Application:
Roads
Weight:
40-200g/m2
Material:
Polypropylene
Warranty:
3 Year
Product Description

Geotextile Woven Waterproof Geotextile Bag Geotextile Fabric



Product Description

Woven Geotextiles are woven from durable, high-modulus polypropylene yarns into competent, robust, dimensionally stable geotextiles. These geotextiles are available in varying tensile strengths and hydraulic properties to suit particular project demands.


Woven Geotextiles are often used for separation and stabilization in the construction of roads. The woven geotextile’s separation action prevents the mixing of dissimilar soils allowing each soil layer in the road structure to function as intended.This is done by imparting stability through the tension membrane effect into the road section reducing rutting and extending roadway life.



Technical parameter

non-woven geotextile
item
Specification
20-15
30-22
40-28
50-35
60-42
80-56
100-70
Vertical Breaking strength(KN/M≥)
20
30
40
50
60
80
100
horizontal Breaking strength(KN/M≥)
15
22
28
35
42
50
70
vertical Elongation at break(%)
28
CBR Bursting strength(KN)
1.6
2.4
3.2
4
4.8
6
7.5
Vertical permeability coefficient(cm/s)
0.0001-0.01
Unit area weight(g/㎡)
120
160
200
240
280
340
400
Deviation rate(%)
±10
