Bentonite Gcl Clay Liner Bentonite Blanket Waterproof Blanket

Bentonite Gcl Clay Liner Bentonite Blanket Waterproof Blanket

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

FST

Contact Us

Request A Quote
Product Details
Model Number:
ZL-FST
Product Name:
Bentonite Geosynthetic Clay Liner
Usage:
Waterproof Projects
Material Of First Layer:
Staple Nonwoven Geotextile
Material Of Middle Layer:
Sodium Bentonite
Material Of Under Layer:
PP Woven Geotextile
Product Description

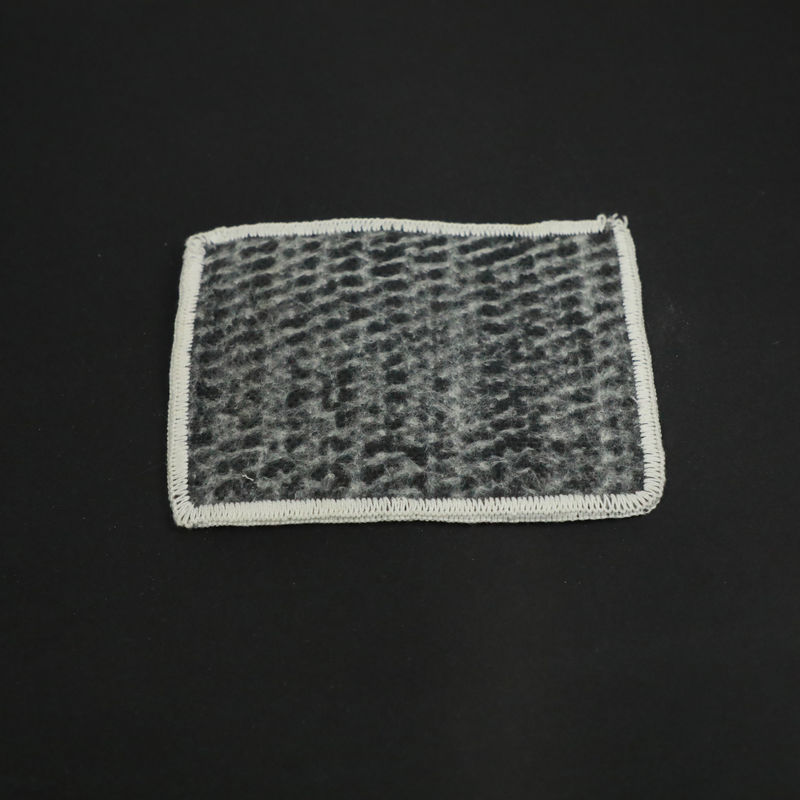

Bentonite Gcl Clay Liner Bentonite Blanket Waterproof Blanket

Product Description

GCLs are high performance environmental liners comprised of a layer of lowpermeability  sodium bentonite combined with geosynthetic carriers, such as woven and/or nonwoven  geotextiles, and in some cases polymer geomembranes. GCLs have been proven to provide  better engineered performance and durability than several feet of compacted clay with a total composite thickness of less than one quarter of an inch.





Technical Data:


No.

Item

Value





GCL-NP

Standard

1

GCL swell index, mL/2g

≥24

JG/T 193-2006

2

Methylene blue index, g/100g

≥30

JG/T 193-2006

3

Tensile strength, N/100mm

≥600

JG/T 193-2006

4

Elongation at break, %

≥10

JG/T 193-2006

5

Peel strength between non-woven geotextile and woven geotextile, N/100mm

≥40

JG/T 193-2006

6

Water permeability, m/s

≤5.0x10-11

JG/T 193-2006

7

Hydrostatic preserve

0.4MPa,1h,no leakage

JG/T 193-2006

8

Fluid loss,mL

≤18

JG/T 193-2006

9

GCL durability, mL/2g

≥20

JG/T 193-2006


Advantage Bentonite Mat Clay Liners

1. An economic and environmentally sound alternative to synthetic liners or to bituminous products.
2. Dense and slim with high bond and shear strength.
3. Superior to conventional compacted/puddled clay lining
4. High puncture and tear resistance - the bentonite clay has a high swelling capacity and low permeability
offering good system integrity.
5. Self-sealing.
6. Long-term protection against ground water seepage
