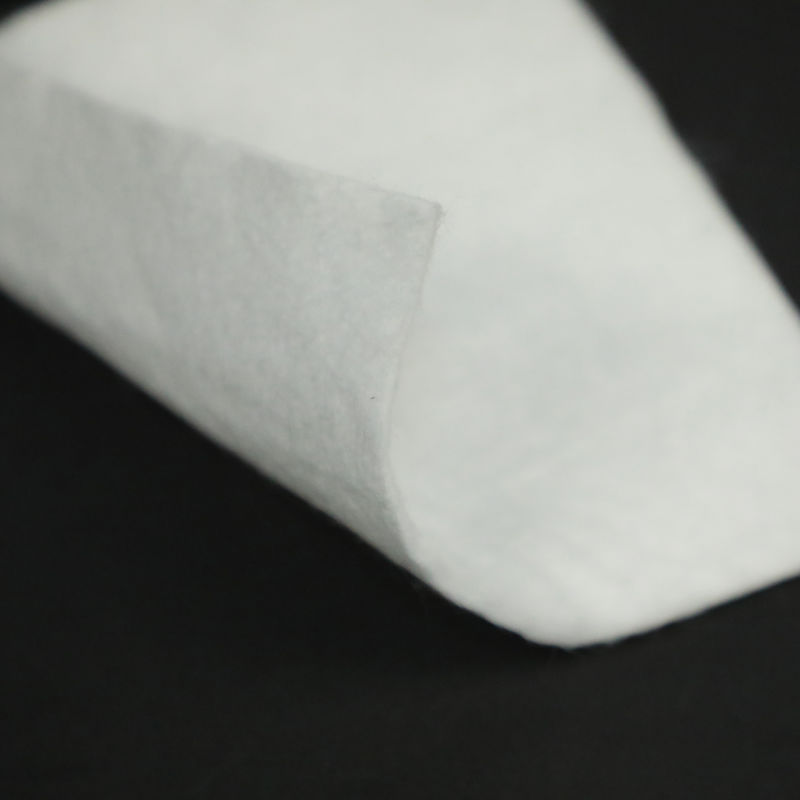

100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage

100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage

Place of Origin:

CHINA

Brand Name:

zhongloo

Certification:

ISO,SGS,CE

Model Number:

geotextile

Contact Us

Request A Quote
Product Details
Model NO.:
Geotextile
Length:
As Request
Transport Package:
Export Package, As Request
Origin:
CHINA
Trademark:
Zhongloo
HS Code:
5602290000
Production Capacity:
Within 3 Days Per 40′hc
Material:
PP/Pet
Fiber:
Short Fiber And Long Fiber/Long Fiber
Kind:
Non-woven
Product Description

Product Description



Product Introduction:
Using ultra-high-strength polypropylene staple fiber or ES fiber as the main raw material, it is produced by non-woven technology and has the functions of isolation, reinforcement, protection, filtration, drainage, and buffering.
Product specifications: PP100~PP1200, width 2m~6m., length according to user requirements.
Features:
The physical and mechanical properties are 2 to 3 times higher than that of conventional products. The proportion of products with the same gram weight is low; the acid and alkali resistance is excellent, the hot melt adhesion is good, and the wear resistance is strong. It is more suitable for CRTS/ slab ballastless track sliding layer system, which can reduce the interaction between the track system and the bridge surface.
Applications:
Polypropylene needle-punched non-woven geotextile is mainly used for the sliding layer between CRTS slab ballastless track and beam surface of passenger dedicated railway, and the isolation layer between CRTS slab ballastless track and friction. It can also be widely used Hydropower, highways, railways, ports, airports, sports venues, tunnels, beaches, reclamation, environmental protection and other fields play the role of isolation, filtration, drainage, reinforcement, protection, etc.
100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage 0100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage 1
Specification unit 100g 200g 300g 400g 500g 600g 700g
unit weight variation % ± 6
Grab strength MD
N
≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200
TD ≥450 ≥900 ≥1200 ≥1600 ≥2000 ≥2400 ≥3200

Trapezoidal tear strength
MD
N

≥170

≥350

≥420

≥500

≥580

≥660

≥900

TD
≥170 ≥350 ≥420 ≥500 ≥580 ≥660 ≥900
CBR mullen brust strength kN ≥1.3 ≥2.5 ≥3.5 ≥4.3 ≥5.5 ≥6.5 ≥9.0
breaking strength MD kN/m ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
TD ≥5.0 ≥11 ≥16 ≥22 ≥28 ≥35 ≥48
Elongation at break MD % 40~70 50~80 70±20
TD
puncture resistance N ≥210 ≥430 ≥650 ≥900 ≥1200 ≥1500 ≥2500



100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage 2Pro100g/m2 - 800g/m2 PP/PET Polypropylene Polyester Non-Woven Geotextile Fabric for Soil Separation and Drainage 3

Product Application

1. Road Work
Geotextiles are widely used in the construction of the road. It reinforces the soil by adding tensile strength to it. It is used as a rapid de-watering layer in the roadbed, the geotextiles need to preserve its permeability without losing its separating functions.



2. Railway Works



The woven fabrics or the non-woven ones are used to separate the soil from the sub-soil without impeding the groundwater circulation where the ground is unstable. Enveloping individual layers with fabric prevents the material from wandering off sideways due to shocks and vibrations from running trains.



3. Agriculture

It is used for mud control. For the improvement of muddy paths and trails those used by cattle or light traffic, nonwoven fabrics are used and are folded by overlapping to include the pipe or a mass of grit.



4. Drainage

The use of geotextiles to filter the soil and a more or less single size granular material to transport water is increasingly seen as a technically and commerc
