HDPE Geocell Description
Discover our premium HDPE Geocell, a top-performing geosynthetics solution designed for efficient ground stabilization. Constructed with a durable honeycomb grid structure, this plastic geocell is ideal for use as a gravel grid, permeable paver base, or soil stabilizer. Whether your project involves driveways, retaining walls, or road construction, our geocell systems deliver exceptional support and drainage performance.
Engineered from high-density polyethylene (HDPE), our geocells are available at competitive prices and offer outstanding reliability across a wide range of applications. These three-dimensional, expandable panels are formed from HDPE, polyester, or other polymer materials. When deployed, the interconnected strips expand to create a flexible, cellular structure that is filled with soil, gravel, or other materials.
Once compacted, the infill is confined within the cells, creating a free-draining system that resists erosion, distributes loads, and stabilizes the ground through tensile reinforcement. This makes our HDPE geocells a dependable choice for projects requiring long-term structural integrity and environmental resilience.
HDPE Geocell Feature
HDPE Paving Plastic Gravel Stabilizer Geocell Features:
1) Light material , resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2) High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3) High carrying capacity and good dynamic performance and high erosion ability.
4) The geometry size can be changed to meet different needs of the project, such as height and welding distance.
5) Retractable and small loading volume, convenient joint, speed construction.
6) Local material can be used during construction , reduce the construction cost, easy to be transported after folding together.

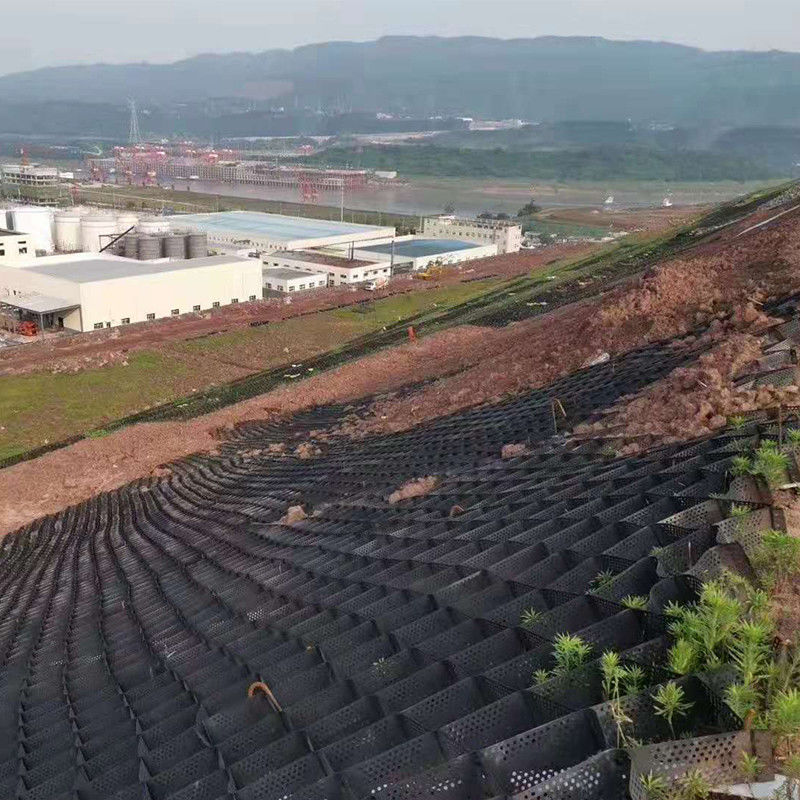

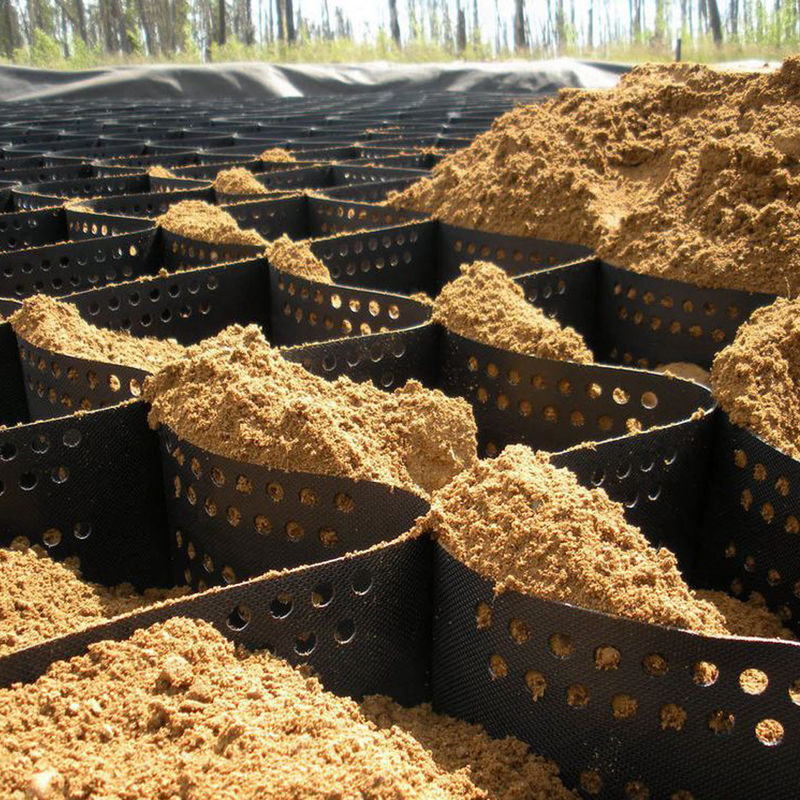

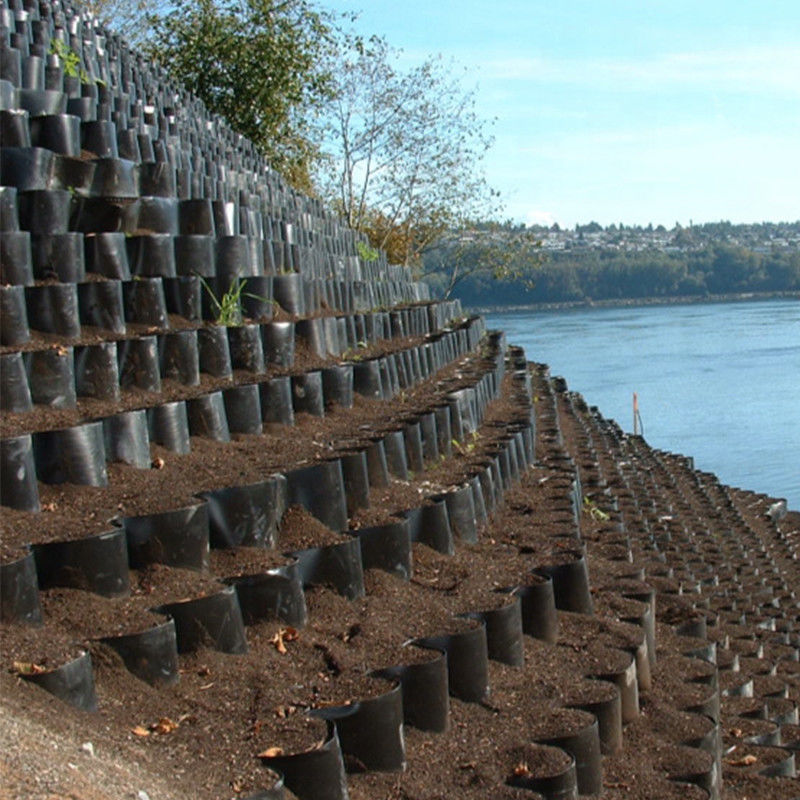

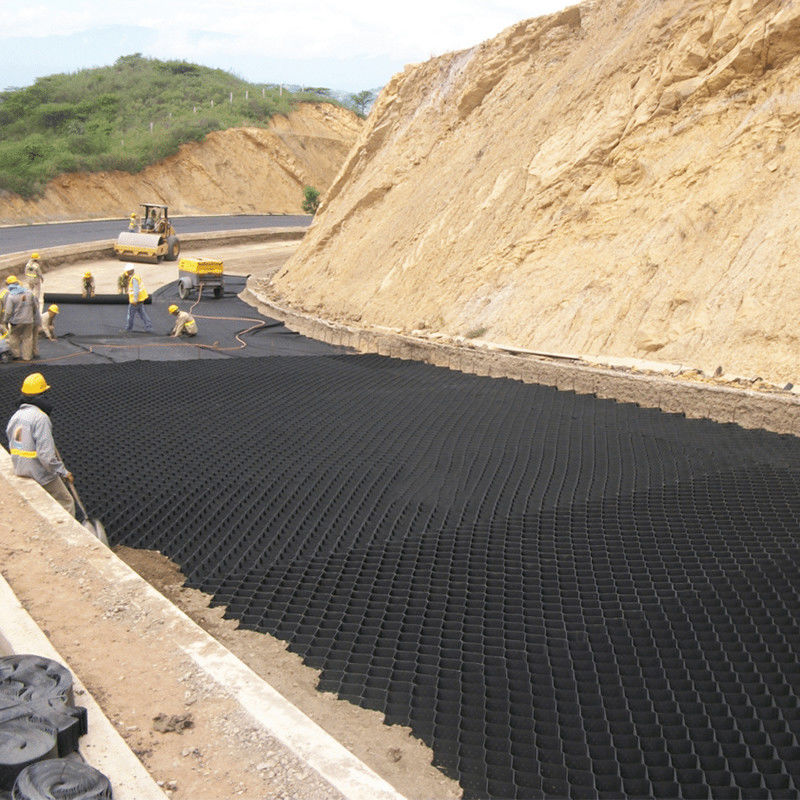

Geocell Project Cases
HDPE Geocell Parameters
| Item |
Testing Result |
Index |
| Polymer Density |
ASTM D 1505 |
High Density Polythylene with density of 0.935 0.965 g/cm3 |
| Environmental Stress Crack Resistance |
ASTM D 1693 |
>4000 hours |
| Carben Black Content |
ASTM D 1603 |
1.5%-2% |
| Sheet Thickness |
ASTM D 5199 |
Smooth: 1.0mm-2mm; Textured:1.5mm-2.5mm |
| Welding Distance |
- |
330-1000mm |
| Cell Depth |
- |
50-250mm |
| Seam Hang Strength |
- |
A 100mm wide seam sample supports a 72.5kg load for a minimum of 30 days in an ambient room temperature environment. |
HDPE Geocell Advangtages
1.Applied for enhancing the stability of railway subgrades.
2.Used to reinforce and stabilize highways built across desert areas.
3.Ideal for erosion control and structural support in shallow water channels.
4.Provides foundation reinforcement for retaining walls, wharfs, and levees.
5.Effective in the ecological management and protection of deserts, coastlines, and riverbanks.
HDPE Geocll FAQ
Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.
Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time?
A:General within 3-7days after received the deposit.
Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
