Name: HDPE Drainage Board Dimple Membrane Drain Mat
Brand: zhongloo
SKU: Drainage board
Price: 0.67 USD
Availability: InStock
Rating: 4.7 (151 reviews)

Home > products > Dimpled Drainage Membrane >

HDPE Drainage Board Dimple Membrane Drain Mat

Dimple Membrane Drain Mat

HDPE Dimple Membrane

HDPE Drainage Board

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Drainage board

Request A Quote

Product Details

Product Name:

Drainage Board

Color:

Black White Green

Certificate:

ISO9001

Application:

Park Road

Thickness:

0.8mm-2.0mm

MOQ:

1000 Square Meter

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

Drainage And Storage Board For Roof Garden

Get Best Price

Drainage 50*50cm Hdpe Drainage Cell For Artificial Grass

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

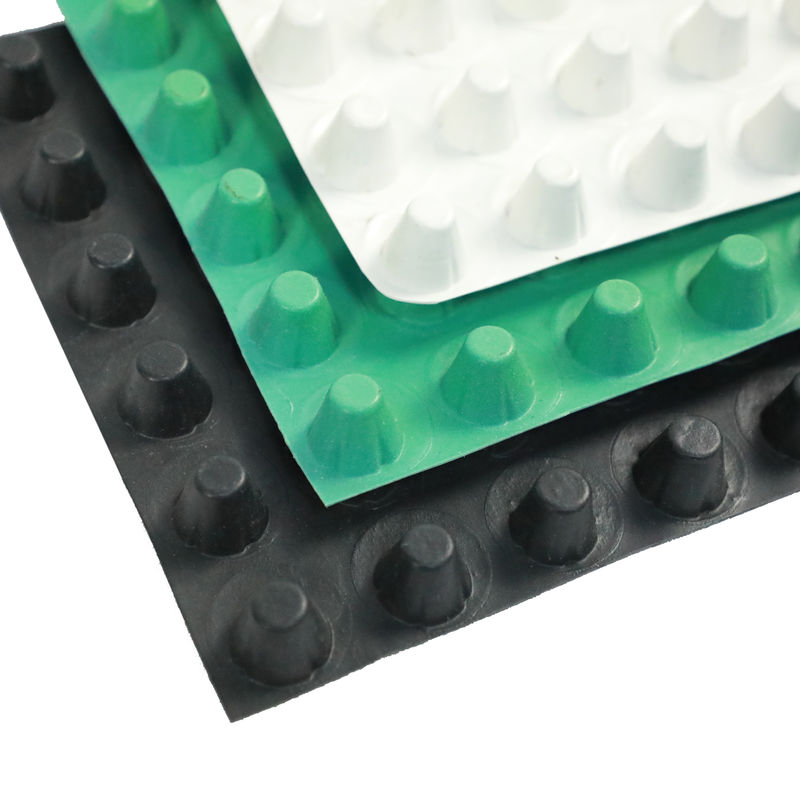

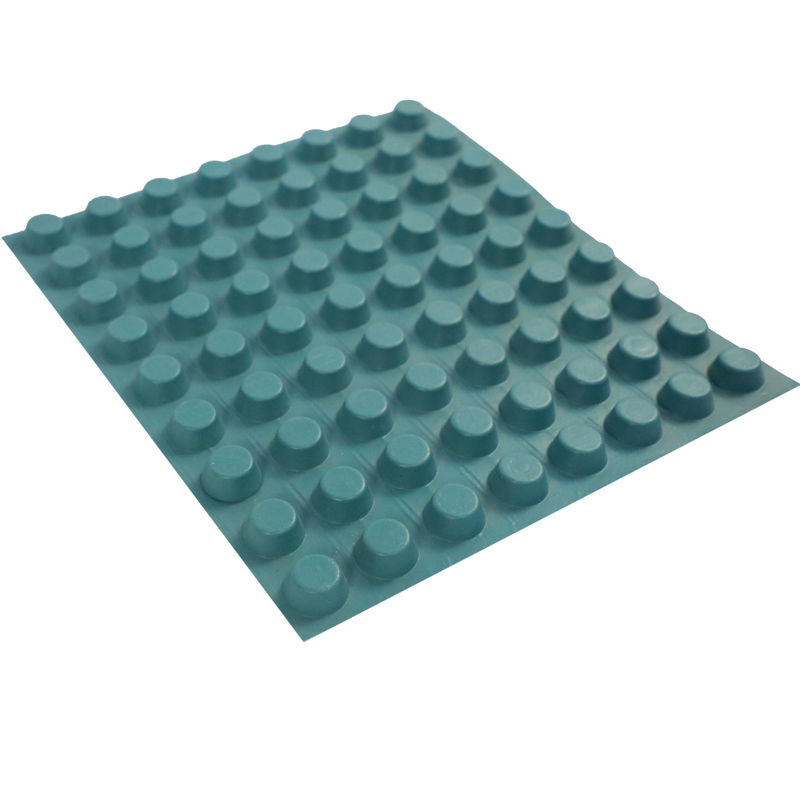

HDPE Drainage Board Dimple Membrane Drain Mat

Drainage Board
waterproof and drainage board is a polymer waterproof board with drainage function. It is mainly composed of concave and convex waterproof and drainage board and adhesive tape. The adhesive tape can facilitate the installation and fixation of the material. It is mainly used for waterproofing and drainage of underground tunnels. It has the characteristics of good drainage effect, excellent waterproof performance and easy installation.

Technical parameter

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
