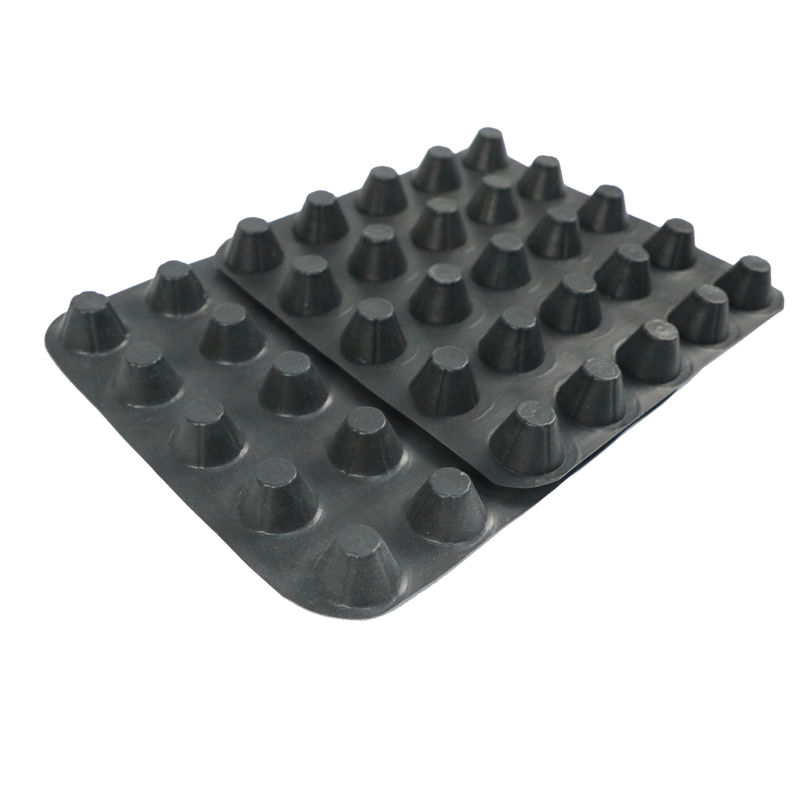

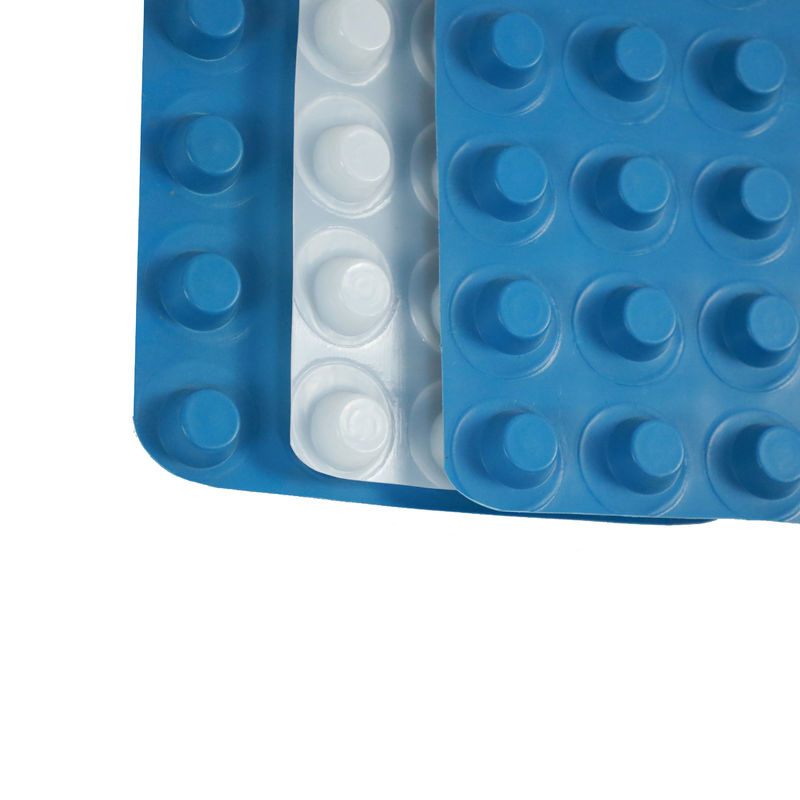

Name: HDPE Drainage Boards For Construction Projects
Brand: zhongloo
SKU: Drainage board
Price: 0.73 USD
Availability: InStock
Rating: 4.5 (197 reviews)

Home > products > Dimpled Drainage Membrane >

HDPE Drainage Boards For Construction Projects

Construction Projects HDPE Drainage Boards

Construction Projects Drainage Boards

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Drainage board

Request A Quote

Product Details

Product Name:

Drainage Board

Color:

Black White Green

Appearance:

Smooth

Sheet Thickness:

8/12/16/20mm

Material:

HDPE

Width:

1-3 Meters

Dimpled Drainage Membrane Greening Project PVC Perforated Dimple Drainage Board Groundwork Water Solution Water Solution

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

HDPE Drainage Boards For Construction Projects

Get Best Price

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

HDPE Drainage Boards Are Used For Construction Projects

Drainage Board

The plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw materials. The plastic bottom plate is punched into conical projections or stiffener convex points (or hollow cylindrical porous). It has undergone continuous innovation and research and development. The raw material has been greatly improved and changed. The compressive strength and overall flatness have been greatly improved.

Technical parameter

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Product Feature

The surface has a certain number and specifications of convex points, which can increase
the friction between the plate and the soil to prevent the soil from moving and falling off. At
the same time, the convex point on the drainage plate can also play a role in dispersing
pressure, reducing the water pressure inside the building and the bearing capacity of the
foundation, and protecting the building from being damaged.
