Name: HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden
Brand: Anhui Zhonglu Engineering Materials Co., Ltd.
SKU: Drainage board
Price: 0.72 USD
Availability: InStock

Home > products > Dimpled Drainage Membrane >

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Roof Garden HDPE Drainage Board

Dimple Sheet HDPE Drainage Board

Waterproof HDPE Drainage Board

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Drainage board

Request A Quote

Product Details

Product Name:

Drainage Board

Color:

Black White Green

Appearance:

Smooth

Application:

Park Road

Specification:

Customizable

Width:

1-3 Meters

Dimpled Drainage Membrane Greening Project PVC Perforated Dimple Drainage Board Groundwork Water Solution Water Solution

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

HDPE Drainage Boards For Construction Projects

Get Best Price

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

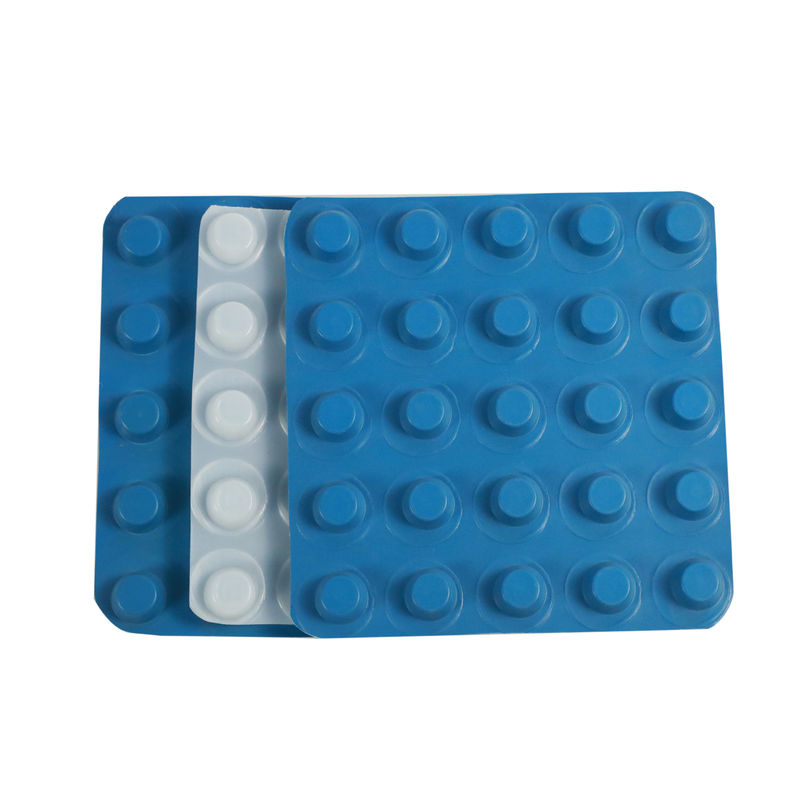

HDPE Drainage Board Dimple Sheet For Waterproofing Used In Roof Garden

Drainage Board

Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw materials, and the plastic bottom plate is stamped into conical protrusions or stiffening rib protrusions (or hollow cylindrical porous). Through continuous innovation and research and development of raw materials, it has been greatly improved and changed. Now, it is pressed from polyvinyl chloride (PVC) as raw material, and its compressive strength and overall flatness have been greatly improved, with a width of 1-3 meters, The length is 4-10 meters or more.Waterproof and drainage protection boards all have concave convex hollow vertical reinforcement structures, which can quickly and effectively drain rainwater, greatly reducing or even eliminating the static water pressure of the waterproof layer. Through this active water guiding principle, the effect of active waterproofing can be achieved.

Technical parameter

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
