Dimple Plastic HDPE Drainage Board for Water Impounding Roof

Dimple Plastic HDPE Drainage Board for Water Impounding Roof

Plastic hdpe drainage board

Impounding Roof hdpe drainage board

HDPE drainage dimple board

Place of Origin:

China

Brand Name:

zhongloo

Certification:

CE/ISO9001/ISO14001

Model Number:

Drainage Board

Contact Us

Request A Quote
Product Details
Type:
Drainage Board
Color:
Black White Green
Certificate:
CE/ISO9001/ISO14001
Material:
HDPE
Design Style:
Modern
Surface Treatment:
Spray Painted
Size:
500*500*40mm/50mm/70mm
HS Code:
3921909090
Product Description

HDPE Plastic Water Impounding Roof Garden Green Dimple Drainage Board



Product Description

The drain board is made of high density polyethylene (HDPE). The surface is equipped with a layer of grid and a layer of non-woven fabric to form a combined drainage board. It has the functions of drainage, waterproof, breathable, moisturizing and root blocking. It is suitable for large square greening and garage roof greening projects with deep soil layer and no water storage function. It can resist long-term high pressure without deformation. This long-term compression resistance can not only withstand the weight and load of the concrete floor, but also withstand the inevitable external pressure and impact during construction, such as the trampling of vehicles, workers and the impact of concrete pouring. Keep the bottom plate from deformation for a long time, so the original drainage can be maintained. The drainage board has only drainage function and is widely used in retaining wall, basement, tunnel, slope protection, platform and expressway subgrade.

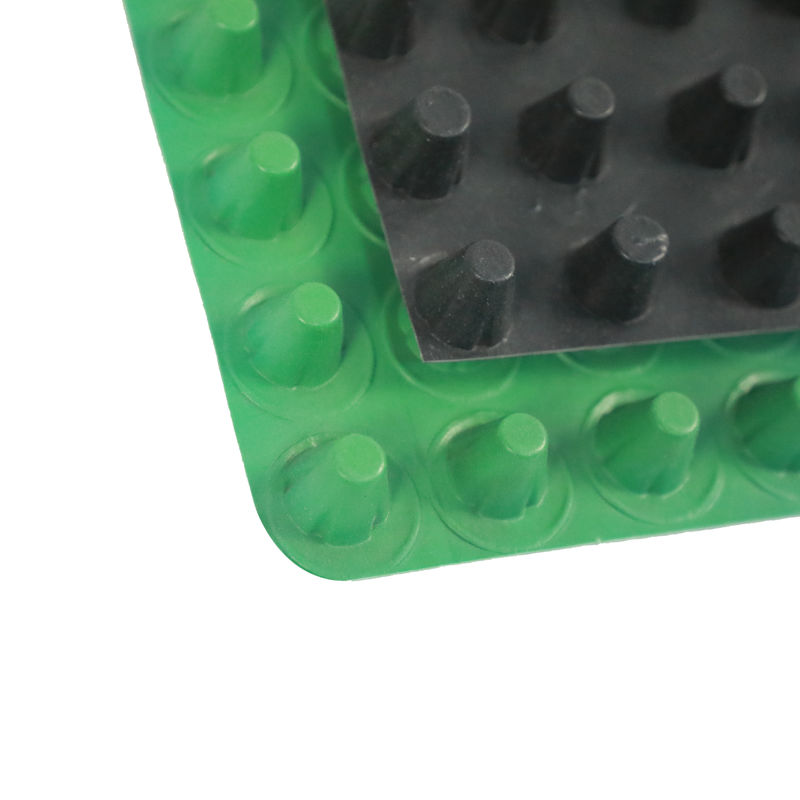

Dimple Plastic HDPE Drainage Board for Water Impounding Roof 0


Technical Parameters


Plastic drainage board
item Specification
Tension at 10% elongation (N/100mm) ≥ 350
Maximum pulling force (N/100mm) ≥ 600
Elongation at break /% ≥ 25
Tear performance/N ≥ 100
Compression performance Maximum strength when compression rate is 20%/KPa ≥ 150
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Heat aging Tensile retention at 10% elongation≥ 80
Maximum tensile retention rate/(N/100mm) /% ≥ 90
Elongation at break retention rate /% ≥ 70
Maximum strength retention rate when the compression rate is 20% ≥ 90
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ 10


Drainage board Feature

1. Material: HDPE
2. Height: 8,10,12,16,20,25,30mm
3. Color: white, green, black, blue
4. Width: 1m or 2m or 3m
5. Length: 10-15m
6. High compressive strength
7. Weight: 650g /m2----1800g/m2
8.Tensile loading:>150kpa --- >300kpa
9.Drain capacity:5.6—24.8cm3/s
10. Resistance to chemicals, root penetration, microorganism
Eco-friendly Construction Waterproof Dimple Membrane Drain Mat Plastic Sheet HDPE Drainage Board Cell


Drainage board Application:
Greening project: garage roof greening, roof garden, vertical greening, sloping roof greening, football field, golf course.
Municipal engineering: airport, road subgrade, subway, tunnel, landfill.
Construction engineering: the upper or lower layer of the building foundation, the indoor and outdoor walls and bottom plates of the basement, as well as the roof, roof anti-seepage and heat insulation layer, etc.
Water conservancy projects: anti-seepage water in reservoirs, reservoirs, and artificial lakes.
Traffic engineering: highway, railway subgrade, dam and slope protection layer

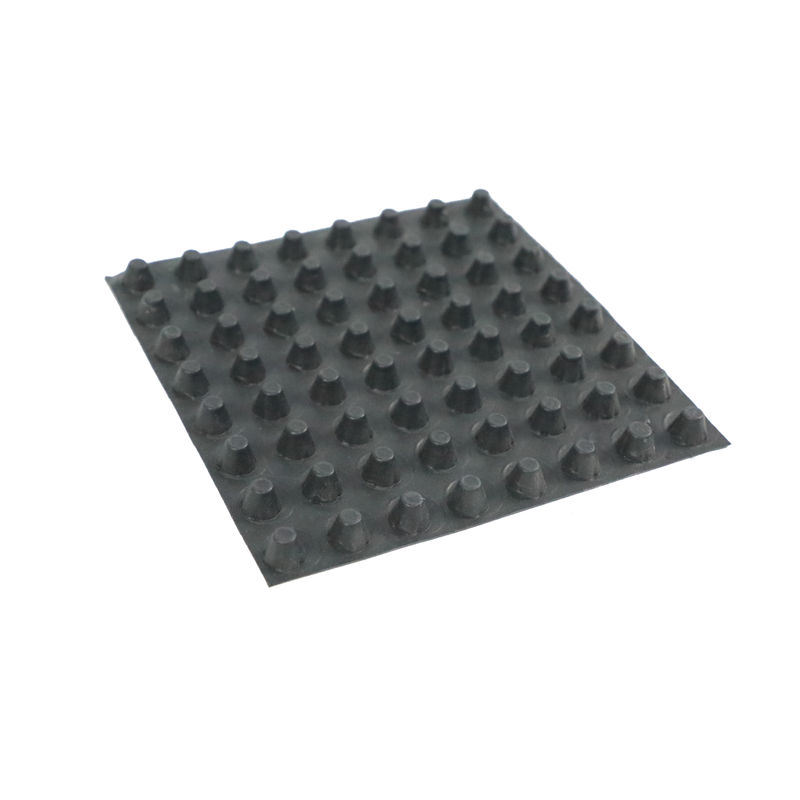

Dimple Plastic HDPE Drainage Board for Water Impounding Roof 1


FAQ
1. What's your MOQ?
A: Our MOQ is usually 1000sqm per color.

2. What's your delivery time?
A: It's about 14 days after we received the deposit.

3. What's your payment terms?
A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.
