HDPE Dimple Drainage Board For Waterproofing And Drainage Work
Product Description

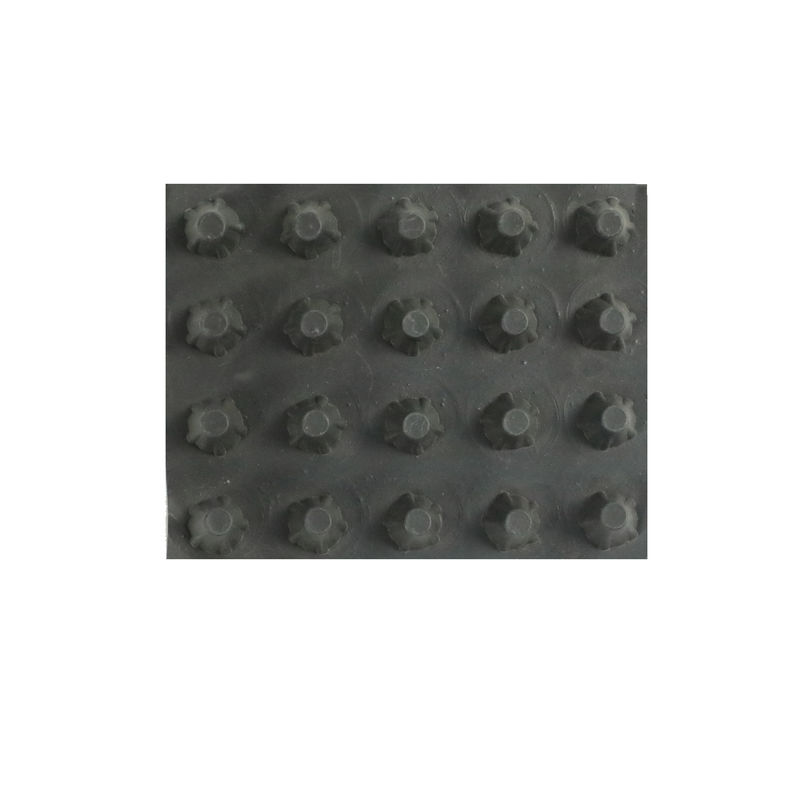

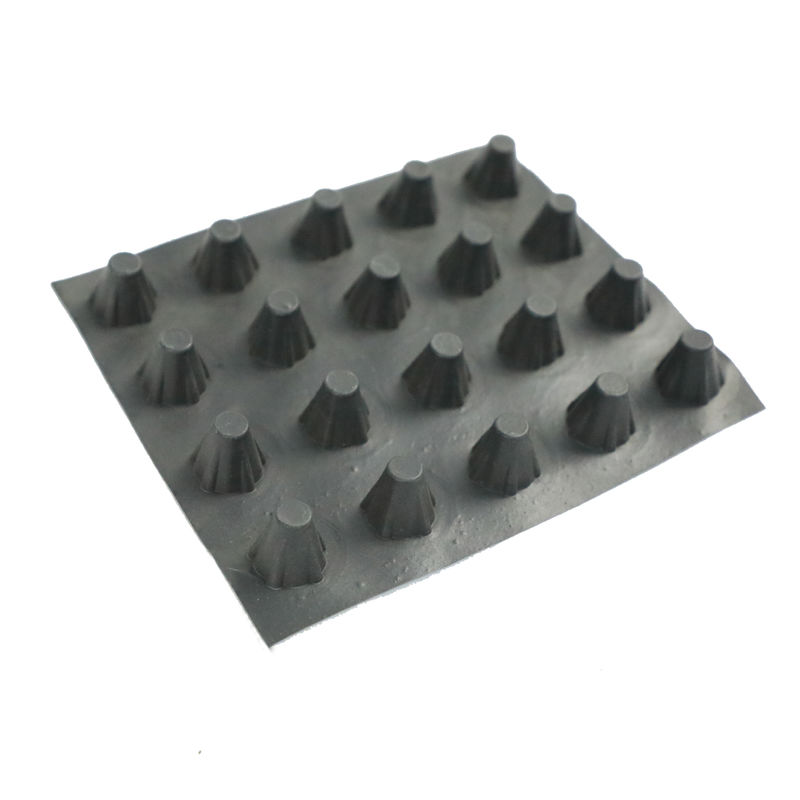

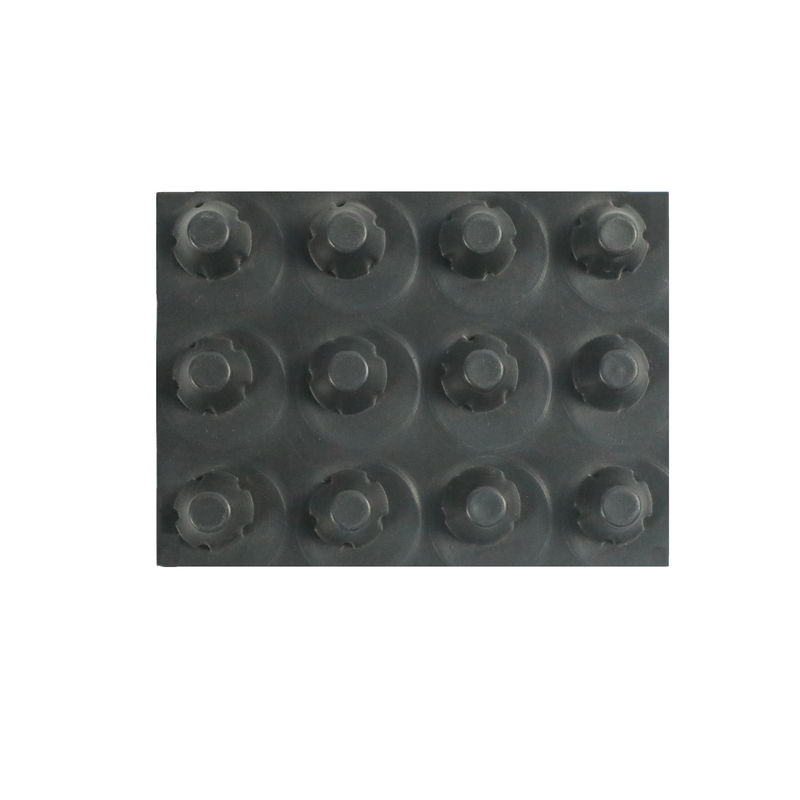

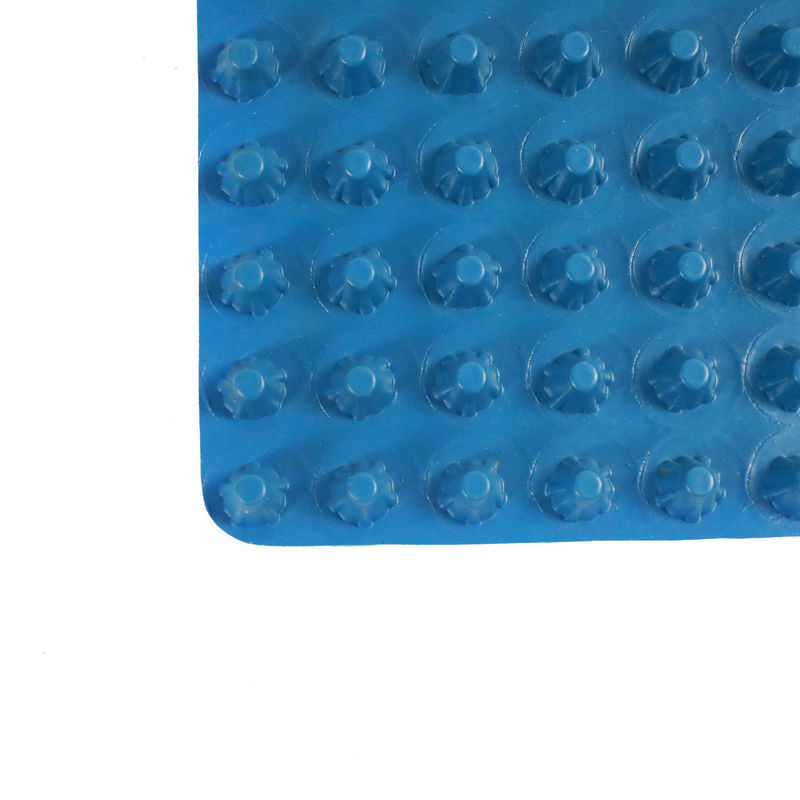

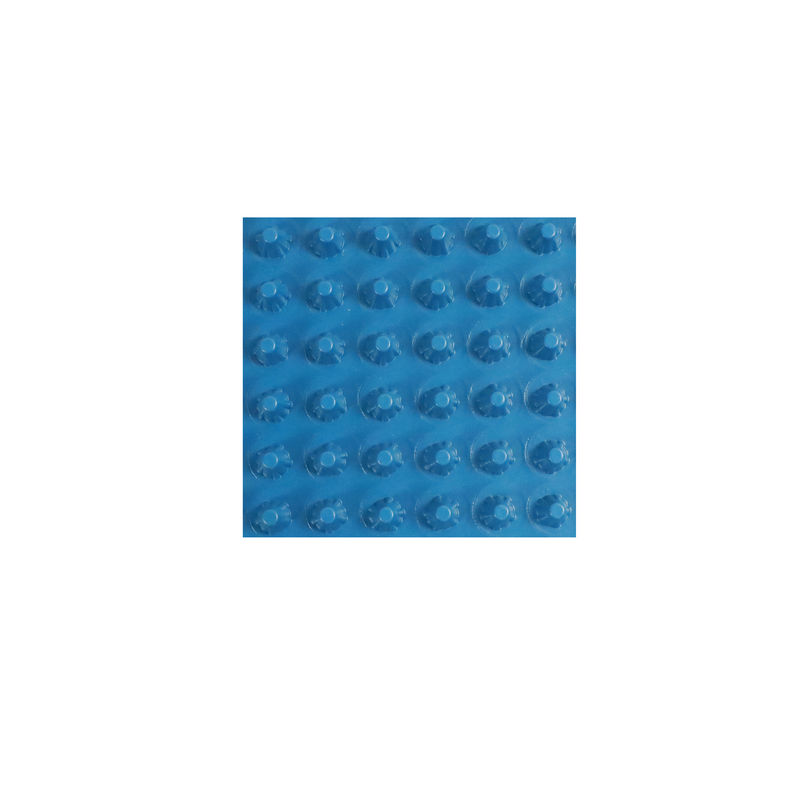

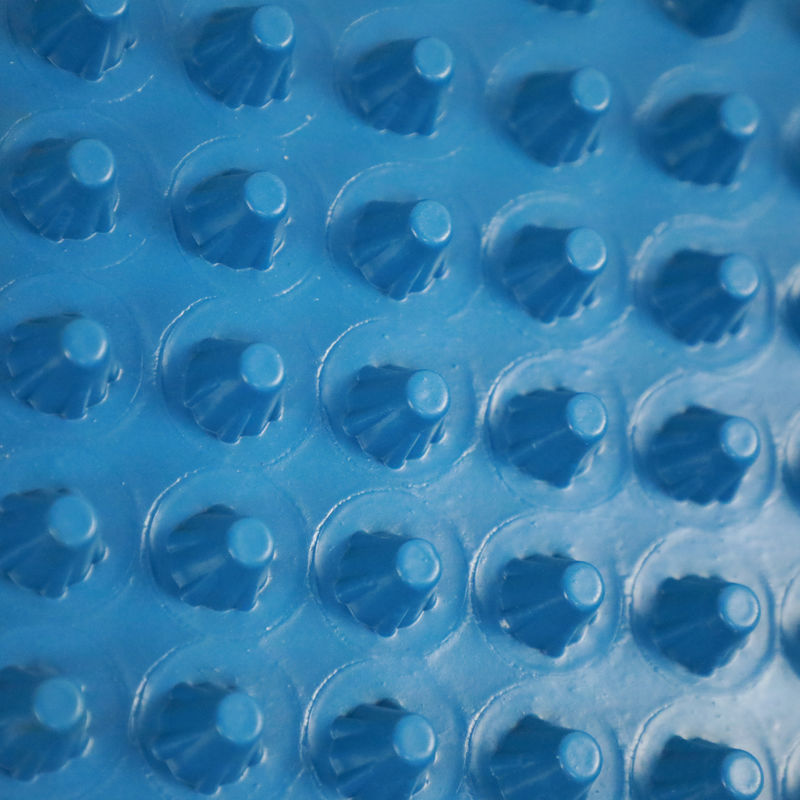

Dimple Drain board is made by 100% pure HDPE, the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.
Technical Parameters
| Plastic drainage board | ||
| item | Specification | |
| Tension at 10% elongation (N/100mm) ≥ | 350 | |
| Maximum pulling force (N/100mm) ≥ | 600 | |
| Elongation at break /% ≥ | 25 | |
| Tear performance/N ≥ | 100 | |
| Compression performance | Maximum strength when compression rate is 20%/KPa ≥ | 150 |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Heat aging | Tensile retention at 10% elongation≥ | 80 |
| Maximum tensile retention rate/(N/100mm) /% ≥ | 90 | |
| Elongation at break retention rate /% ≥ | 70 | |
| Maximum strength retention rate when the compression rate is 20% ≥ | 90 | |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ | 10 | |
Drainage board Feature
Drainage board Application:
1. Landscape:Landscape engineering: garage top greening, roof garden, football field, golf course, beach project;
2. Construction: Construction engineering : upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation;
3. Multiple Engineering: Railway, bridge, tunnel, underground's seepage, strengthening, reinforcement etc;
4. Traffic Engineering: Moto way, railway basement, dam and slope.
FAQ
1. What's your MOQ?
A: Our MOQ is usually 1000sqm per color.
2. What's your delivery time?
A: It's about 14 days after we received the deposit.
3. What's your payment terms?
A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.
