HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing

HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing

HDPE basement dimpled membrane

Waterproofing basement dimpled membrane

HDPE basement waterproofing dimple board

Place of Origin:

China

Certification:

CE/ISO9001/ISO14001

Model Number:

Drainage Board

Contact Us

Request A Quote
Product Details
Brand Name:
Zhongloo
Keywords:
Drainage Board
Color:
Black White Green
Warranty:
More Than 5 Years
Material:
HDPE
Roll Width:
1-3m
Usage:
Outdoor, Indoor
Size:
500*500*40mm/50mm/70mm
Product Description

HDPE Dimple Plastic Drainage Board For Construction Material And Civil Material



Product Description

HDPE water drainage board also call plastic drainage sheet is a type of green roofing and foundation driange systems which are drained by a special molding plastic sheets. Water is retained and drained off within dimple on the upper sides of the drainage board; excess water spills over the edges of the plates and is carried off from the roof or foundations. The plastic or HDPE drainage board are made from HDPE(high-density polyethylene), using high pressure to inject plastic to form hole-lump-shaped shell, with stereo space and support level; in the top of the shell, covering with non-woven as filtering level for water percolation, water storage and water drainage.

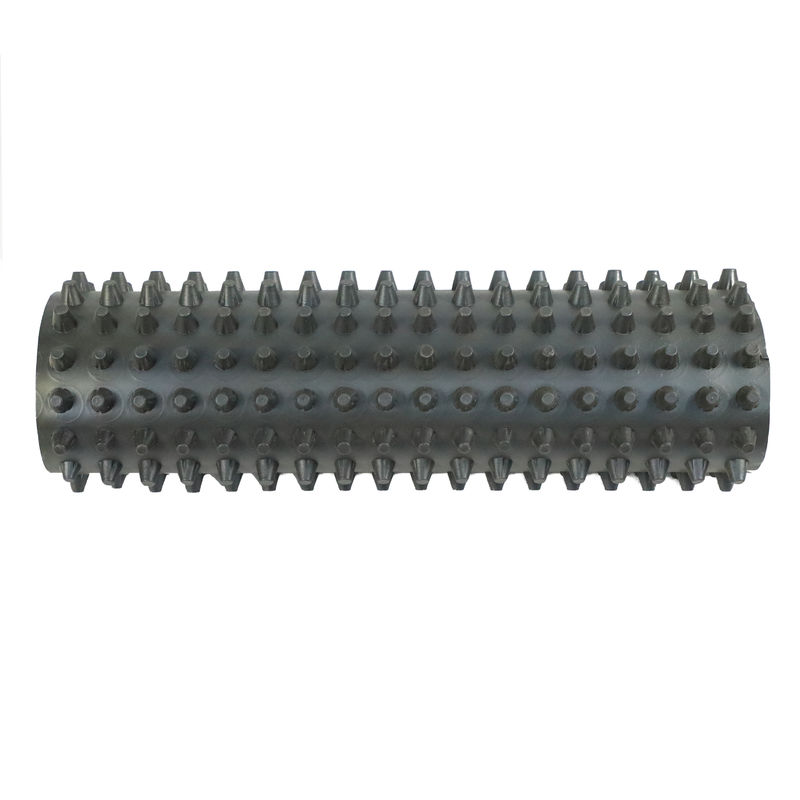

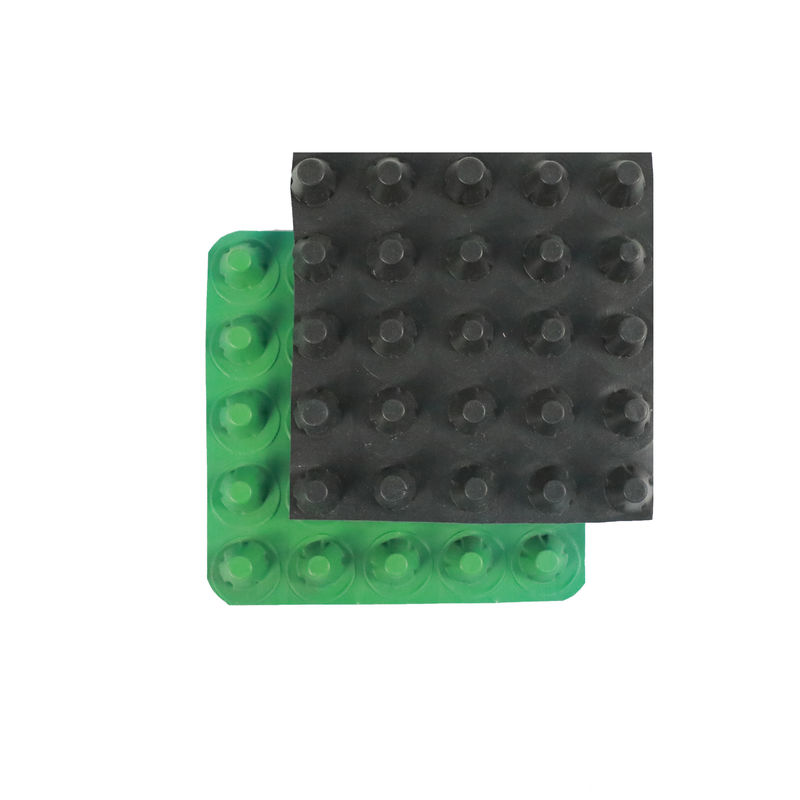

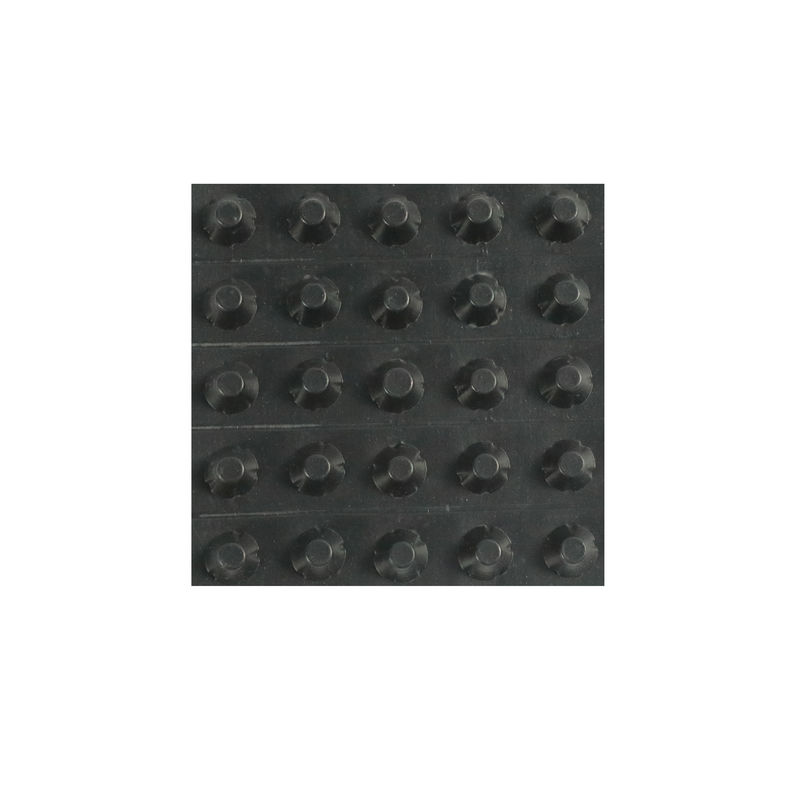

HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing 0


Technical Parameters


Plastic drainage board
item Specification
Tension at 10% elongation (N/100mm) ≥ 350
Maximum pulling force (N/100mm) ≥ 600
Elongation at break /% ≥ 25
Tear performance/N ≥ 100
Compression performance Maximum strength when compression rate is 20%/KPa ≥ 150
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Heat aging Tensile retention at 10% elongation≥ 80
Maximum tensile retention rate/(N/100mm) /% ≥ 90
Elongation at break retention rate /% ≥ 70
Maximum strength retention rate when the compression rate is 20% ≥ 90
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ 10



 Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.


Product Application Range
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.

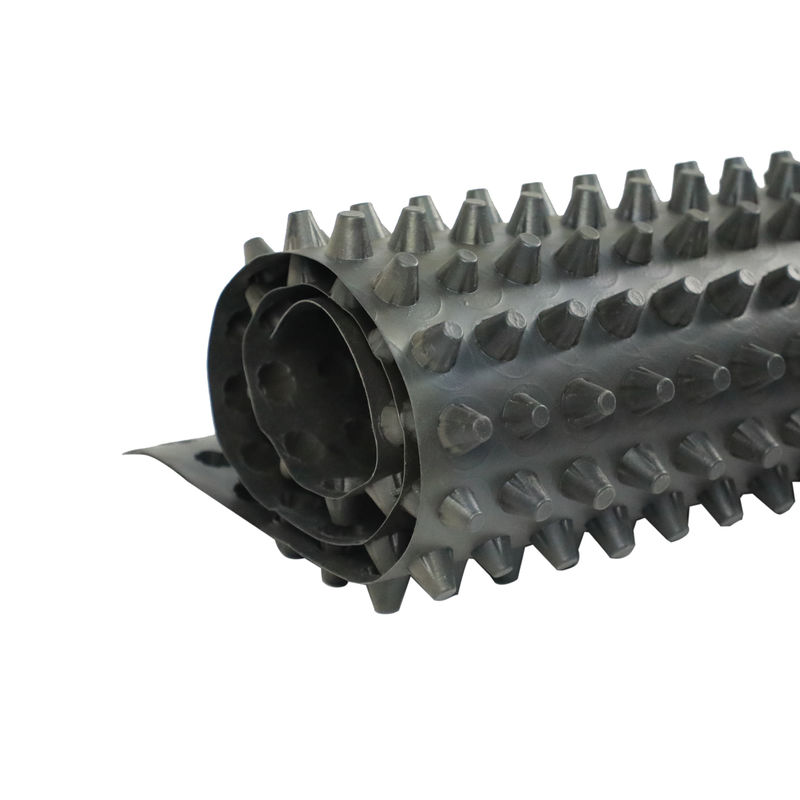

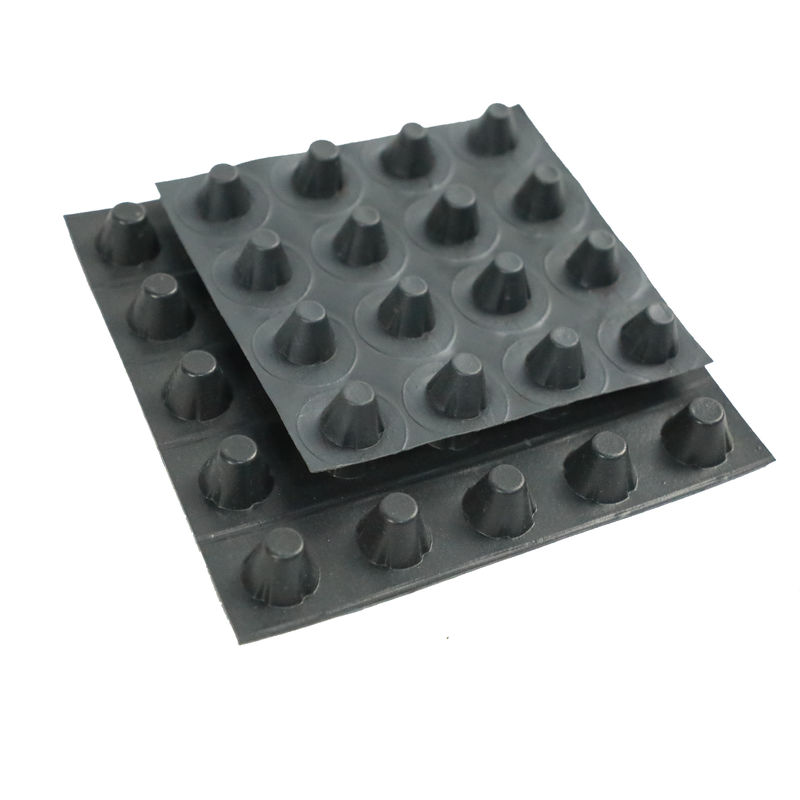

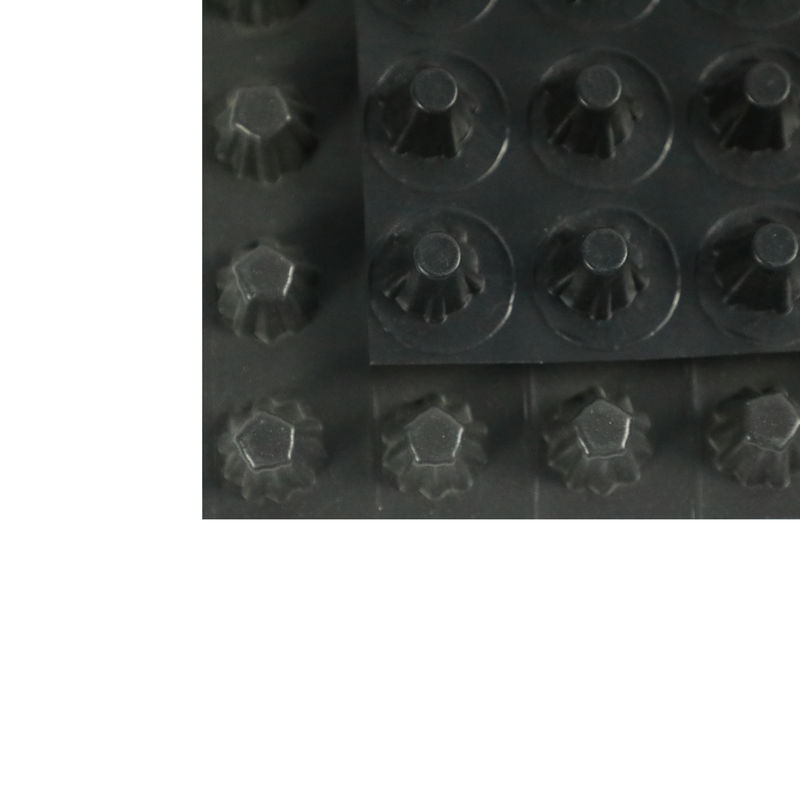

HDPE Plastic Basement Dimpled Membrane Drainage Board Waterproofing 1


FAQ
1. What's your MOQ?
A: Our MOQ is usually 1000sqm per color.

2. What's your delivery time?
A: It's about 14 days after we received the deposit.

3. What's your payment terms?
A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.
