10mm Plastic HDPE Dimple Board For Waterproofing

10mm Plastic HDPE Dimple Board For Waterproofing

10mm hdpe dimple board

Waterproofing hdpe dimple board

10mm dimple board for waterproofing

Place of Origin:

China

Brand Name:

zhongloo

Certification:

CE/ISO9001/ISO14001

Model Number:

Storage And Dimple Drainage Board

Contact Us

Request A Quote
Product Details
Keywords:
Storage And Drainage Board
Color:
Black White Green
Application:
Park Road Dam Layer
Material:
HDPE
Thickness:
0.8mm-2.0mm
Weight:
1.2-2.4kg/piece
Size:
500*500*40mm/50mm/70mm
MOQ:
1000 Square Meters
Product Description

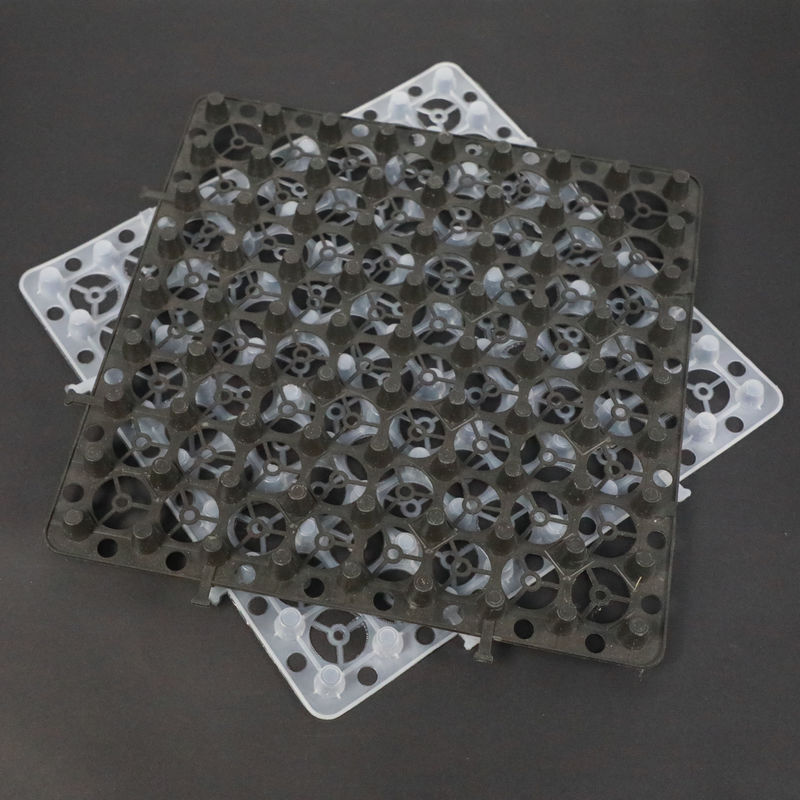

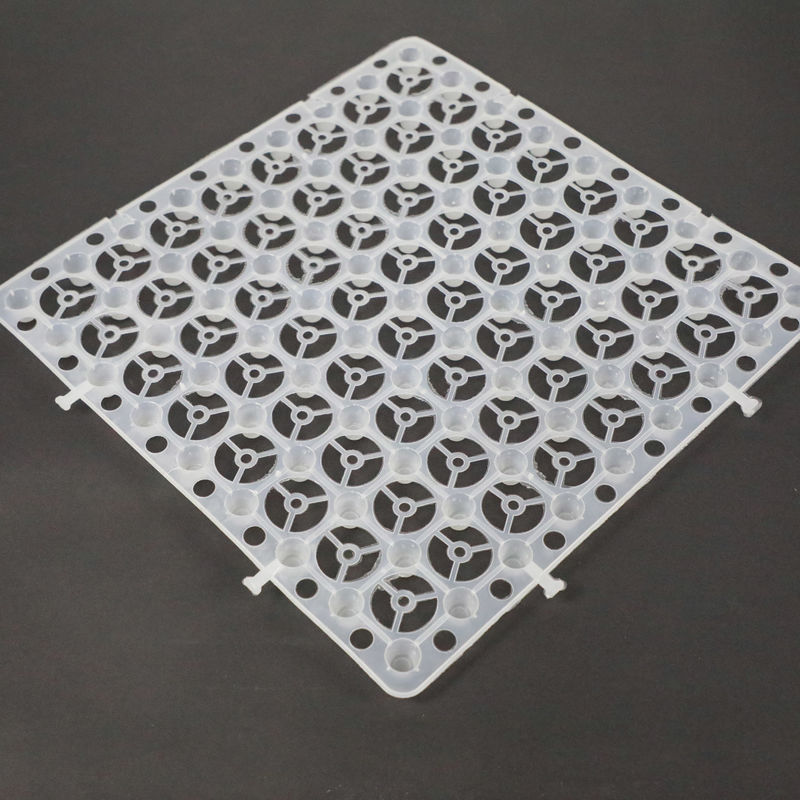

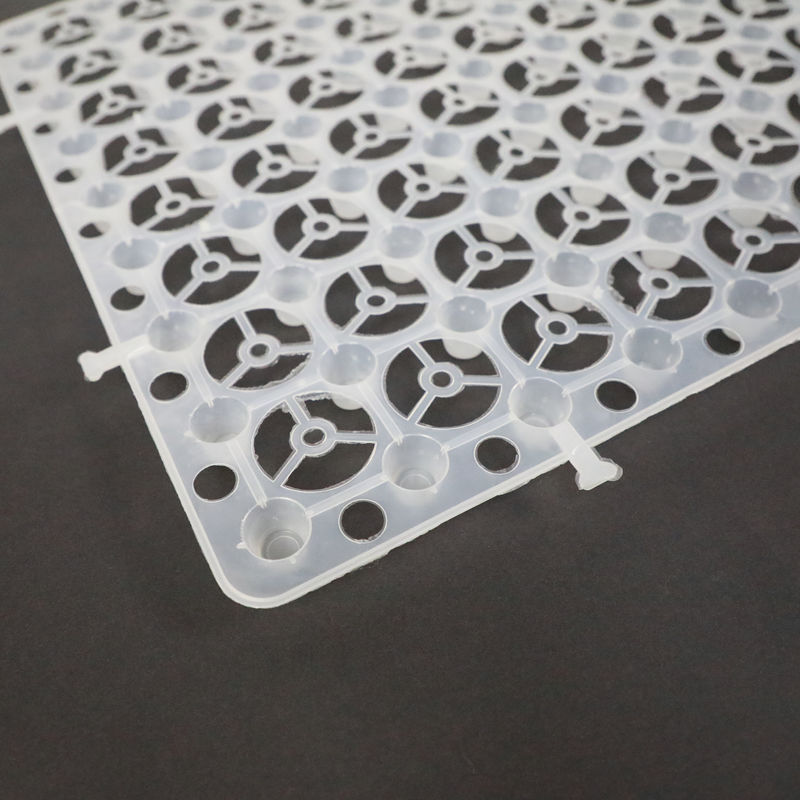

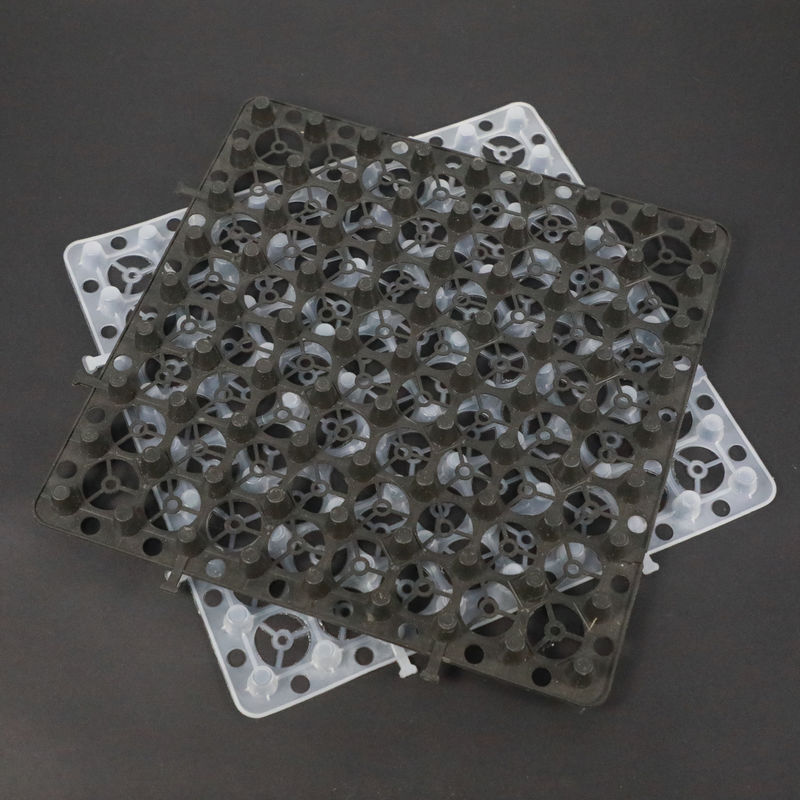

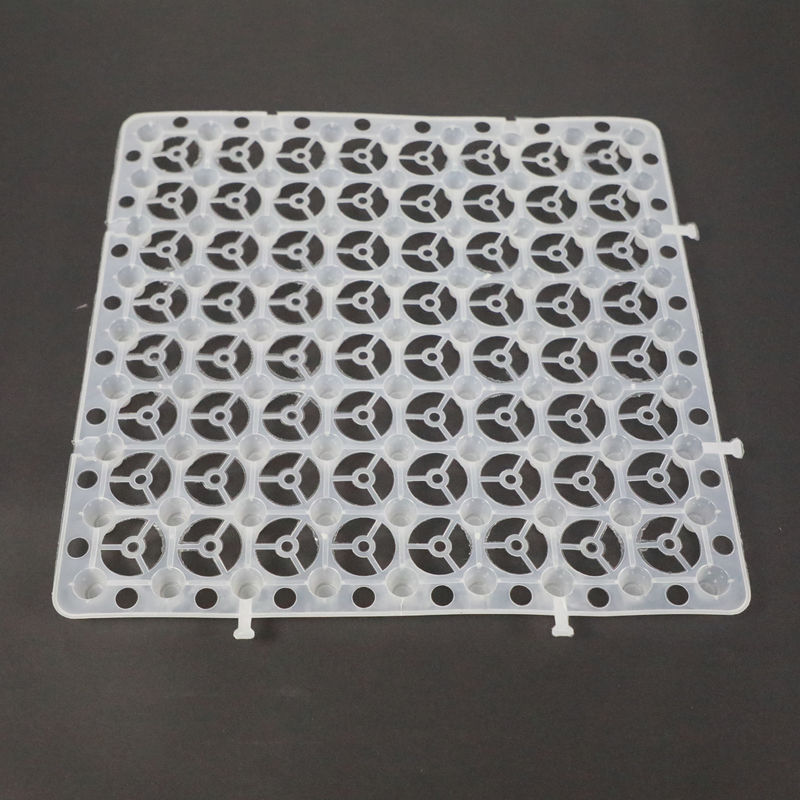

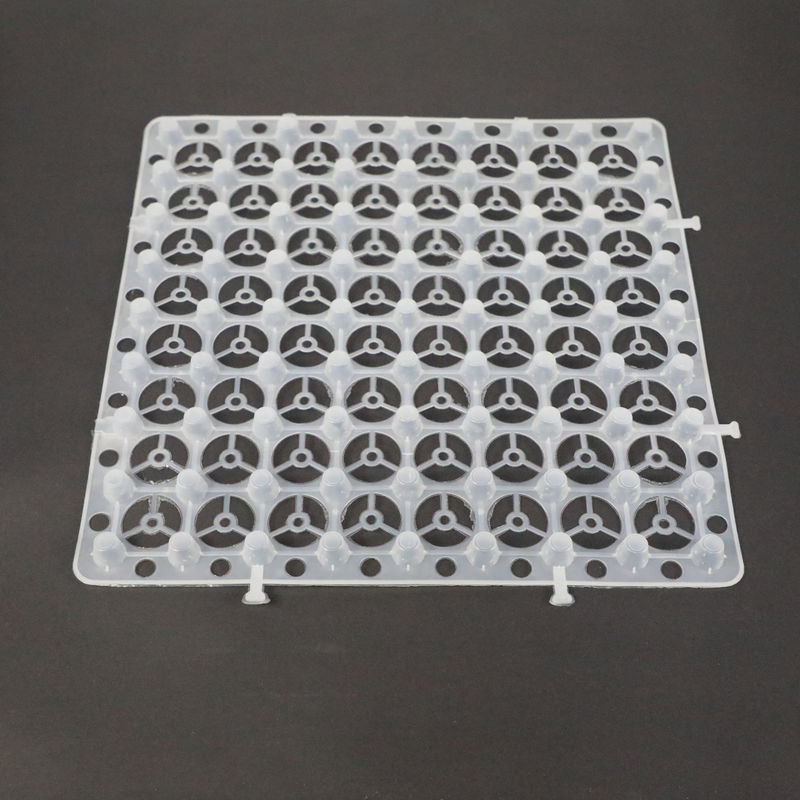

10mm HDPE Dimple Plastic HDPE Storage And Drainage Board



Product Description

The plastic storage and drainage plates is a type of green roof systems which are drained by a special molding plastic sheets. Water is retained within dimple on the upper sides of the drainage plates; excess water spills over the edges of the plates and is carried off the roof.
The plastic storage and drainage plates are made from HDPE(high-density polyethylene), using high pressure to inject plastic to form hole-lump-shaped shell, with stereo space and support level; in the top of the shell, covering with non-woven as filtering level for water percolation, water storage and water drainage.





10mm Plastic HDPE Dimple Board For Waterproofing 0


Technical Parameters


Plastic drainage board
item Specification
Tension at 10% elongation (N/100mm) ≥ 350
Maximum pulling force (N/100mm) ≥ 600
Elongation at break /% ≥ 25
Tear performance/N ≥ 100
Compression performance Maximum strength when compression rate is 20%/KPa ≥ 150
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Heat aging Tensile retention at 10% elongation≥ 80
Maximum tensile retention rate/(N/100mm) /% ≥ 90
Elongation at break retention rate /% ≥ 70
Maximum strength retention rate when the compression rate is 20% ≥ 90
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ 10



Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.



Product Application

Greening project: garage roof greening, roof garden, vertical greening, sloping roof greening, football field, golf course.

Municipal engineering: airport, road subgrade, subway, tunnel, landfill.

Construction engineering: the upper or lower layer of the building foundation, the indoor and outdoor walls and bottom plates of the basement, as well as the roof, roof anti-seepage and heat insulation layer, etc.

Water conservancy projects: anti-seepage water in reservoirs, reservoirs, and artificial lakes.

Traffic engineering: highway, railway subgrade, dam and slope protection layer



10mm Plastic HDPE Dimple Board For Waterproofing 1


FAQ
1. What's your MOQ?
A: Our MOQ is usually 1000sqm per color.

2. What's your delivery time?
A: It's about 14 days after we received the deposit.

3. What's your payment terms?
A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.
