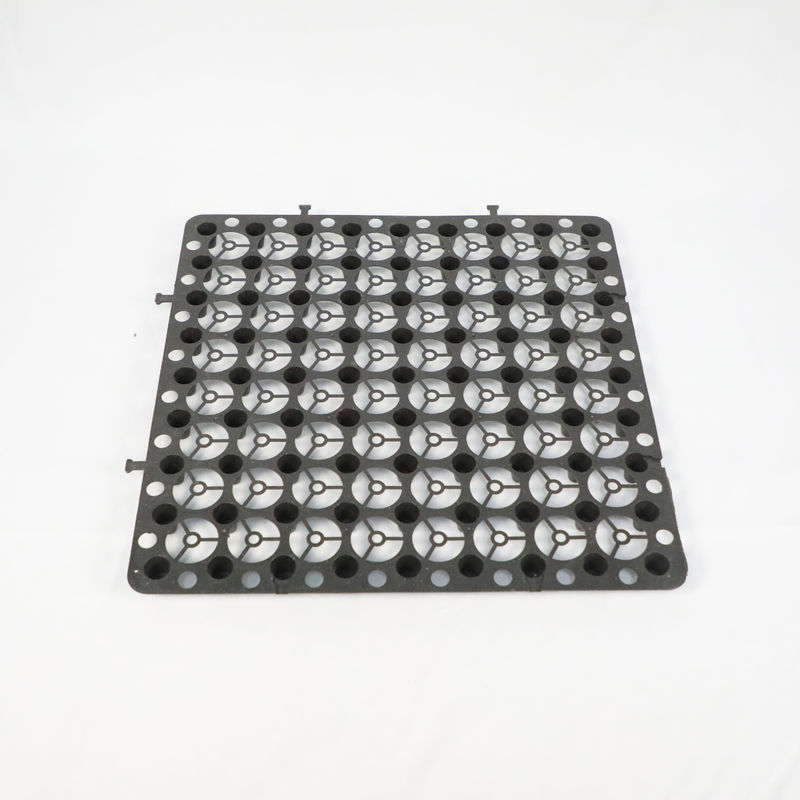

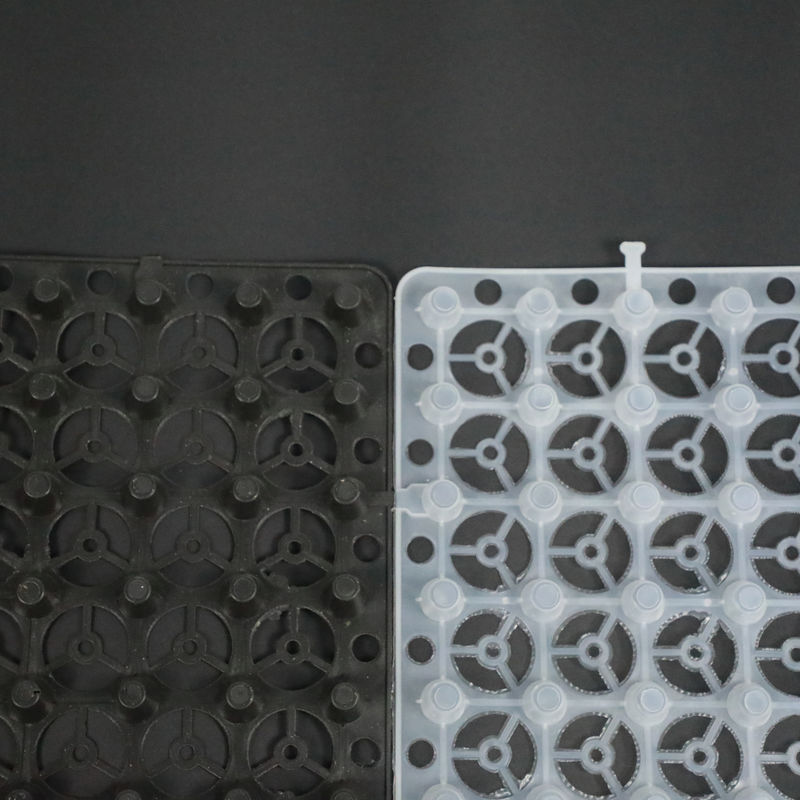

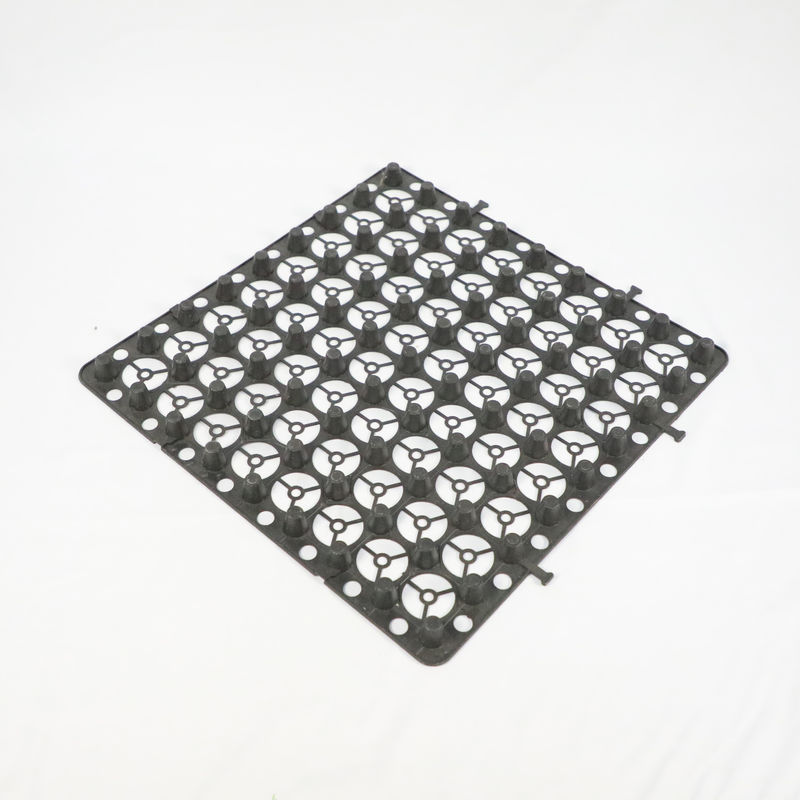

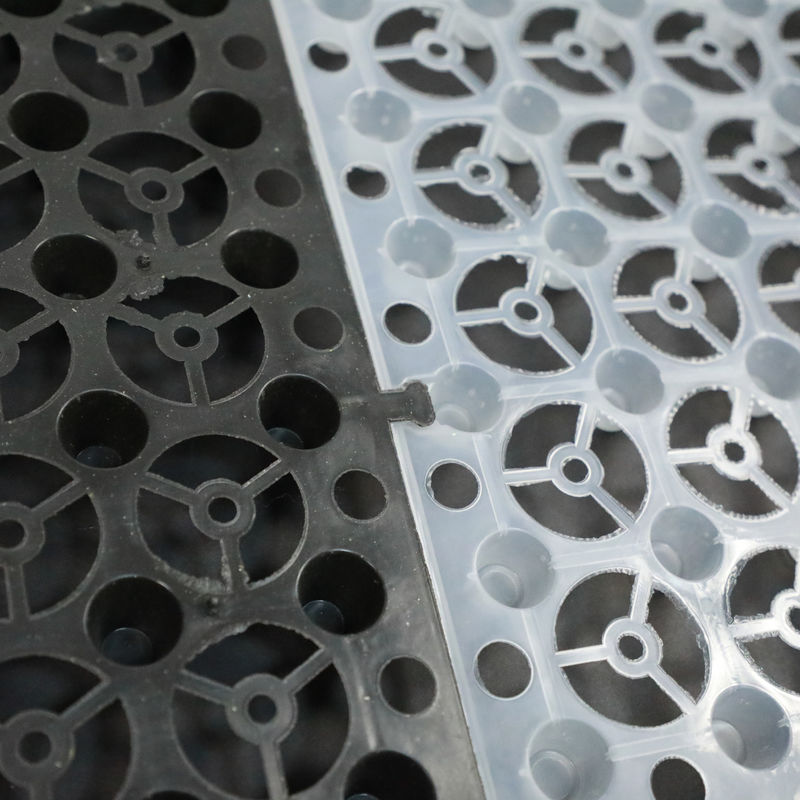

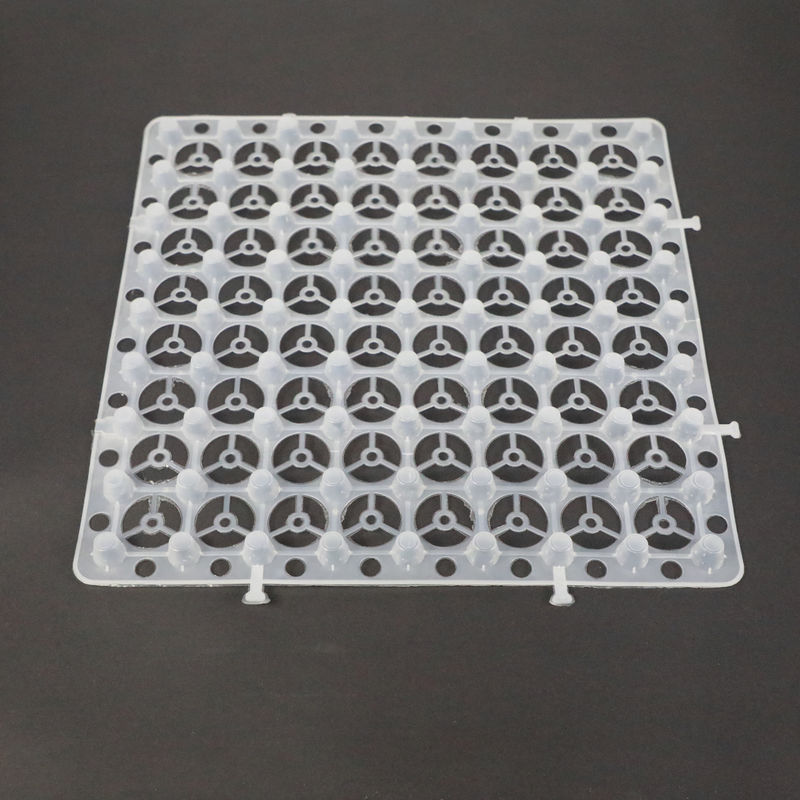

Garden Plastic Dimpled Drainage Membrane Board House Green Roof System

Garden Plastic Dimpled Drainage Membrane Board House Green Roof System

Plastic Dimpled Drainage Membrane

Dimpled Drainage Membrane Board

Plastic dimple drainage board

Place of Origin:

China

Brand Name:

zhongloo

Certification:

CE/ISO9001/ISO14001

Model Number:

Storage And Dimple Drainage Board

Contact Us

Request A Quote
Product Details
Keywords:
Storage And Dimple Drainage Board
Water Storage:
3.8-5L/M2
Application:
Park Road Dam Layer
Material:
HDPE PP
Advantage:
Low Costs
Type:
500*500 Hdpe
Design Style:
Contemporary
Function:
Waterproof Storage Drainage Isolation
Product Description

House Green Roof System Garden Dimple Drainage Board Plastic Drain Board



Product Description

The plastic storage and drainage plates is a type of green roof systems which are drained by a special molding plastic sheets. Water is retained within dimple on the upper sides of the drainage plates; excess water spills over the edges of the plates and is carried off the roof.

The storage and drainage board is made of high-density polyethylene (HDPE) or polypropylene (PP), which is heated and pressed to form a lightweight sheet that can create a drainage channel with a certain three-dimensional spatial support rigidity and can also store water. This type of sheet has two comprehensive functions of water storage and drainage, and has the characteristics of extremely high spatial rigidity and significantly better compressive resistance than similar products.





Garden Plastic Dimpled Drainage Membrane Board House Green Roof System 0


Technical Parameters


Plastic drainage board
item Specification
Tension at 10% elongation (N/100mm) ≥ 350
Maximum pulling force (N/100mm) ≥ 600
Elongation at break /% ≥ 25
Tear performance/N ≥ 100
Compression performance Maximum strength when compression rate is 20%/KPa ≥ 150
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Heat aging Tensile retention at 10% elongation≥ 80
Maximum tensile retention rate/(N/100mm) /% ≥ 90
Elongation at break retention rate /% ≥ 70
Maximum strength retention rate when the compression rate is 20% ≥ 90
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ 10



Manin features:

Water storage and drainage-Construction a drainage channel and water storage dimple with a certain three-dimensional spatial support.
Big load capacity- It is made of polymer materials, the anti-pression strength is more than 400kpa at most.

Heat insulation function- high-density polyethylene (HDPE) has good water resistance, heat insulation, high strength.
Water guiding function- the size of the gap between the protrusions of the drainage board determines the drainage capacity and the thickness of the air layer. Membrane and shell continuously form an independent space, liquid can flow inside.

Prevent puncture of plant roots- the HDPE is very strong can preven puncture of plant roots.



Product Application Range
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.



Garden Plastic Dimpled Drainage Membrane Board House Green Roof System 1


FAQ
1. What's your MOQ?
A: Our MOQ is usually 1000sqm per color.

2. What's your delivery time?
A: It's about 14 days after we received the deposit.

3. What's your payment terms?
A: TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or L/C at sight.


4.Can you produce the product according to customers' requirements?

A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
