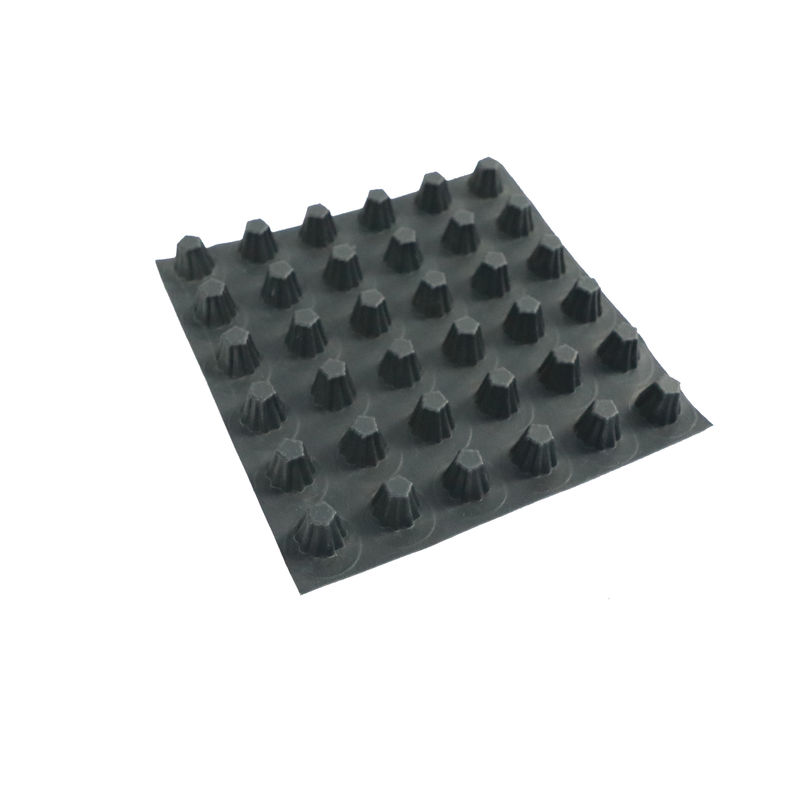

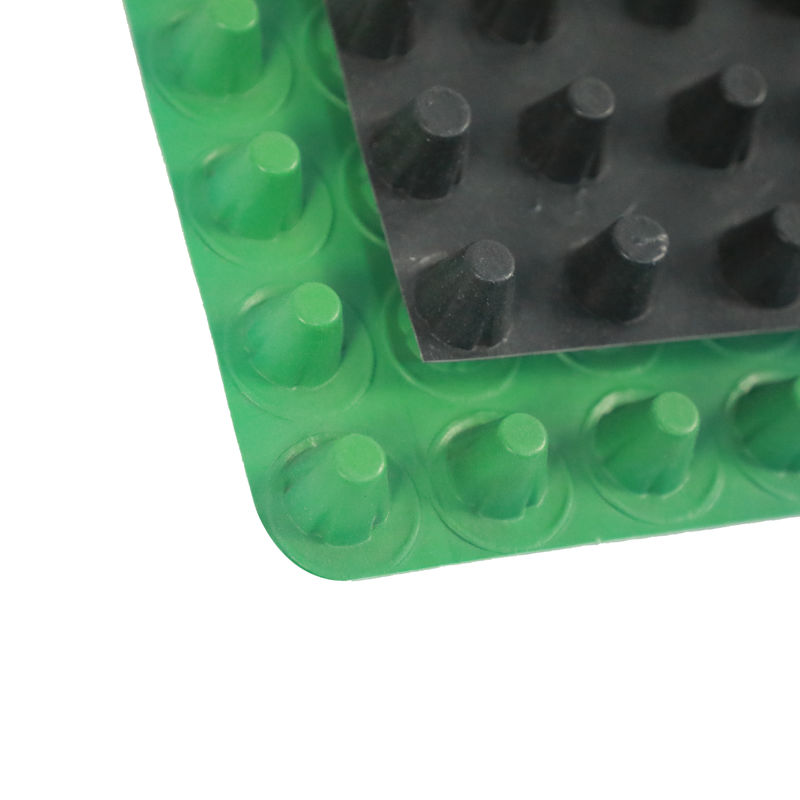

Green Roof Drainage Board Dimple Board Hdpe Dimple Board
HDPE Plastic Dimple Drain Board
Drainage Board is manufactured from High Density Polyethylene resins. Produced by extruding plastic sheet into dimple shape.These dimples,in spatial structure with certain height. Can resist long-term high pressure without deformation. On the top of the dimples, there is filtration geotextile to make sure the drainage channel ruing well without any block for any articles. For example,filling particles or concrete.
Technical parameter
| Plastic drainage board | ||
| item | Specification | |
| Tension at 10% elongation (N/100mm) ≥ | 350 | |
| Maximum pulling force (N/100mm) ≥ | 600 | |
| Elongation at break /% ≥ | 25 | |
| Tear performance/N ≥ | 100 | |
| Compression performance | Maximum strength when compression rate is 20%/KPa ≥ | 150 |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Heat aging | Tensile retention at 10% elongation≥ | 80 |
| Maximum tensile retention rate/(N/100mm) /% ≥ | 90 | |
| Elongation at break retention rate /% ≥ | 70 | |
| Maximum strength retention rate when the compression rate is 20% ≥ | 90 | |
| Extreme compression performance | No break | |
| Low temperature flexibility | -10℃ no cracks | |
| Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ | 10 | |
