Plastic 8mm Height Dimple Drainage Mat Board Waterproofing Material

Plastic 8mm Height Dimple Drainage Mat Board Waterproofing Material

8mm height dimple drainage mat

waterproofing dimple drainage mat

waterproofing dimple drainage board

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

Plastic Grainage Board

Contact Us

Request A Quote
Product Details
Dimple Height:
8mm-50mm
Product Name:
Drainage Cell
Material:
HDPE PP
Plastic Thickness:
0.8mm-1.5mm
Model Number:
Customer-made
Design Style:
Modern
Product Description

Plastic Roof Garden Water Storage Drainage Board

Product introduction

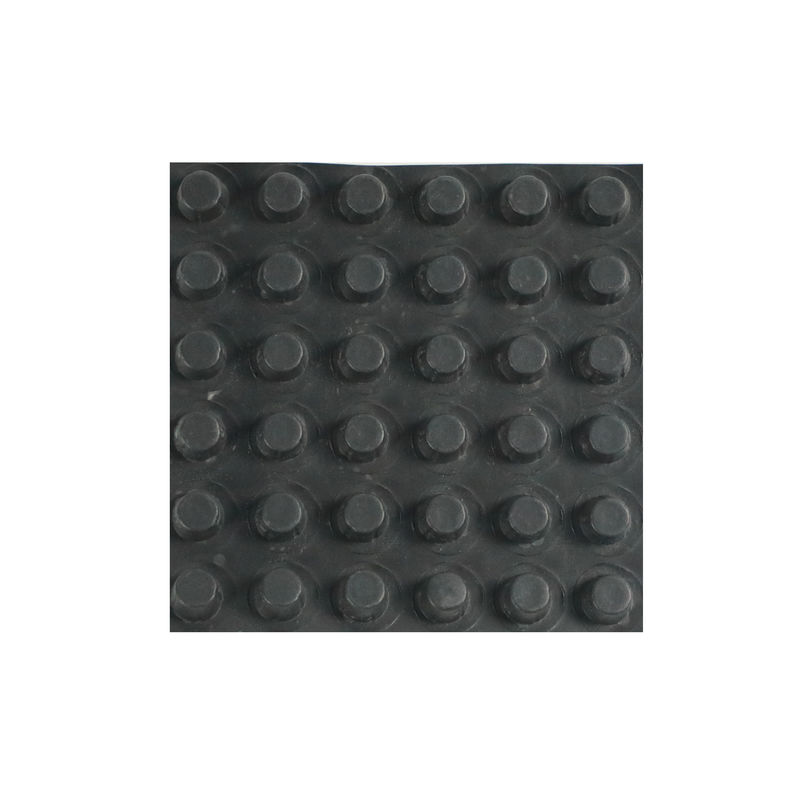

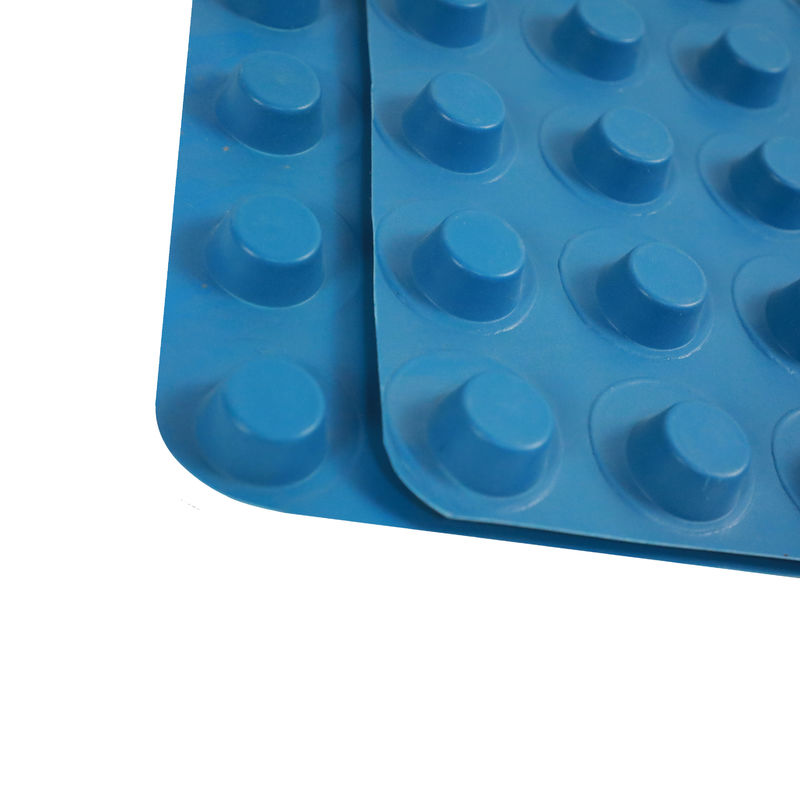

Drainage Board with dimple is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.





Technical parameter



Plastic drainage board
item Specification
Tension at 10% elongation (N/100mm) ≥ 350
Maximum pulling force (N/100mm) ≥ 600
Elongation at break /% ≥ 25
Tear performance/N ≥ 100
Compression performance Maximum strength when compression rate is 20%/KPa ≥ 150
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Heat aging Tensile retention at 10% elongation≥ 80
Maximum tensile retention rate/(N/100mm) /% ≥ 90
Elongation at break retention rate /% ≥ 70
Maximum strength retention rate when the compression rate is 20% ≥ 90
Extreme compression performance No break
Low temperature flexibility -10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥ 10





Feature

1. Drainage cell has the functions of building layer drainage, discharging soil infiltration water and storing part of infiltration water.
2. Drainage cell can store water and is conducive to the growth of vegetation.
3. Drainage cell has good compressive strength.
4. Convenient construction, simple maintenance and economic.
5. Drainage cell has Strong load resistance and durability.
6. Ensure that excess water can be quickly drained away.
7. Drainage cell can provide sufficient water and oxygen for plant growth.
8. Lightweight and strong roof insulation.
