Greening HDPE Drainage Board Dimple Membrane Drainage Mat

Greening HDPE Drainage Board Dimple Membrane Drainage Mat

Greening HDPE Drainage Board

Geo HDPE Drainage Board

Dimple Membrane Drainage Mat

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Model Number:

Dimpled Drainage Membrane

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Product Name:
Drainage Board
Color:

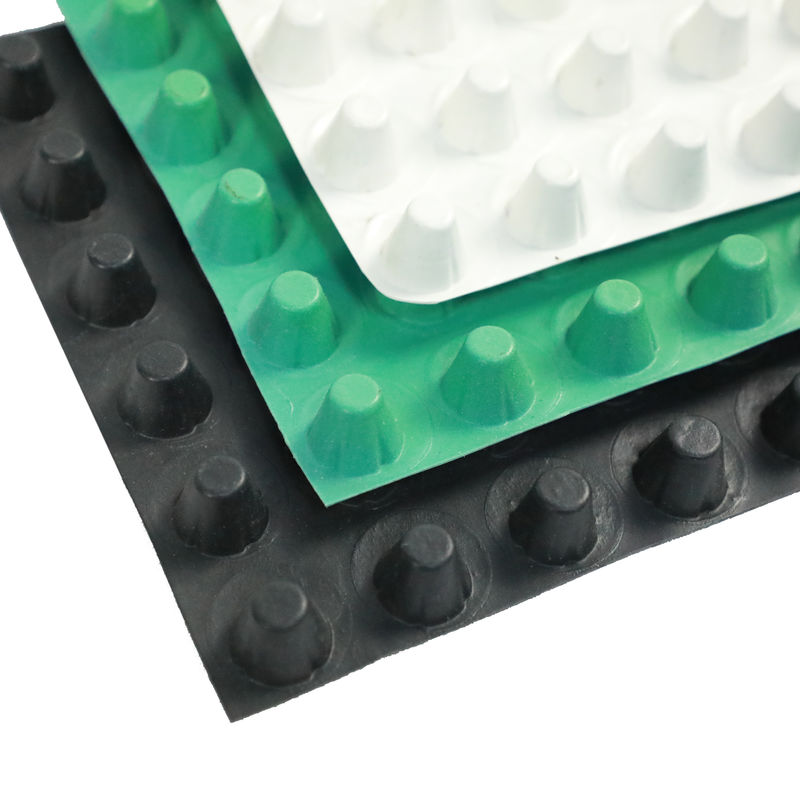

Black White Green
Certificate:
ISO9001
MOQ:
1000 Square Meter
Application:
Park Road Dam Layer
Product Description

HDPE Drainage Board Dimple Membrane Drain Mat



Product introduction

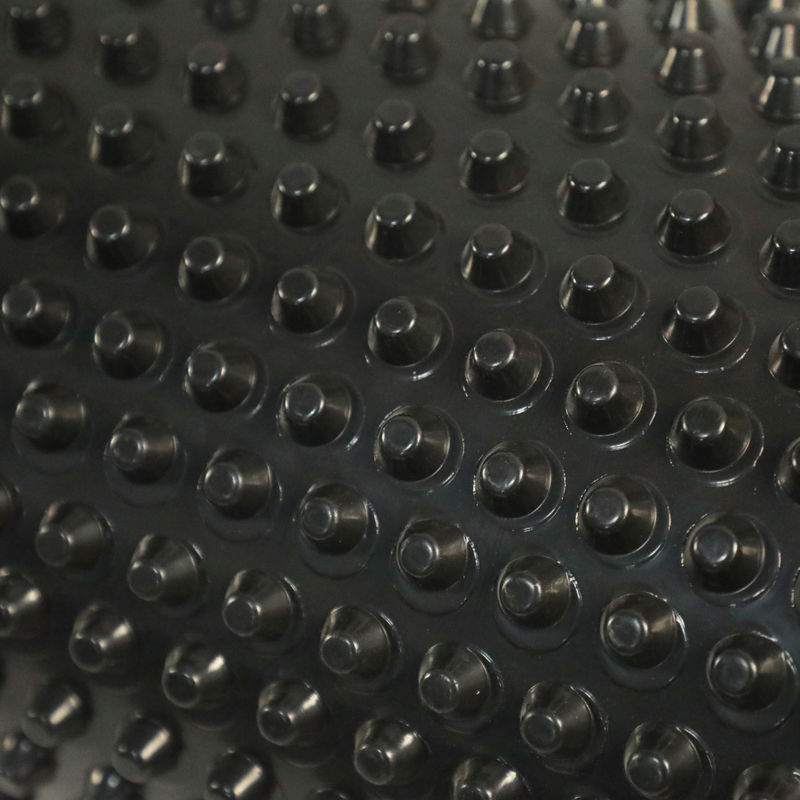

Dimple Drain board is made by 100% pure HDPE, the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.





Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Application Range
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
