0.8mm - 2.0mm Plastic Dimpled Drainage Membrane Sheet HDPE Drain Board Membrane

0.8mm - 2.0mm Plastic Dimpled Drainage Membrane Sheet HDPE Drain Board Membrane

Plastic Dimpled Drainage Membrane Sheet

HDPE Drain Board Membrane

0.8mm Dimpled Drainage Membrane

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Product Name:
Drainage Board
Color:
Black White Green
Height:
0.8-3mm
Thickness:
0.8mm-2.0mm
Application:
Park Road Dam Layer
Product Description

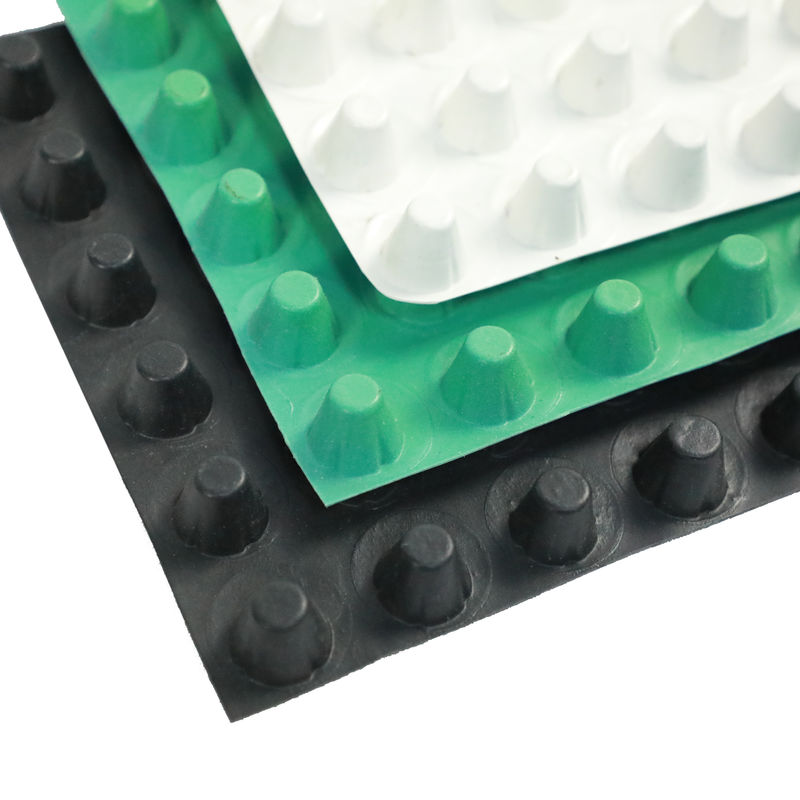

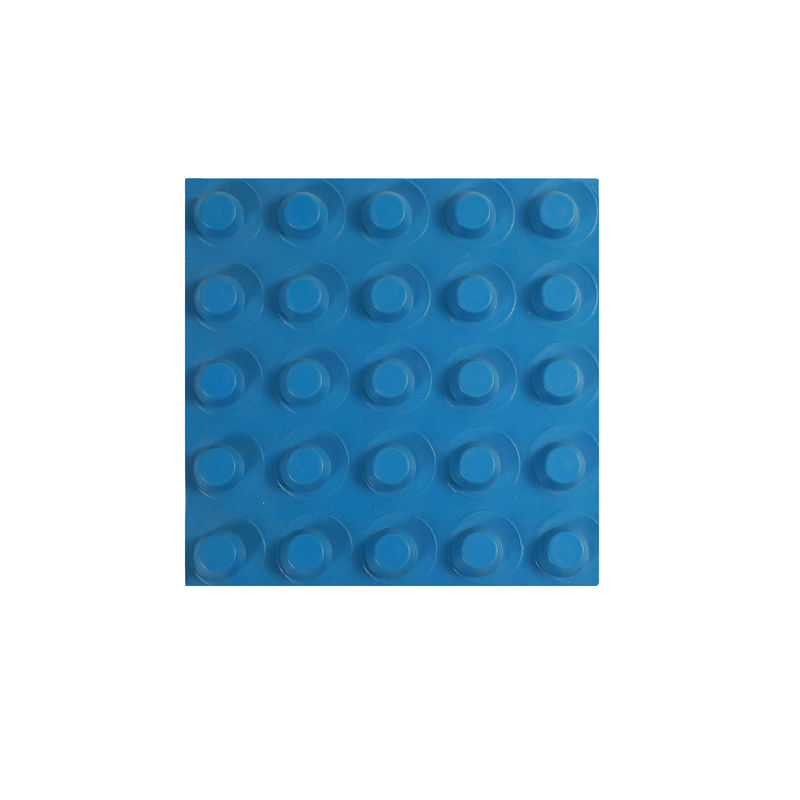

Drain board Dimple plastic drainage sheet HDPE drain membrane



Product introduction

Dimple Drain board is made by 100% pure HDPE, the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.





Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
