Waterproof Dimple Membrane Drain Mat Plastic Sheet HDPE Drainage Board Dimple Membrane

Waterproof Dimple Membrane Drain Mat Plastic Sheet HDPE Drainage Board Dimple Membrane

HDPE Drainage Board Dimple Membrane

Waterproof Dimple Membrane

Plastic Dimple Drainage Mat

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Product Name:
Drainage Board
Size:
500*500*20mm
Height:
0.8-3mm
Design Style:
Modern
Application:
Park Road Dam Layer
Product Description

Waterproof Dimple Membrane Drain Mat Plastic Sheet HDPE Drainage Board dimple membrane



Product introduction

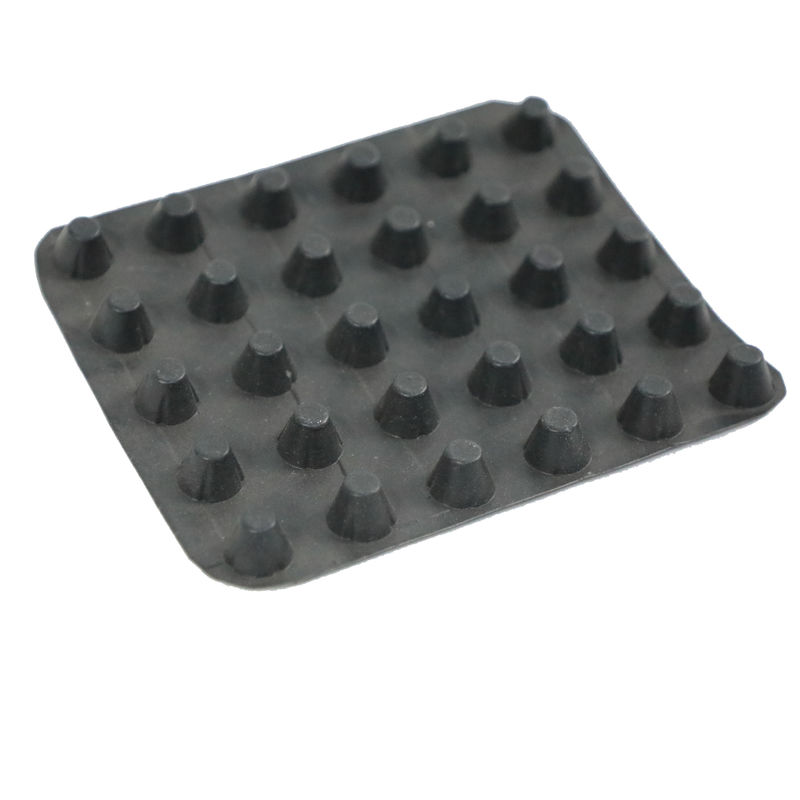

Drain Board is made from HIPS or HDPE, and is formed as dimple shape. There are filtration geotextiles on the top of dimples to prevent silt passing through the drain board so that the drainage system will not be obstructed. Traditional drainage method is using the cobblestones or gravels as the filter layer to drain the water to the designated place. Using drain board to replace cobblestone filter layer is more economical and practical, also can reduce the load of the construction.



Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Feature
1. Convenient construction, easy maintenance and economy.
2.Strong resistance to load and durability.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, the roof heat insulation function strong.
