Plastic Waterproofing Dimpled Membrane Drainage Board For Park Road Dam Layer

Plastic Waterproofing Dimpled Membrane Drainage Board For Park Road Dam Layer

Plastic HDPE Dimpled Membrane

Dimpled Membrane Drainage Board

Park Road Dam Layer Dimpled Membrane

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Product Name:
Drainage Board
Length:
10m/20m/30m
Matrial:
HDPE
Width:
1-3m
Application:
Park Road Dam Layer
Product Description

Plastic Waterproofing Dimpled Membrane Drainage Board



Product introduction

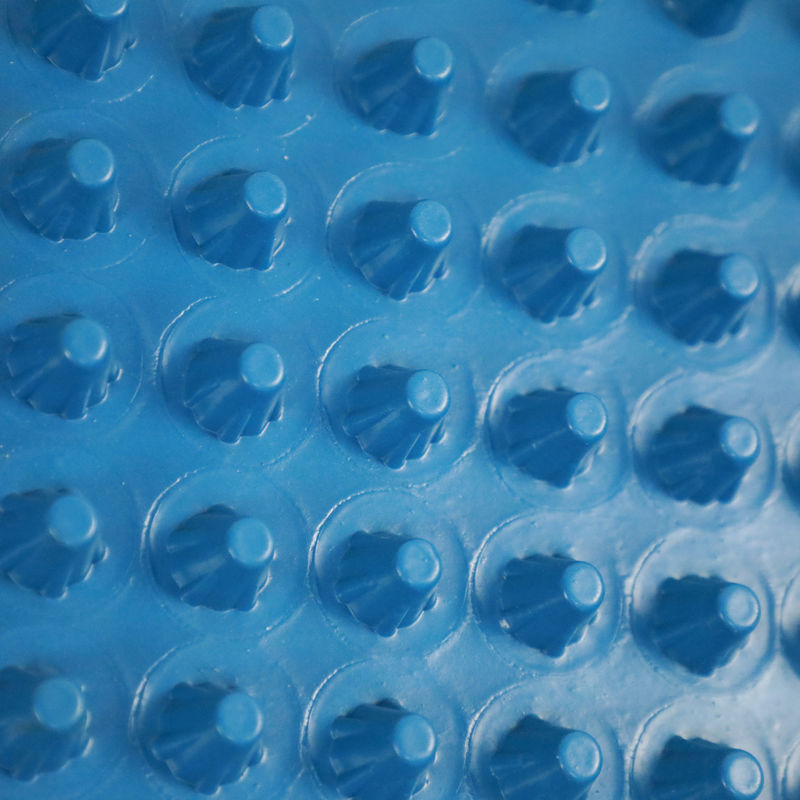

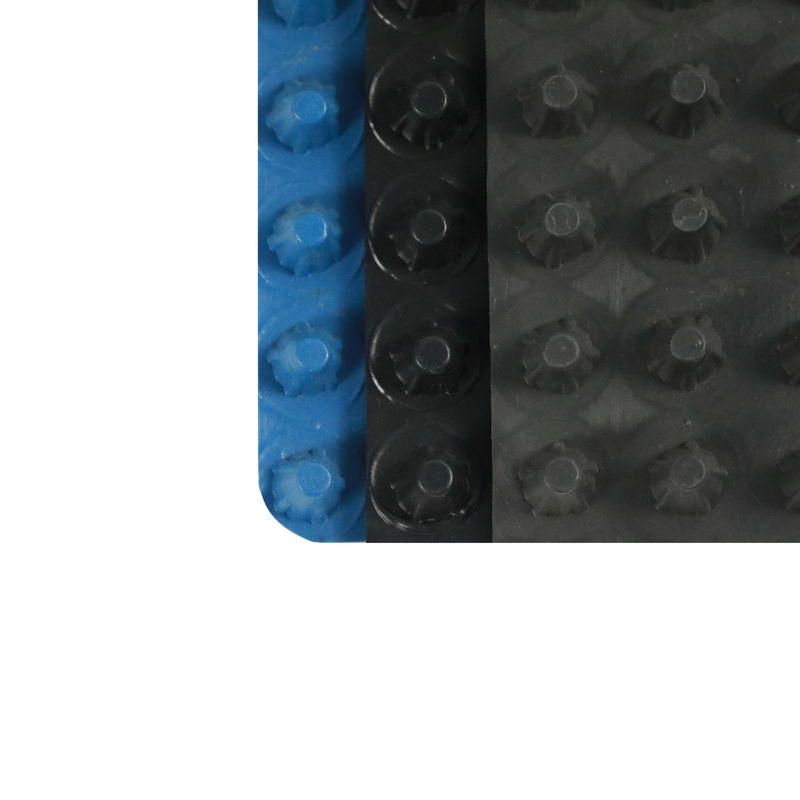

Drainage board is manufactured from High Density Polyethylene resins. Produced by extruding plastic sheet into dimple shape.These dimples,in spatial structure with certain height. Can resist long-term high pressure without deformation. On the top of the dimples, there is filtration geotextile to make sure the drainage channel ruing well without any block for any articles. For example,filling particles or concrete.




Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Application Range
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
