Waterproofing HDPE Dimpled Drainage Membrane 0.2 - 2.0mm Thickness

Waterproofing HDPE Dimpled Drainage Membrane 0.2 - 2.0mm Thickness

Dimpled Drainage Membrane 0.2mm Thickness

HDPE Dimpled Drainage Membrane

Waterproofing HDPE Dimpled Membrane

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Height:
30mm
Length:
10m/20m/30m
Thickness:
0.2-2.0mm
Color:
Black, White
Function:
Drainage
Product Description

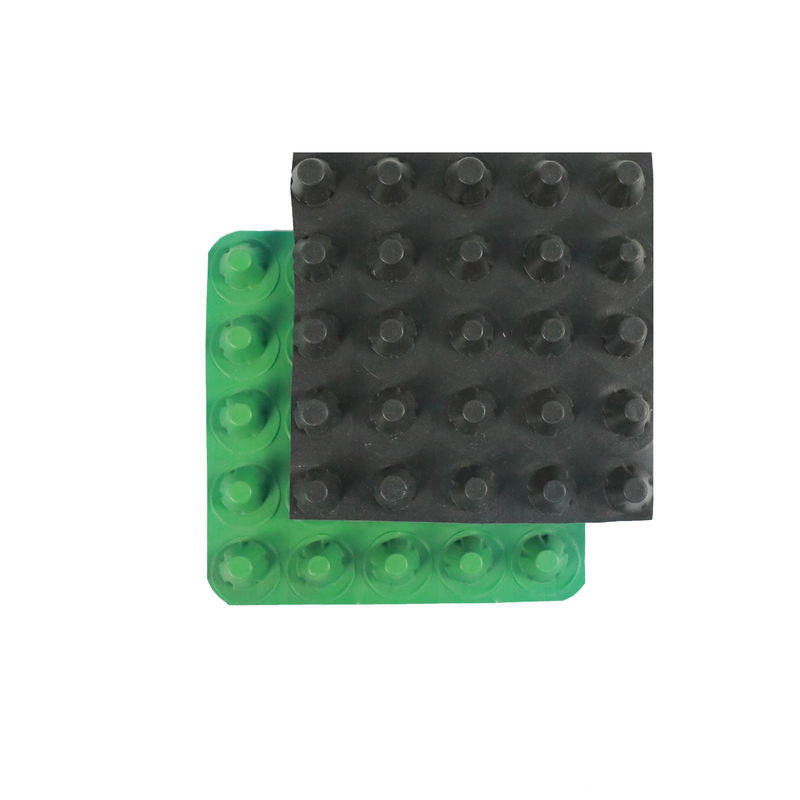

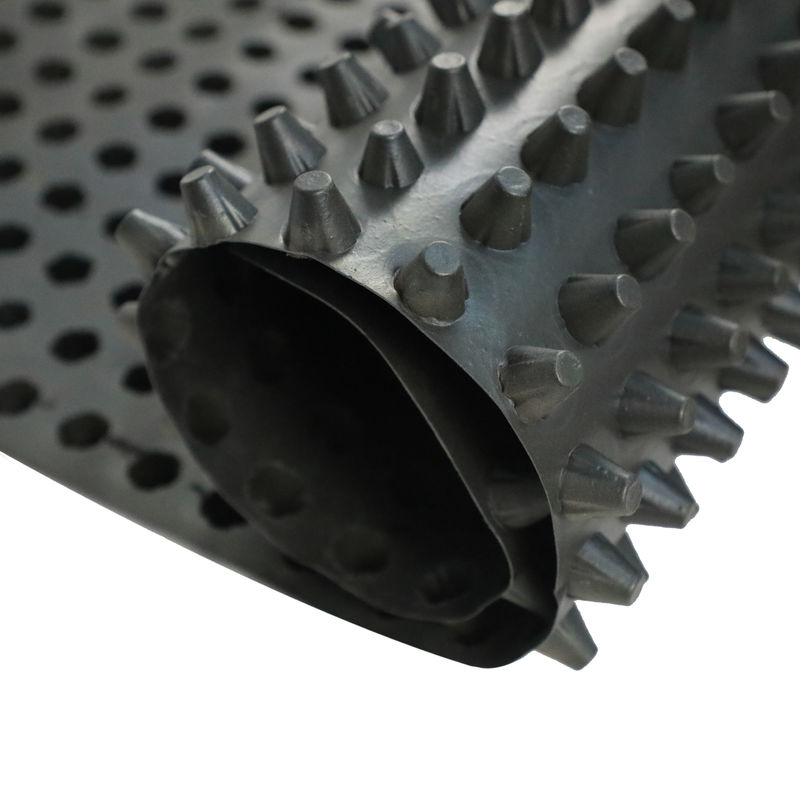

waterproofing HDPE drainage dimpled membrane



Product introduction

HDPE dimple drain sheet/ drain matting/ drain board/ cavity drains/ drainage membrane for waterproofing of railway tunnels, road base, foundation floor, building basement top, retaining wall and roof drainage. It is produced by railway standard hdpe material, virgin material. Plastic HDPE dimple drainage board is the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness,liquid, gas can flow excreted within its plate.




Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Application Range
1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage
control and heat insulation layer, etc.
4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
