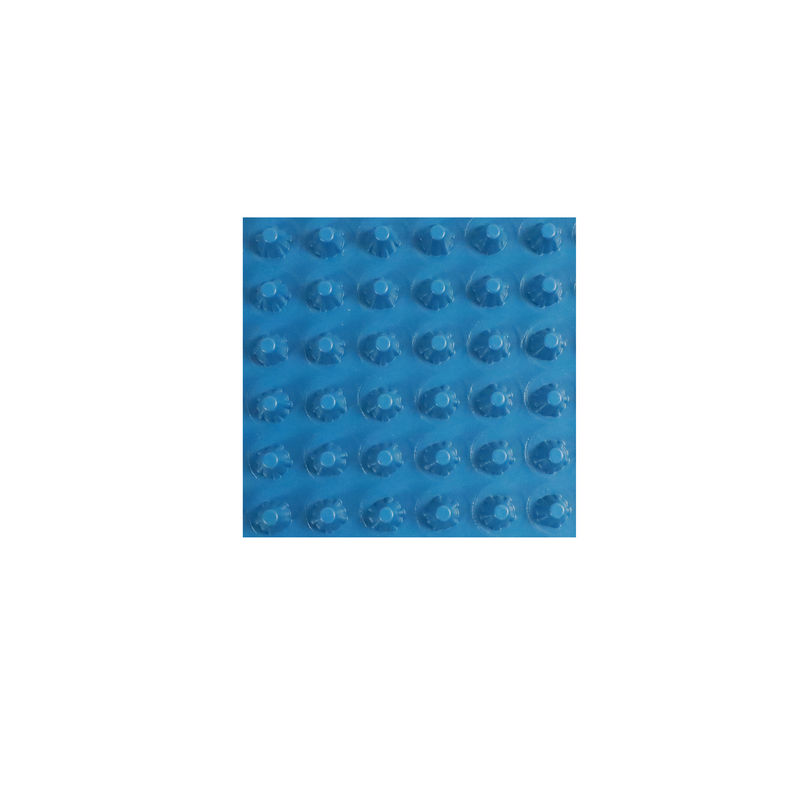

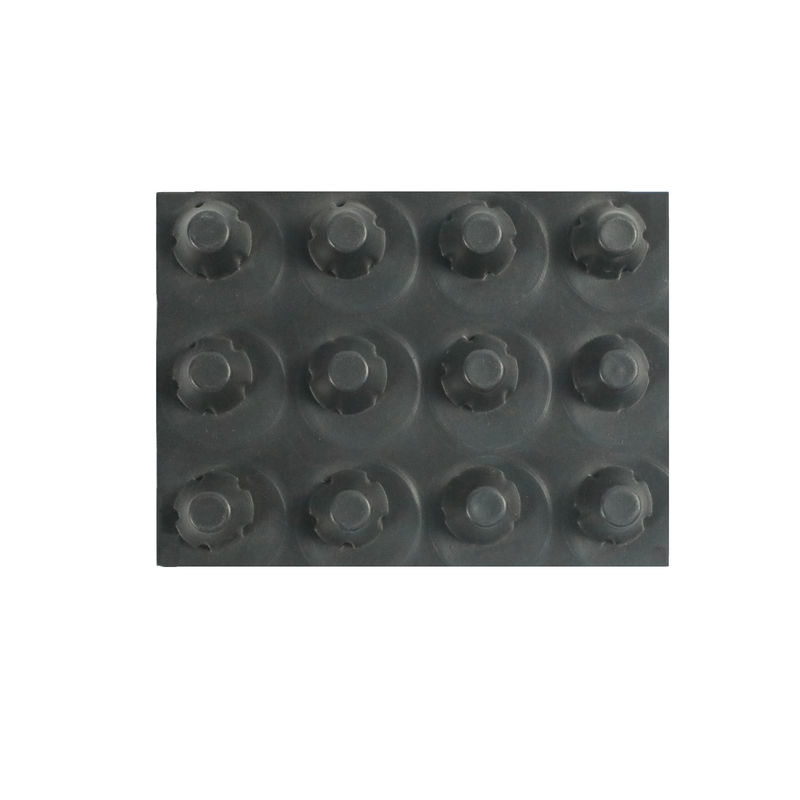

Waterproof Plastic Dimpled Drainage Membrane For Roof Greening

Waterproof Plastic Dimpled Drainage Membrane For Roof Greening

Roof Dimple Board Waterproofing

Greening Plastic Dimpled Drainage Membrane

30m Dimpled Drainage Membrane

Place of Origin:

China

Brand Name:

zhongloo

Certification:

ISO9001

Contact Us

Request A Quote
Product Details
Model Number:
ZL-PSB
Keyword:
Drainage Board
Length:
10m/20m/30m
Thickness:
0.2-2.0mm
Material:
HDPE
Usage:
Roof, Garden
Product Description

Roof Waterproof Membrane Greening Plastic Dimple Drainage Board Drain Sheet



Product introduction

Drainage cell is the lightweight three dimensional geocomposite with flat back which is pressed against an underground structure used for subsurface water management method.

Drainage cell is lightweight, easy to use and cost effective when compared to traditional drainage methods, and it is the most advanced and versatile geo-composite product suitable for all your horizontal and vertical drainage applications such as roof garden drainage, landscape, terraces and patios under pavers, subterranean building protection, etc.




Technical parameter



Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10



Product Feature

  • High Compressive strength
  • Eco-friendly, waterproof polypropylene material
  • Lightweight and easily transportable
  • Thermal regulation
  • Low cost
  • Quick and easy to install
