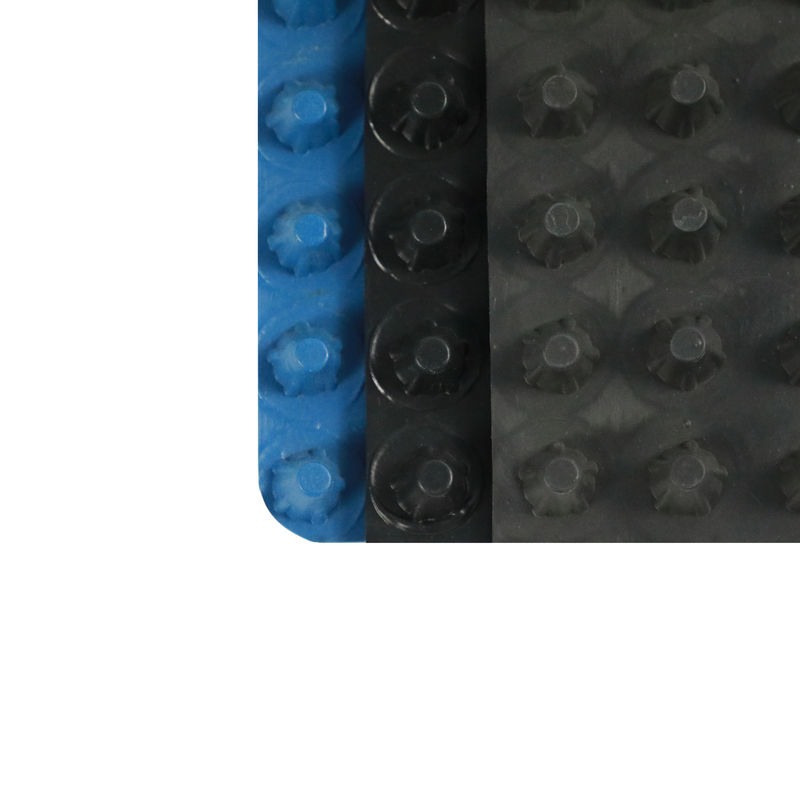

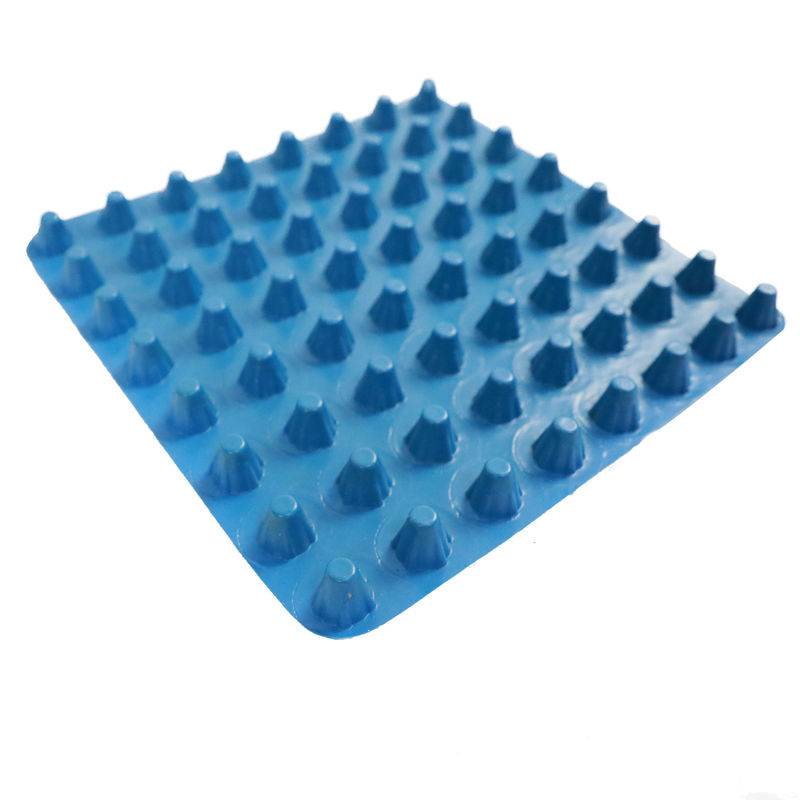

20mm HDPE Dimple Drain Sheet For Roof Garden Retaining Wall Construction

20mm HDPE Dimple Drain Sheet For Roof Garden Retaining Wall Construction

Retaining Wall Dimpled Drainage Membrane

Roof Garden Dimple Drain Sheet

20mm Dimple Drain Sheet

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

PSB

Contact Us

Request A Quote
Product Details
Product Name:
Drainage Board
Material:
HDPE
Property:
High Tear Strength
Color:
Black Green
Height:
10~50mm
Usage:
Construction
Product Description

20mm Dimple Drain Sheet Roof Garden Retaining Wall

Product Deacription

The bottom plate of the drainage board is made of HIPS and HDPE, which can resist long-term high pressure. There will be no deformation. This long-term compression resistance can not only withstand the weight and load of the concrete floor, but also withstand the external pressure and impact force that cannot be avoided during the construction period, such as vehicles, workers and concrete pouring impulse. Keep the bottom plate out of deformation for a long time, so as to maintain the original displacement. The filter layer soil fabric on the bottom plate is used to ensure that the drainage channel is not blocked by foreign matter, such as backfill soil particles or concrete.

Technical specification

Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10





Application
1. Greening Project
The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
2. Municipal Engineering
Airport, road embankment, subway, tunnel, landfill, etc
3. Construction
The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat
insulation layer, etc
