Honeycomb Plastic Water Filter Drainage Board For Artificial Grass

HDPE Plastic Drainage Sheet Roll

Honeycomb Plastic Water Filter Board

Artificial Grass Plastic Drainage Board

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

PSB

Request A Quote

Honeycomb Plastic Water Filter Drainage Board For Artificial Grass

Product Details

Product Name:

Drainage Board

Material:

HDPE

Weight:

650g/m2----1800g/m2

Color:

Black Green

Package:

In Roll

Certificate:

ISO9001

Dimpled Drainage Membrane Greening Project PVC Perforated Dimple Drainage Board Groundwork Water Solution Water Solution

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

HDPE Drainage Boards For Construction Projects

Get Best Price

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

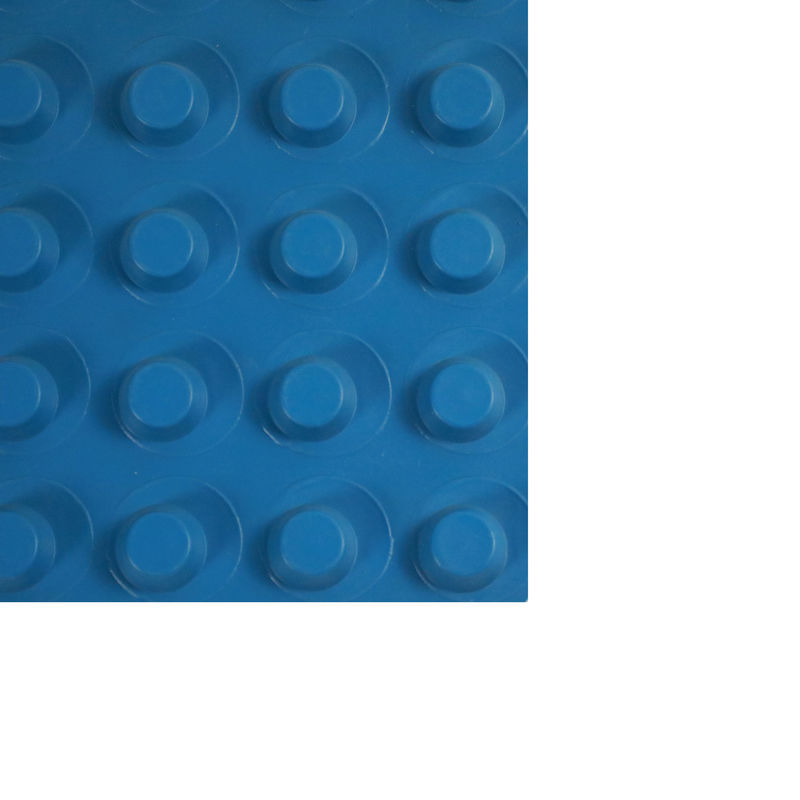

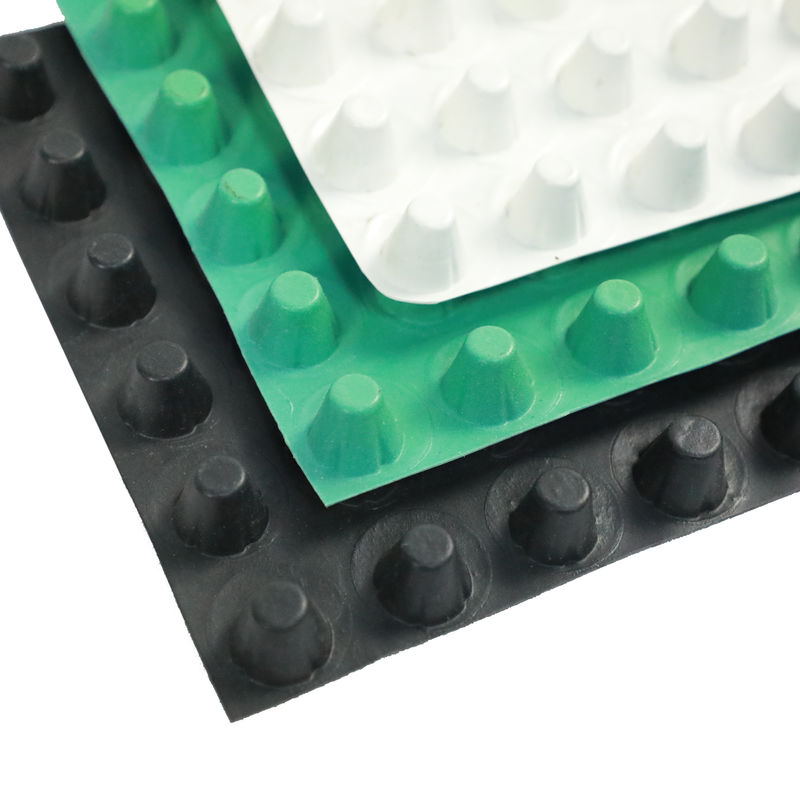

Honeycomb Plastic Water FilterDrainage board for artificial grass

Product Deacription

Drainage Board with holes is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.

Technical specification

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Main Features

(1)Waterproofing and drainage : from a channel,which water and gas can go through;
(2)Sound insulation and vibration isolation;
(3)Chemincal resistance,resist to plants' root;
(4)Easy to construction;
(5)Long life time.
