8 - 30mm HDPE Plastic Drainage Board Sheet For Roof Garden Green

HDPE Plastic Drainage Board

Roof Garden Dimpled Drainage Membrane

HDPE Plastic Drainage Sheet

Place of Origin:

China

Brand Name:

zhongloo

Model Number:

PSB

Request A Quote

8 - 30mm HDPE Plastic Drainage Board Sheet For Roof Garden Green

Product Details

Product Name:

Drainage Board

Material:

HDPE

Property:

High Tear Strength

Color:

Black Green

Thickness:

8-30mm

Application:

Roof Water Drainage

Dimpled Drainage Membrane Greening Project PVC Perforated Dimple Drainage Board Groundwork Water Solution Water Solution

Get Best Price

HDPE Drainage Board Dimple Membrane Drain Mat

Get Best Price

HDPE Drainage Boards For Construction Projects

Get Best Price

HDPE Drainage Board Dimple Sheet For Waterproofing In Roof Garden

Get Best Price

86--18095658976

angela@zhongloo.com

86-551- 65540070

Contact Now

Product Description

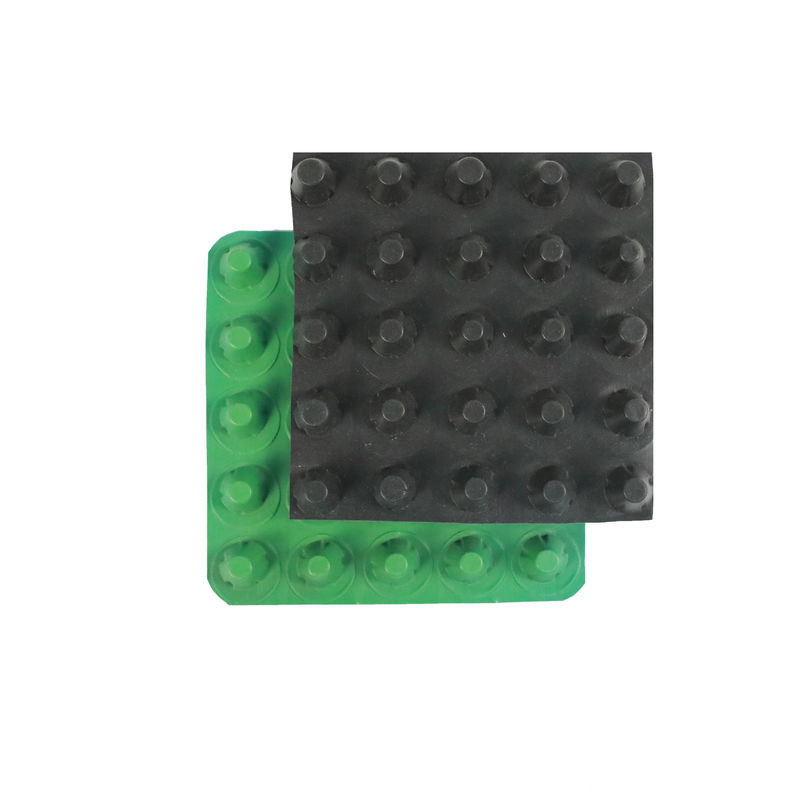

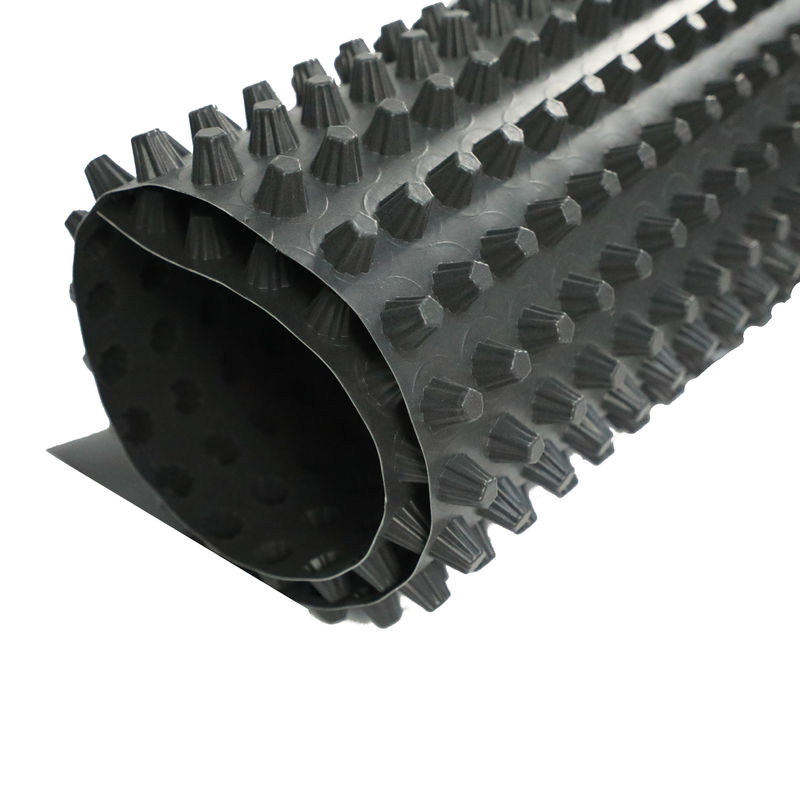

Hdpe plastic drainage boardsheet for roof garden green

Product Deacription

Drainage board is made of HDPE with high impact resistance and pressure resistance which can resist long-term high pressure, and will not generate deformation. The long-term pressure resistance not only can resist weight of concrete bottom plate and its load, but also can bear unavoidable outside pressure and impact force during construction, for example, vehicle, worker stepping, concrete pouring impact force, etc. It can keep bottom plate undeformed for long term, so original drainage quantity can be kept.Application of filter layer earthwork fabric on bottom plate is to ensure drainage channel is not blocked by foreign object, for example, backfilling particle or concrete.

Technical specification

Plastic drainage board
item		Specification
Tension at 10% elongation (N/100mm) ≥		350
Maximum pulling force (N/100mm) ≥		600
Elongation at break /% ≥		25
Tear performance/N ≥		100
Compression performance	Maximum strength when compression rate is 20%/KPa ≥	150
	Extreme compression performance	No break
Low temperature flexibility		-10℃ no cracks
Heat aging	Tensile retention at 10% elongation≥	80
	Maximum tensile retention rate/(N/100mm) /% ≥	90
	Elongation at break retention rate /% ≥	70
	Maximum strength retention rate when the compression rate is 20% ≥	90
	Extreme compression performance	No break
	Low temperature flexibility	-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥		10

Application

1. Greening Project
The garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc
2. Municipal Engineering

Airport, road embankment, subway, tunnel, landfill, etc

3. Construction
The upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat
insulation layer, etc
