Height 500x500mm Water Storage and Drainage Board For Green Roof

Height 500x500mm Water Storage and Drainage Board For Green Roof

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Storage And Drainage Board
Water Storage:
Water Flow:
Anti-pression Strength:
Urban Landscape Engineering
Product Description

Height 500x500mm Water Storage and Drainage Board For Green Roof


Product Description

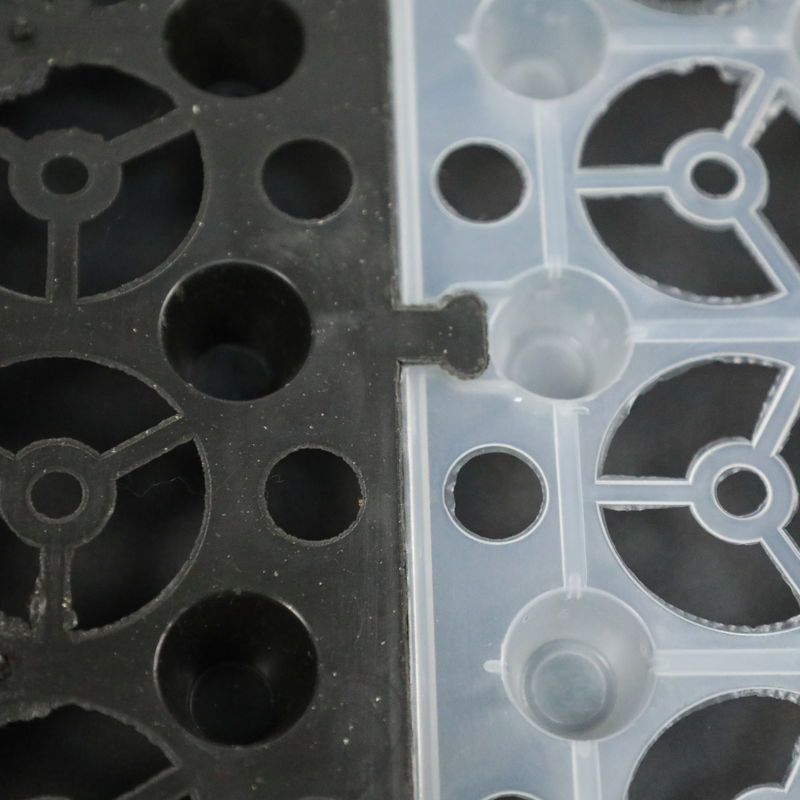

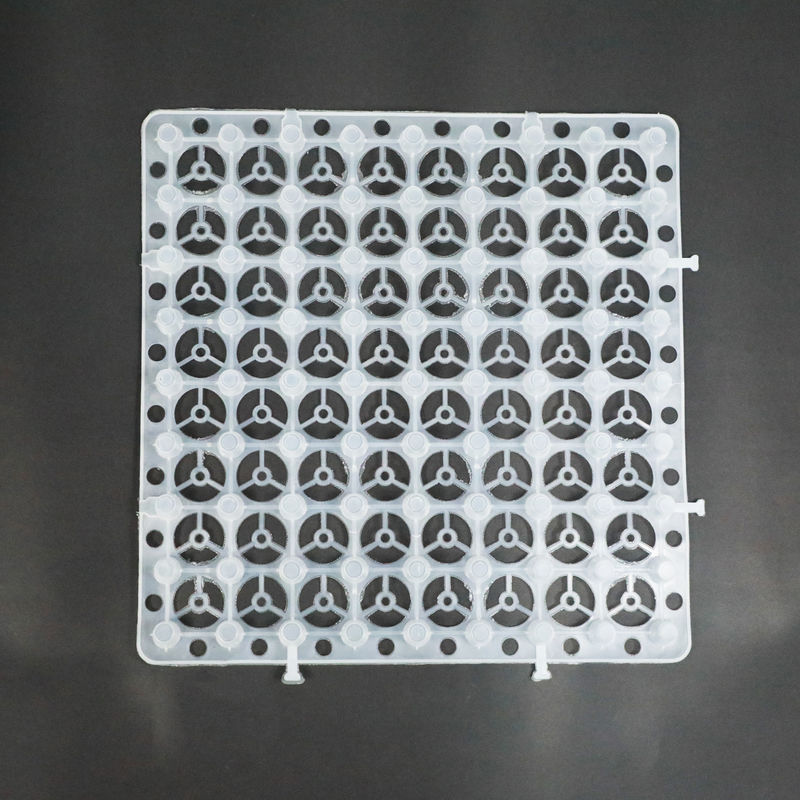

Storage and drainage board is made of polyethylene plastic injection molding. It is a new drainage material which integrates drainage and storage functions. It also has many functions such as water storage, drainage, air permeability, heat preservation and insulation, root prickling (preventing plant roots from destroying concrete structures) and so on.




Product name water storage and drainage board
Material HDPE, PP
Size 500x500mm
Height 20,25,30,40,50mm
Color black, green, white
Water flow 10-22cm3*s
Water storage 3.8-4.7L/sqm
Anti-pression strength 300-400kpa



Manin features:

√ Water storage and drainage-Construction a drainage channel and water storage dimple with a certain three-dimensional spatial support.
√ Big load capacity- It is made of polymer materials, the anti-pression strength is more than 400kpa at most.

√ Heat insulation function- high-density polyethylene (HDPE) has good water resistance, heat insulation, high strength.
√ Water guiding function- the size of the gap between the protrusions of the drainage board determines the drainage capacity and the thickness of the air layer. Membrane and shell continuously form an independent space, liquid can flow inside.

√ Prevent puncture of plant roots- the HDPE is very strong can preven puncture of plant roots.
